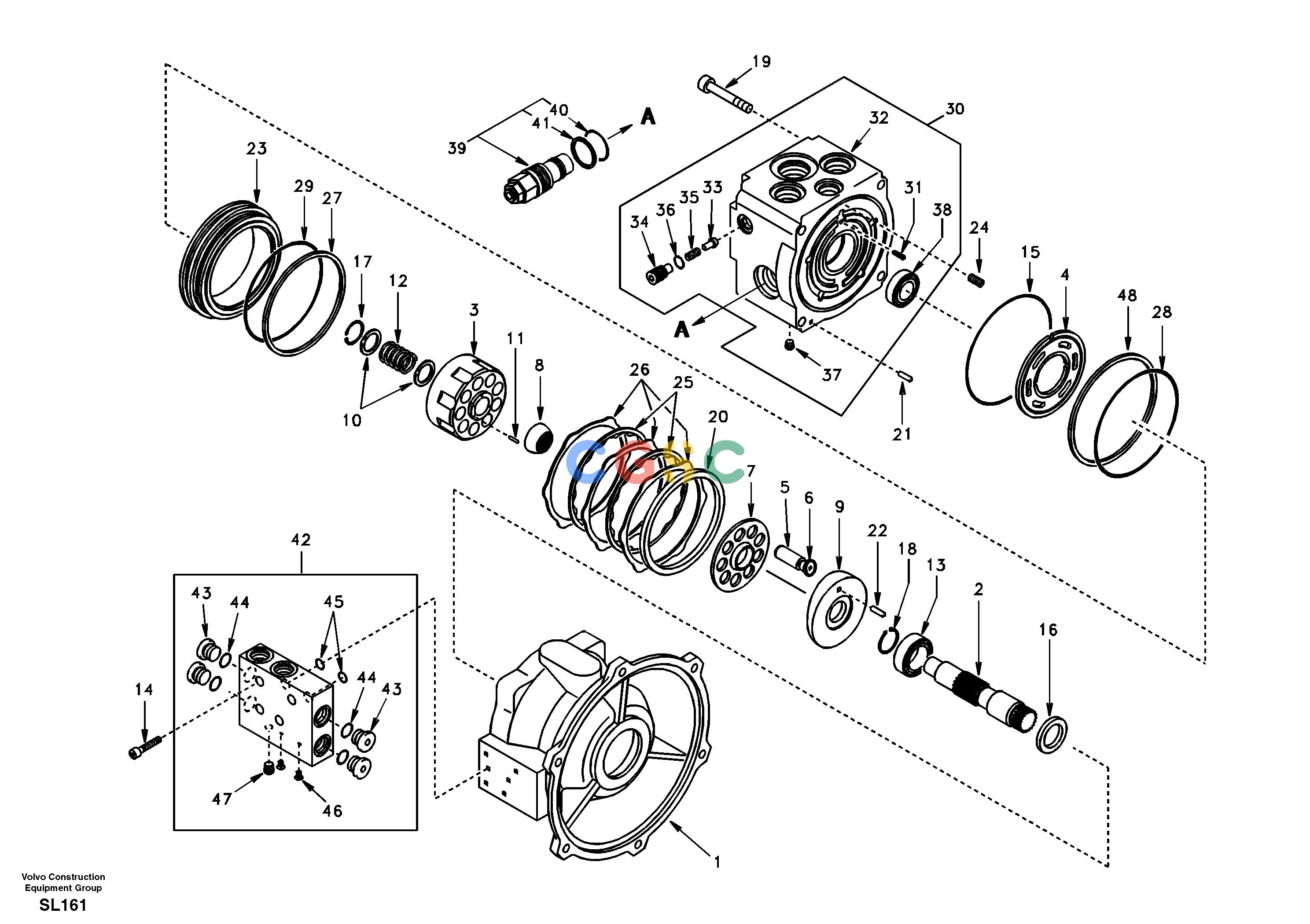

沃尔沃零件查询EC55 Swing motorSER NO 5001-AL99E001 STD-AL99E002 OPTNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
405 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
SA1155-30080
|
[1] |
Swing Motor
|
|
| 1. |
SA8230-31400
|
[1] |
Body
|
|
| 2. |
SA8230-31370
|
[1] |
Shaft
|
|
| 3. |
SA8230-31700
|
[1] |
Barrel
|
|
| 4. |
SA8230-31630
|
[1] |
Plate
|
|
| 5. |
SA8230-31650
|
[9] |
Piston
|
|
| 6. |
SA8230-31880
|
[9] |
Track Shoe
|
|
| 7. |
SA8230-31900
|
[1] |
Cage
|
|
| 8. |
SA8230-31910
|
[1] |
Cage
|
|
| 9. |
SA8230-31660
|
[1] |
Plate
|
|
| 10. |
SA8230-31640
|
[2] |
Retainer
|
|
| 11. |
SA8230-31890
|
[3] |
Pin
|
|
| 12. |
SA8230-31670
|
[1] |
Spring
|
|
| 13. |
SA8230-00020
|
[1] |
Bearing
|
|
| 14. |
SA8230-32030
|
[4] |
Screw
|
|
| 15. |
VOE990603
|
[1] |
O-ring
|
|
| 16. |
SA8230-32000
|
[1] |
Seal
|
|
| 17. |
SA8210-06420
|
[1] |
Ring
|
|
| 18. |
SA8230-31930
|
[1] |
Ring
|
|
| 19. |
SA8240-04430
|
[4] |
Screw
|
|
| 20. |
SA8230-31620
|
[1] |
Spacer
|
|
| 21. |
SA8230-32170
|
[1] |
Pin
|
|
| 22. |
SA8230-26680
|
[1] |
Pin
|
|
| 23. |
SA8230-31390
|
[1] |
Piston
|
|
| 24. |
SA8230-31380
|
[14] |
Spring
|
|
| 25. |
SA8230-31680
|
[2] |
Plate
|
|
| 26. |
SA8230-31690
|
[3] |
Plate
|
|
| 27. |
VOE990599
|
[1] |
O-ring
|
|
| 28. |
VOE990601
|
[1] |
O-ring
|
|
| 29. |
SA9566-41100
|
[1] |
Back-up ring
|
|
| 30. |
SA8230-25330
|
[1] |
Body
|
|
| 31. |
SA8230-31860
|
[1] |
Spring pin
|
|
| 32. |
SA8230-31410
|
[1] |
Body
|
|
| 33. |
SA8230-31710
|
[2] |
Check valve
|
|
| 34. |
SA8230-31720
|
[2] |
Plug
|
|
| 35. |
SA8230-31730
|
[2] |
Spring
|
|
| 36. |
VOE983502
|
[2] |
O-ring
|
|
| 37. |
SA8230-27190
|
[5] |
Plug
|
|
| 38. |
SA8230-00010
|
[1] |
Bearing
|
|
| 39. |
SA8230-28230
|
[1] |
Relief valve
|
|
| 40. |
VOE983525
|
[1] |
O-ring
|
|
| 41. |
SA9566-10260
|
[1] |
Back-up ring
|
|
| 42. |
SA8230-28220
|
[1] |
Valve
|
|
| 43. |
VOE15092722
|
[4] |
Plug
|
|
| 44. |
VOE983502
|
[4] |
O-ring
|
|
| 45. |
VOE983494
|
[2] |
O-ring
|
|
| 46. |
SA8230-06530
|
[2] |
Plug
|
|
| 47. |
SA8230-27200
|
[1] |
Plug
|
|
| 48. |
SA9566-41250
|
[1] |
Back-up ring
|
|
| 100. |
SA8148-14080
|
[1] |
Sealing Kit
|
KIT
|
