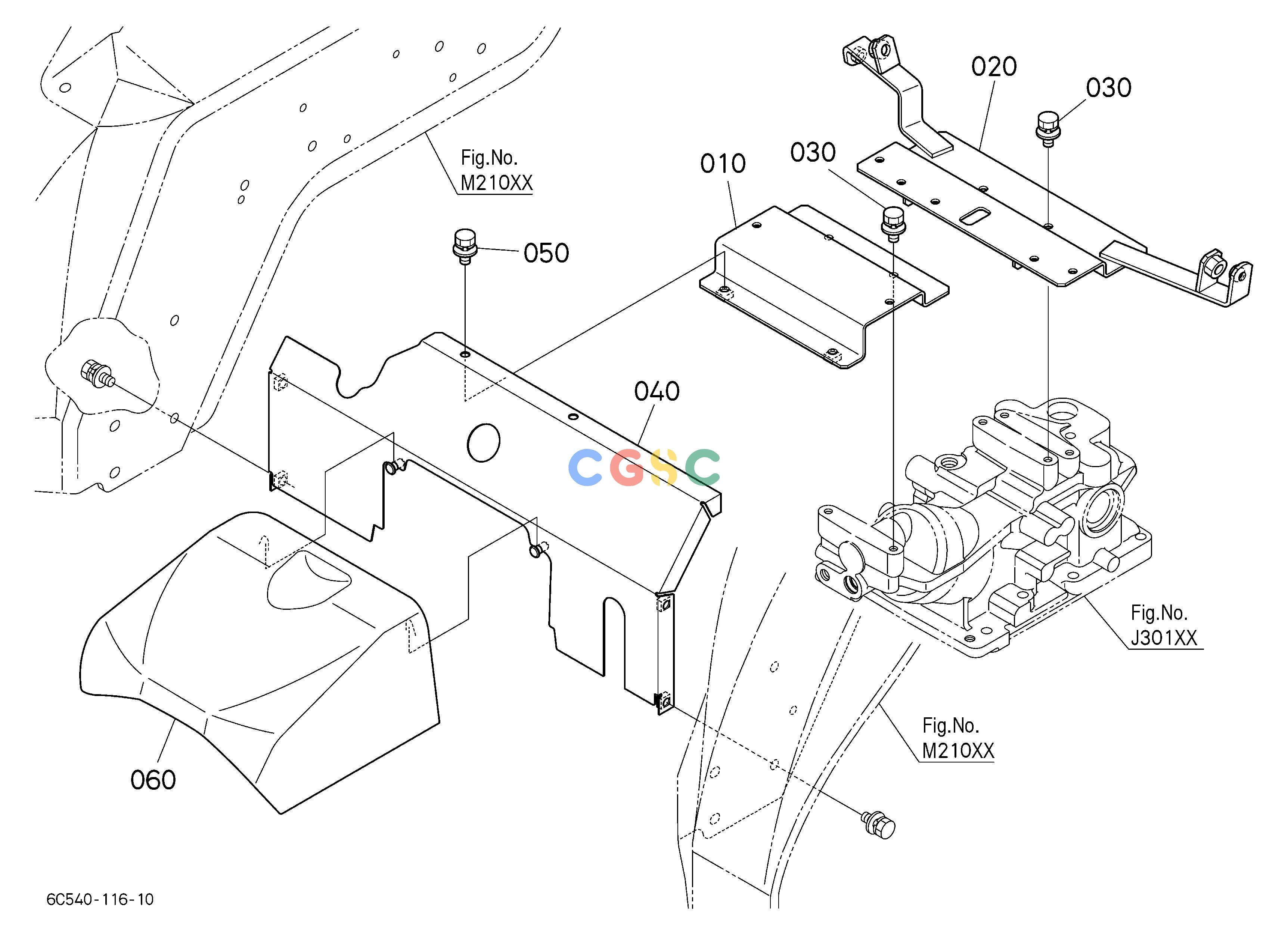

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 6C54051380 | [1] | STAY(SEAT,FRONT) | 2.1406(lbs); 0.973 |
| 020. | 6C54051390 | [1] | STAY,REAR | 3.1900(lbs); 1.450 |
| 030. | 0112550820 | [4] | BOLT,W SEMS | 0.0308(lbs); 0.014 |
| 040. | 6C54051372 | [1] | COVER(SEAT,FRONT1) | 2.8600(lbs); 1.300 |
| 050. | 0112550820 | [2] | BOLT,W SEMS | 0.0308(lbs); 0.014 |
| 060. | 6C54051350 | [1] | COVER(FRONT) | 0.5720(lbs); 0.260 |
