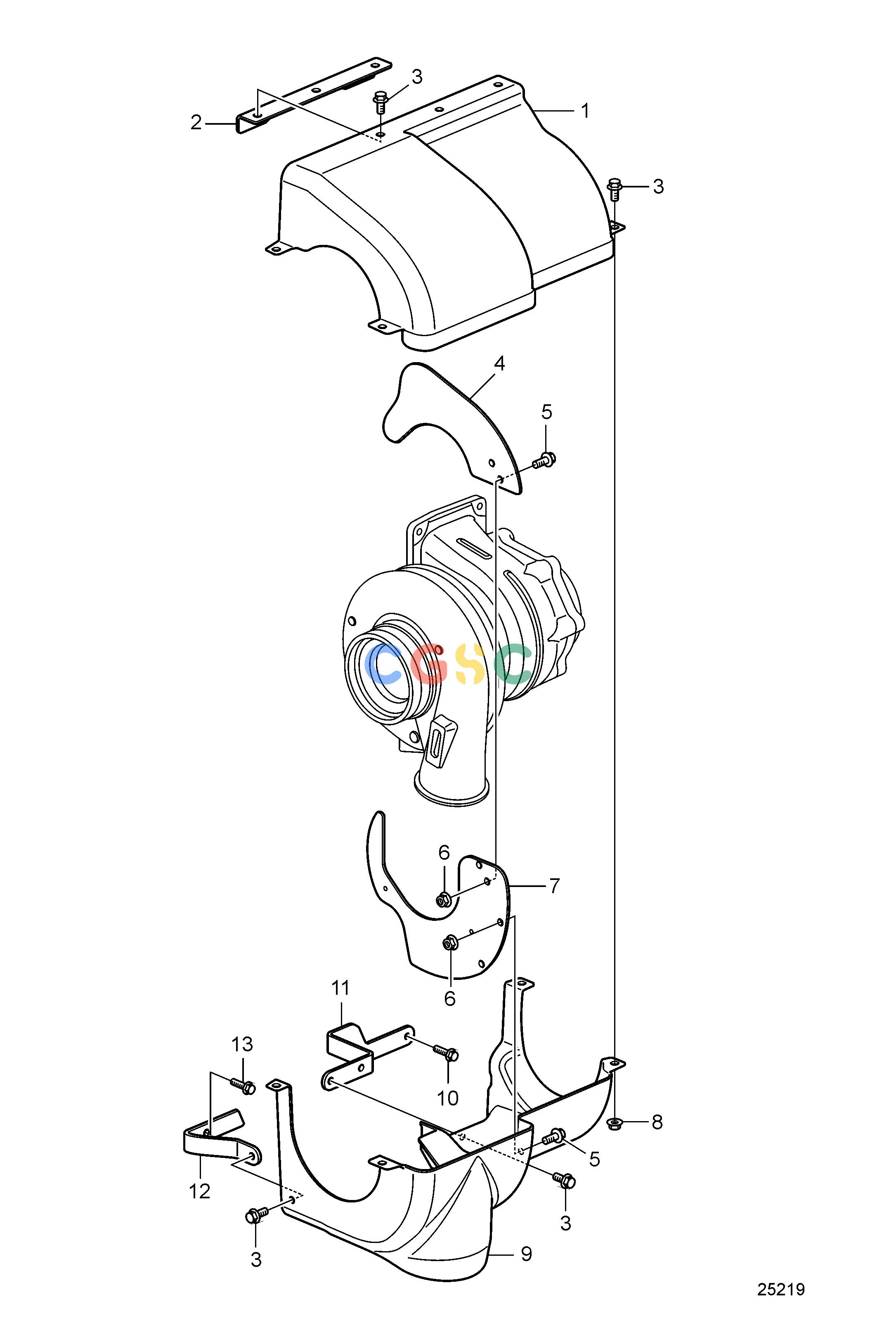

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Intake and Exhaust SystemHeat Shield for TurboEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
929 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21587253
|
[1] |
Heat insulation
|
|
| 2. |
21321657
|
[1] |
Bracket
|
|
| 3. |
984733
|
[10] |
Flange screw
|
|
| 4. |
21380941
|
[1] |
Splash plate
|
|
| 5. |
967949
|
[2] |
Flange screw
|
|
| 6. |
990949
|
[2] |
Flange lock nut
|
|
| 7. |
21409068
|
[1] |
Splash plate
|
|
| 8. |
990950
|
[4] |
Flange lock nut
|
|
| 9. |
21380948
|
[1] |
Heat insulation
|
|
| 10. |
984743
|
[1] |
Flange screw
|
|
| 11. |
21385680
|
[1] |
Bracket
|
|
| 12. |
21385677
|
[1] |
Bracket
|
|
| 13. |
984741
|
[1] |
Flange screw
|
|
