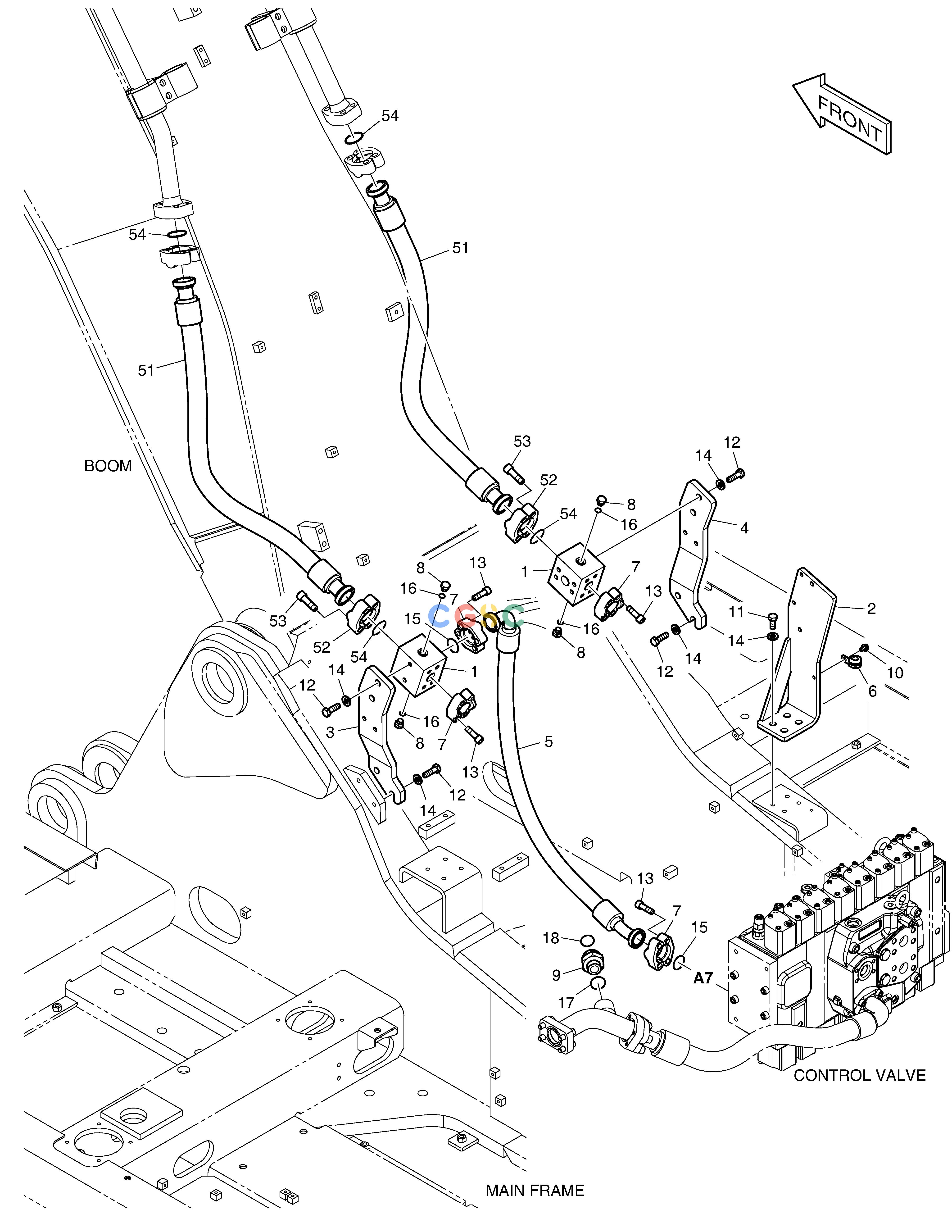

斗山零件查询MAIN PIPING - ONE & TWO WAY DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
166 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07907
|
[-] |
|
|
| 1. |
100201-00189A
|
[2] |
|
|
| 10. |
K1001029
|
[1] |
BOLT
|
|
| 11. |
S0515266
|
[4] |
BOLT
|
|
| 12. |
S0515466
|
[8] |
BOLT
|
|
| 13. |
S2215466
|
[16] |
BOLT
|
|
| 14. |
4114-1792A
|
[12] |
WASHER
|
|
| 15. |
2180-1026D19
|
[2] |
O-RING
|
|
| 16. |
S8000111
|
[4] |
O-RING
|
|
| 17. |
S8000291
|
[1] |
O-RING
|
|
| 18. |
S8030201
|
[1] |
|
|
| 2. |
110425-00105B
|
[1] |
|
|
| 3. |
110420-00174G
|
[1] |
|
|
| 4. |
110420-00175G
|
[1] |
|
|
| 5. |
DS2096027
|
[1] |
|
|
| 51. |
DS2038449
|
[2] |
|
|
| 52. |
2181-9086
|
[4] |
FLANGE;SPLIT
|
|
| 53. |
S2218566
|
[8] |
BOLT;SOCKET
|
|
| 54. |
2180-1026D23
|
[4] |
O-RING
|
|
| 6. |
124-00208D2
|
[1] |
CLAMP
|
|
| 7. |
2181-9081
|
[8] |
FLANGE;SPLIT
|
|
| 8. |
2181-1950D1
|
[4] |
PLUG
|
|
| 9. |
DS2232111
|
[1] |
ADAPTER
|
|
