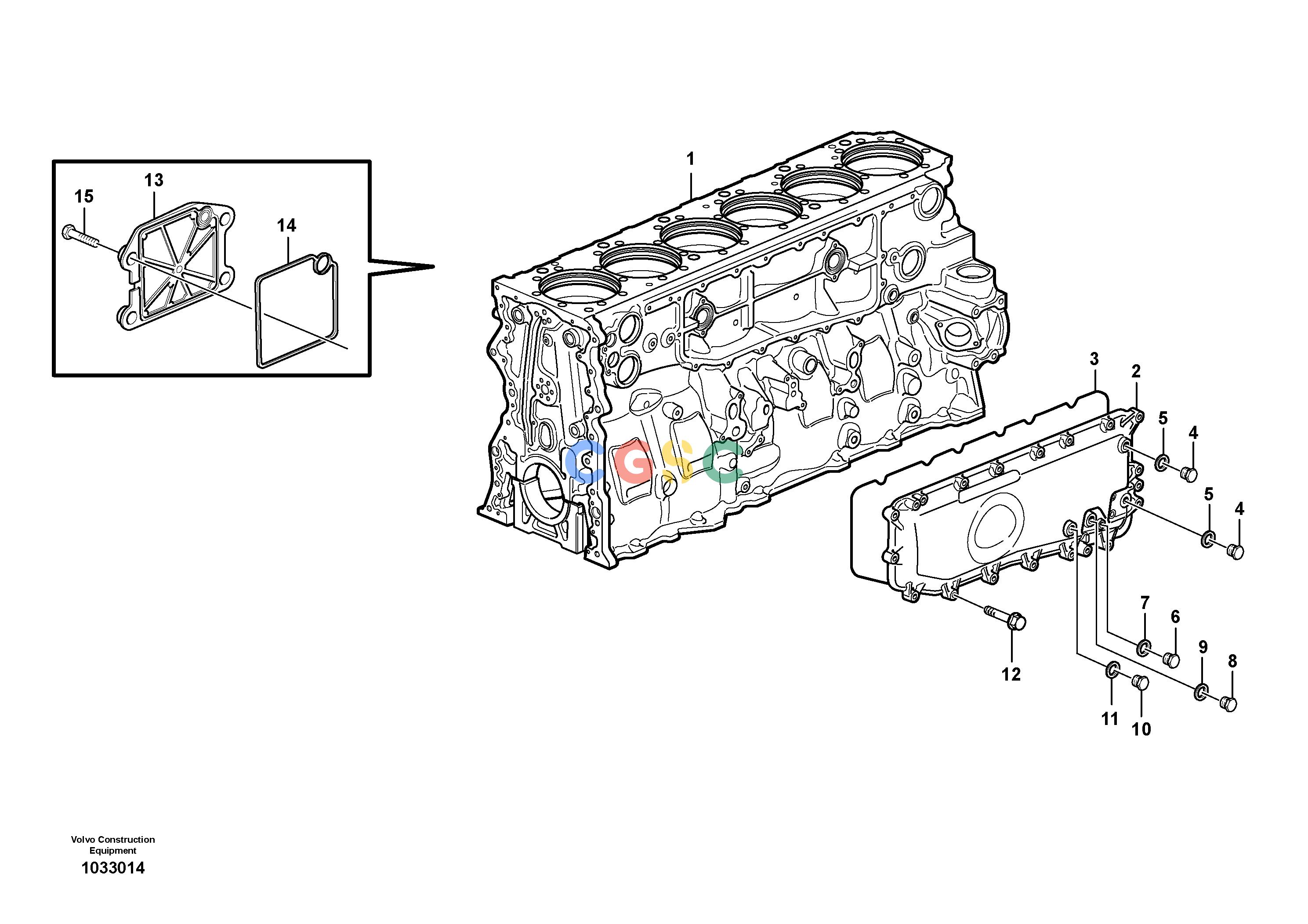

沃尔沃零件查询EC700BHR Cylinder blockHIGH REACH DEMOLITION8285792-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
629 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder Block
|
|
| 2. |
VOE21100906
|
[1] |
Cover
|
|
| 3. |
VOE21193230
|
[1] |
Sealing kit
|
|
| 4. |
VOE960630
|
[2] |
Plug
|
|
| 5. |
VOE13969011
|
[2] |
Gasket
|
|
| 6. |
VOE960629
|
[1] |
Plug
|
|
| 7. |
VOE13947282
|
[1] |
Gasket
|
|
| 8. |
VOE960631
|
[1] |
Plug
|
|
| 9. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 10. |
VOE13960632
|
[1] |
Plug
|
|
| 11. |
VOE21024032
|
[1] |
Sealing ring
|
|
| 12. |
VOE13947760
|
[12] |
Screw
|
L = 40 MM
|
| |
VOE13965179
|
[5] |
Screw
|
L = 50 MM
|
| 13. |
VOE20533497
|
[1] |
Cap
|
|
| 14. |
VOE20532891
|
[1] |
Gasket
|
|
| 15. |
VOE60113082
|
[4] |
Flange screw
|
|
