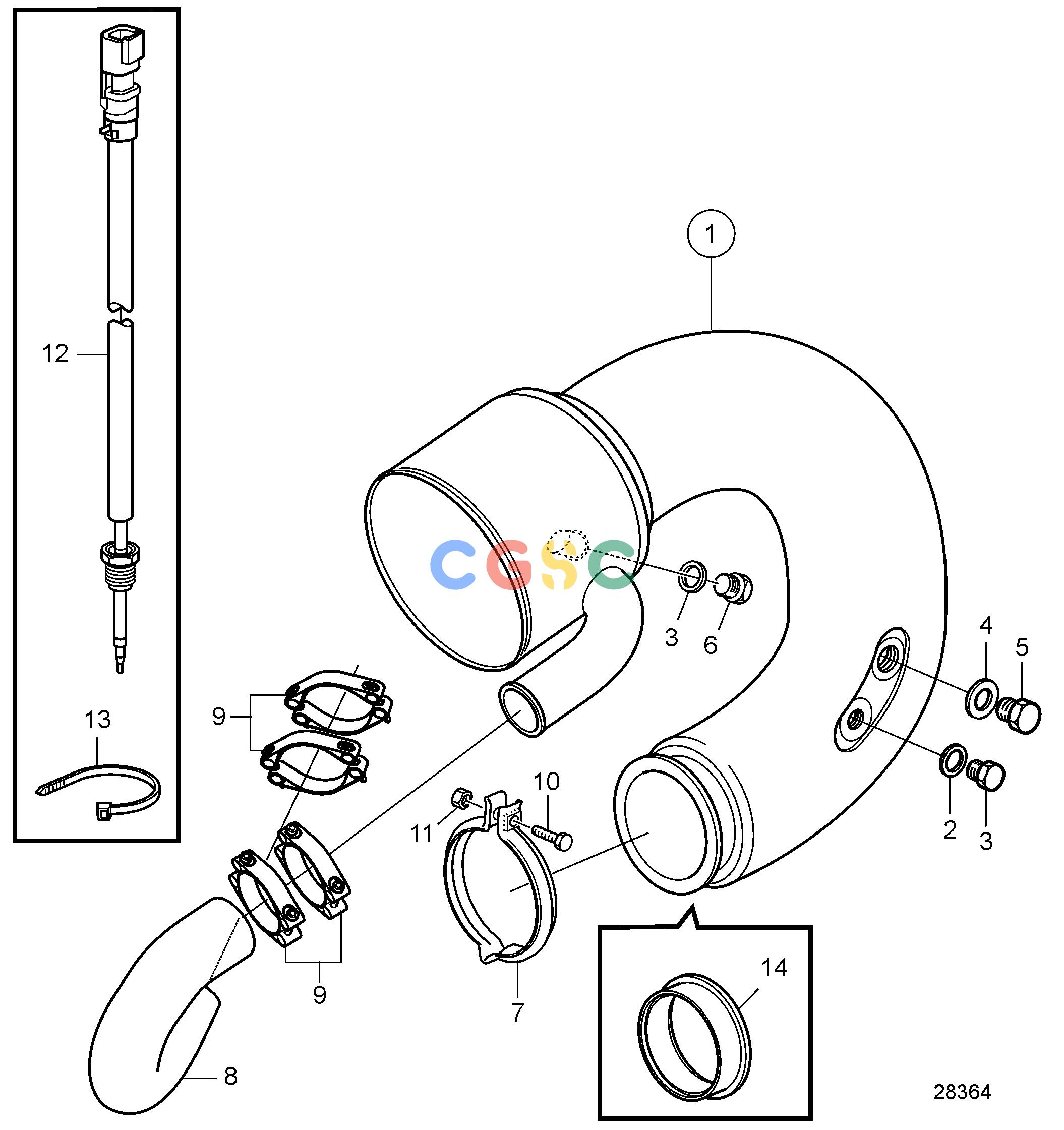

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Intake and Exhaust SystemWet Exhaust Pipe ElbowEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21353124
|
[1] |
Rising pipe
|
|
| 2. |
960630
|
[1] |
Plug
|
|
| 3. |
969011
|
[2] |
Gasket
|
|
| 4. |
947281
|
[1] |
Gasket
|
|
| 5. |
960628
|
[1] |
Plug
|
|
| 6. |
20412266
|
[1] |
Plug
|
|
| 7. |
21211715
|
[1] |
V-clamp
|
|
| 8. |
21231761
|
[1] |
Hose
|
L=875mm
|
| 9. |
21304745
|
[4] |
Hose clamp
|
|
| 10. |
973924
|
[1] |
Flange screw
|
|
| 11. |
990950
|
[1] |
Flange lock nut
|
|
| 12. |
21126692
|
[1] |
Temperature sensor
|
|
| 13. |
948211
|
[6] |
Cable tie
|
|
| 14. |
21230092
|
[1] |
Flange
|
|
