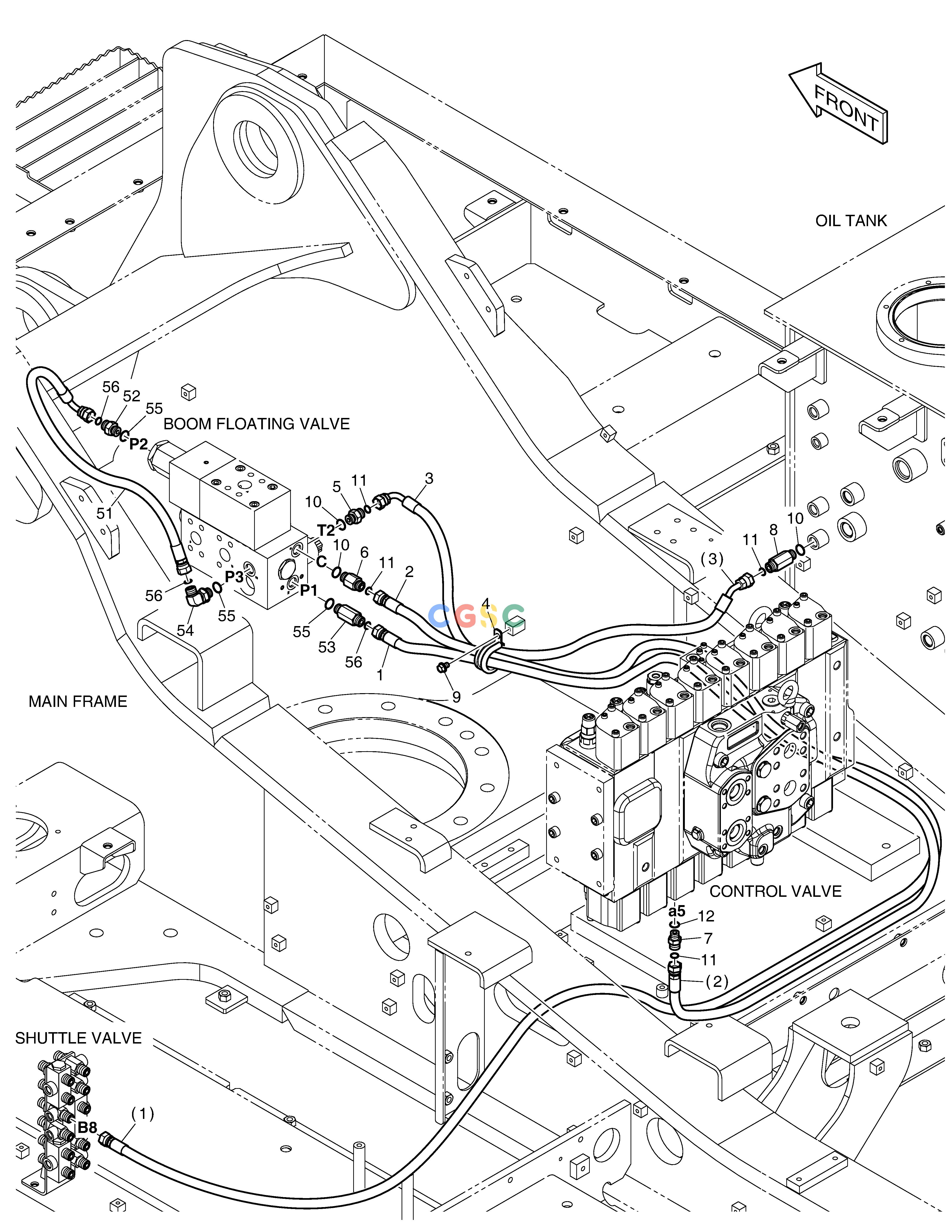

斗山零件查询PILOT PIPING - BOOM FLOATING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07949
|
[-] |
|
|
| 1. |
DS2119053
|
[1] |
|
|
| 10. |
S8000141
|
[3] |
O-RING
|
|
| 11. |
S8030061
|
[4] |
O-RING
|
|
| 12. |
S8040061
|
[1] |
O-RING
|
|
| 2. |
DS2119079
|
[1] |
|
|
| 3. |
DS2140011
|
[1] |
|
|
| 4. |
124-00208D6
|
[1] |
CLIP
|
|
| 5. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 51. |
DS2121325
|
[1] |
|
|
| 52. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 53. |
DS2232085
|
[1] |
ADAPTER
|
|
| 54. |
DS2304059
|
[1] |
ELBOW
|
|
| 55. |
S8000141
|
[3] |
O-RING
|
|
| 56. |
S8030061
|
[3] |
O-RING
|
|
| 6. |
2181-4133D24
|
[1] |
ADAPTER
|
|
| 7. |
DS2232066
|
[1] |
ADAPTER
|
|
| 8. |
DS2232085
|
[1] |
ADAPTER
|
|
| 9. |
K1001029
|
[1] |
BOLT
|
|
