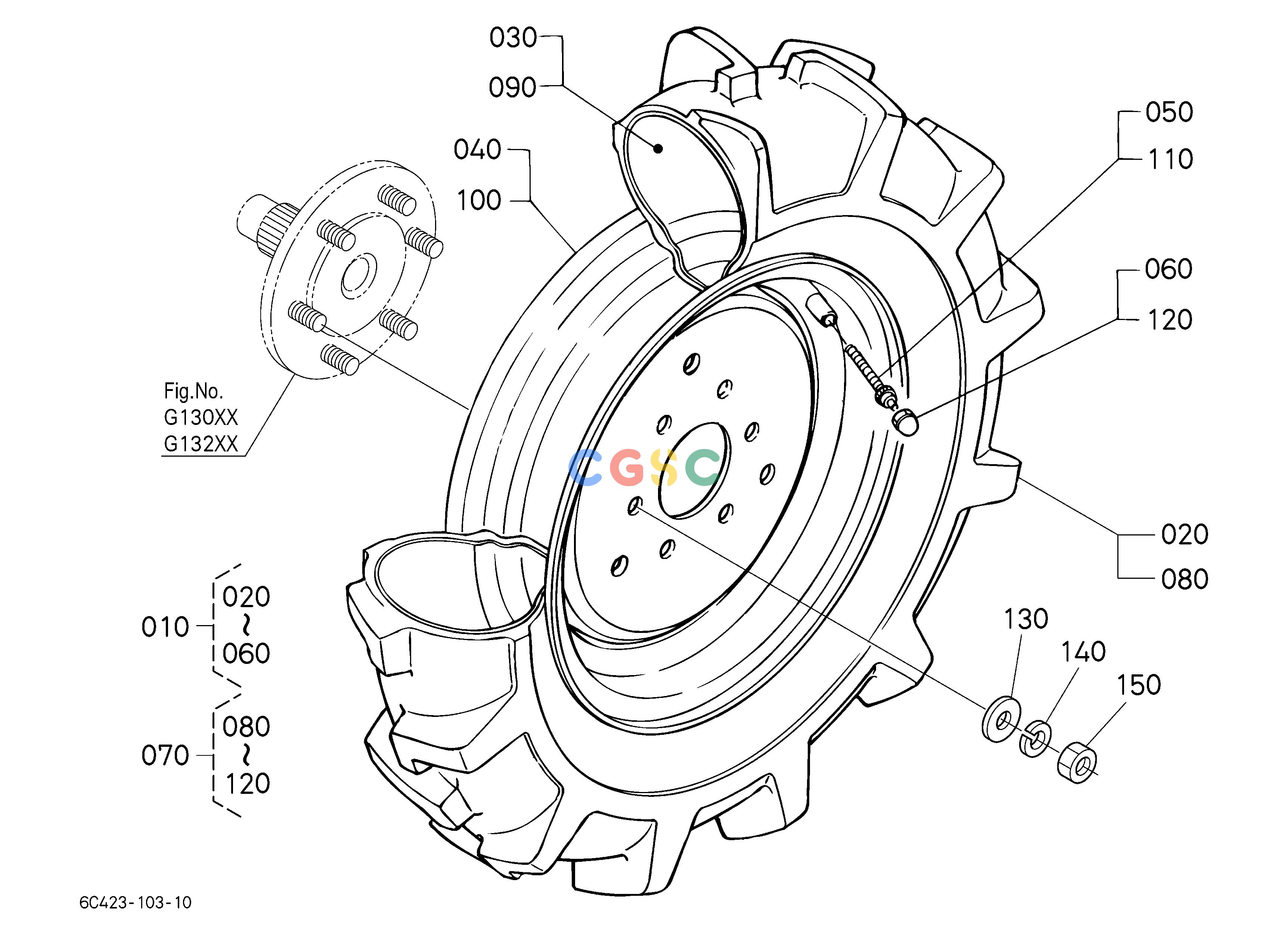

久保田零件查询R10101 FRONT WHEEL (6-12B) FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
617 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04250020
|
[1] |
TIRE,ASSY
|
29.7000(lbs); 13.500
|
| 020. |
9601534130
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 030. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 040. |
3750057920
|
[1] |
WHEEL
|
12.7600(lbs); 5.800
|
| 050. |
3215027740
|
[1] |
CORE,VALVE
|
0.0066(lbs); 0.003
|
| 060. |
3824011690
|
[1] |
CAP,VALVE
|
0.0044(lbs); 0.002
|
| 070. |
6C04250030
|
[1] |
TIRE,ASSY
|
29.7000(lbs); 13.500
|
| 080. |
9601534130
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 090. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 100. |
3750057920
|
[1] |
WHEEL
|
12.7600(lbs); 5.800
|
| 110. |
3215027740
|
[1] |
CORE,VALVE
|
0.0066(lbs); 0.003
|
| 120. |
3824011690
|
[1] |
CAP,VALVE
|
0.0044(lbs); 0.002
|
| 130. |
0401350120
|
[12] |
WASHER,PLAIN
|
0.0154(lbs); 0.007
|
| 140. |
0451250120
|
[12] |
WASHER,SPRING LOCK
|
0.0066(lbs); 0.003
|
| 150. |
0217650120
|
[12] |
HEX.NUT
|
0.0220(lbs); 0.010
|
