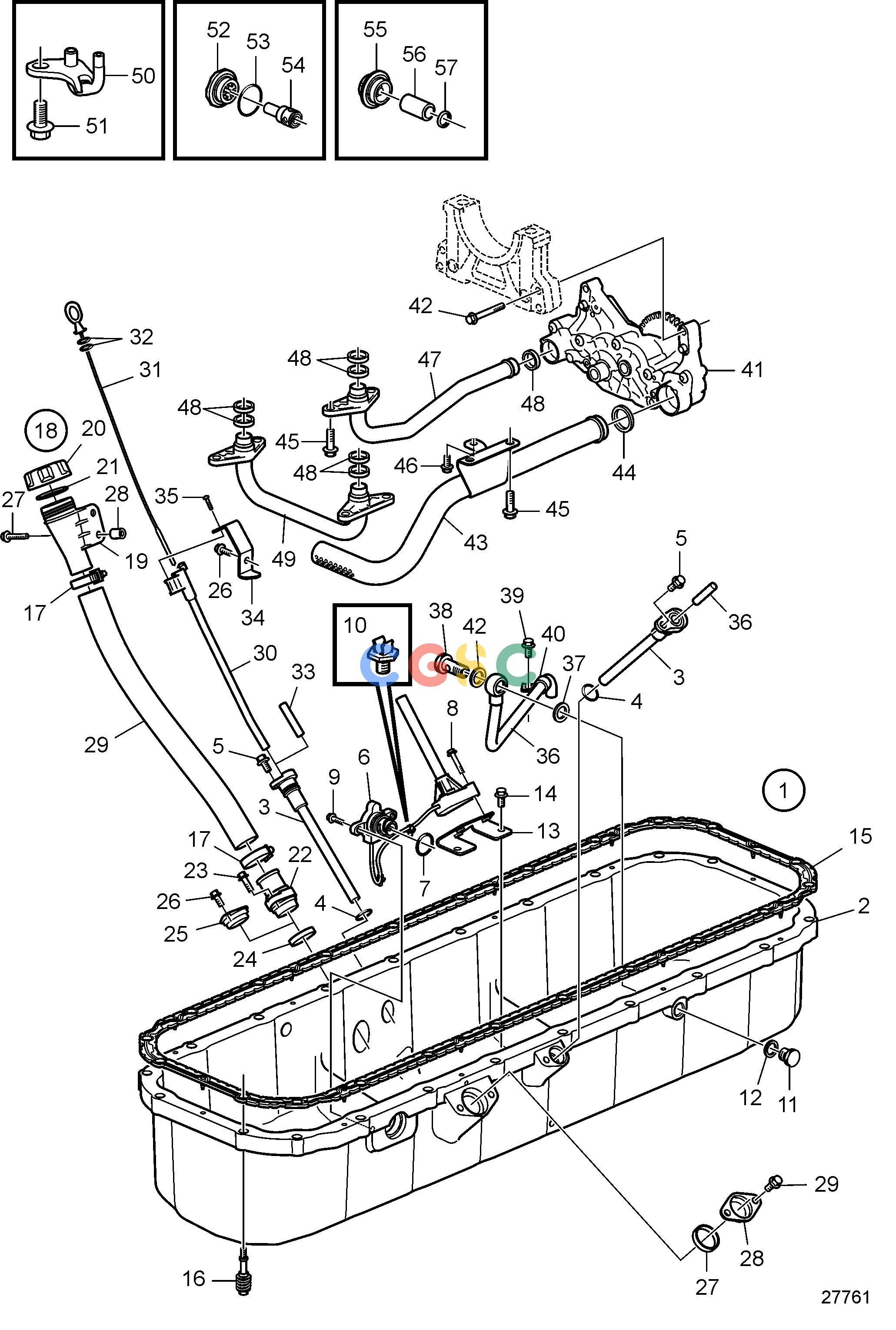

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Lubricating SystemLubricating System with Shallow Oil SumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3593504
|
[1] |
Oil pan
|
|
| 2. |
|
|
|
|
| 3. |
21523327
|
[1] |
Pipe
|
|
| 4. |
949656
|
[2] |
O-ring
|
|
| 5. |
966378
|
[1] |
Flange screw
|
|
| 6. |
21521353
|
[1] |
Oil level sensor
|
|
| 7. |
990719
|
[1] |
O-ring
|
|
| 8. |
984728
|
[3] |
Flange screw
|
|
| 9. |
984726
|
[2] |
Flange screw
|
|
| 10. |
20700754
|
[2] |
Retainer
|
|
| 11. |
982293
|
[1] |
Plug
|
|
| 12. |
976931
|
[1] |
Gasket
|
|
| 13. |
21104728
|
[1] |
Bracket
|
|
| 14. |
984733
|
[3] |
Flange screw
|
|
| 15. |
21293367
|
[1] |
Sealing strip
|
|
| 16. |
20739547
|
[22] |
Flange screw
|
|
| 17. |
961669
|
[4] |
Hose clamp
|
|
| 18. |
20808091
|
[1] |
Oil filler pipe
|
|
| 19. |
20486943
|
[1] |
Oil filler pipe
|
|
| 20. |
20807510
|
[1] |
Oil filler cap
|
|
| 21. |
20365079
|
[1] |
Rubber washer
|
|
| 22. |
20462497
|
[2] |
Connection pipe
|
|
| 23. |
984734
|
[4] |
Flange screw
|
|
| 24. |
20555696
|
[2] |
Sealing ring
|
|
| 25. |
3964803
|
[2] |
Plug
|
|
| 26. |
984733
|
[7] |
Flange screw
|
|
| 27. |
994385
|
[2] |
Flange screw
|
|
| 28. |
852660
|
[2] |
Spacer sleeve
|
|
| 29. |
21364974
|
[1] |
Hose
|
|
| 30. |
21173620
|
[1] |
Pipe
|
|
| 31. |
21885799
|
[1] |
Oil dipstick
|
|
| 32. |
949187
|
[2] |
O-ring
|
|
| 33. |
20533484
|
[2] |
Plug
|
|
| 34. |
21176233
|
[1] |
Bracket
|
|
| 35. |
975371
|
[2] |
Six point socket scr
|
|
| 36. |
3889666
|
[1] |
Oil bilge pipe
|
|
| 37. |
976931
|
[2] |
Gasket
|
|
| 38. |
190714
|
[1] |
Hollow screw
|
|
| 39. |
984733
|
[1] |
Flange screw
|
|
| 40. |
190229
|
[1] |
Clamp
|
|
| 41. |
20824906
|
[1] |
Oil pump
|
|
| 42. |
984740
|
[4] |
Flange screw
|
|
| 43. |
3889667
|
[1] |
Oil strainer
|
|
| 44. |
20451487
|
[1] |
Sealing ring
|
|
| 45. |
946472
|
[3] |
Flange screw
|
|
| 46. |
984733
|
[1] |
Flange screw
|
|
| 47. |
20501240
|
[1] |
Pressure pipe
|
|
| 48. |
21092243
|
[7] |
Sealing ring
|
|
| 49. |
20498189
|
[1] |
Pressure pipe
|
|
| 50. |
3155151
|
[6] |
Piston cooling jet
|
|
| 51. |
966378
|
[6] |
Flange screw
|
|
| 52. |
1547934
|
[1] |
Cover
|
|
| 53. |
948610
|
[1] |
O-ring
|
|
| 54. |
471707
|
[1] |
Reduction valve
|
|
| 55. |
|
|
|
|
| 56. |
|
|
|
|
| 57. |
469846
|
[1] |
Sealing ring
|
|
