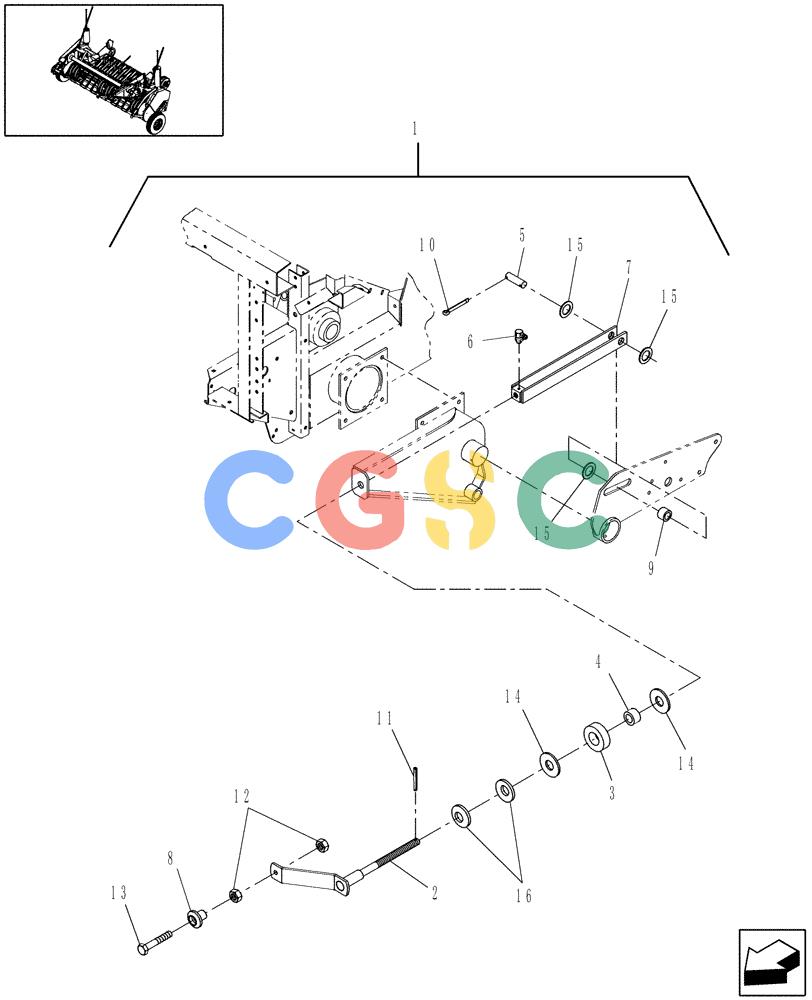

凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (18.54) - DIA KIT, MECHANICAL PICKUP LIFT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87716797
|
[1] |
KIT
|
NH
Mechanical Pickup Lift, Includes: Instructions
|
| 2. |
87716952
|
[1] |
CRANK
|
NH
|
| 3. |
90999
|
[1] |
SPACER,25.65mm ID x 50.8mm OD x 15.88mm L
|
NH
|
| 4. |
86636652
|
[1] |
SPACER
|
NH
|
| 5. |
86634564
|
[1] |
PIN
|
NH
|
| 6. |
87569
|
[1] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
|
| 7. |
87716961
|
[1] |
LINK
|
NH
|
| 8. |
33781
|
[1] |
KNOB
|
NH
|
| 9. |
86636631
|
[1] |
HUB
|
NH
|
| 10. |
87398
|
[2] |
COTTER PIN,3/16" OD x 1-1/4" OAL
|
NH
|
| 11. |
280315
|
[1] |
GROOVED PIN,4.76mm OD x 25.4mm L
|
NH
|
| 12. |
9628503
|
[2] |
NUT,3/8"-16, G5
|
NH
|
| 13. |
88444
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5
|
NH
|
| 14. |
578092
|
[2] |
WASHER,19.4mm ID x 47.6mm OD x 3.43mm Thk
|
NH
|
| 15. |
249100
|
[3] |
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
|
NH
|
| 16. |
322359
|
[2] |
BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk
|
NH
|
