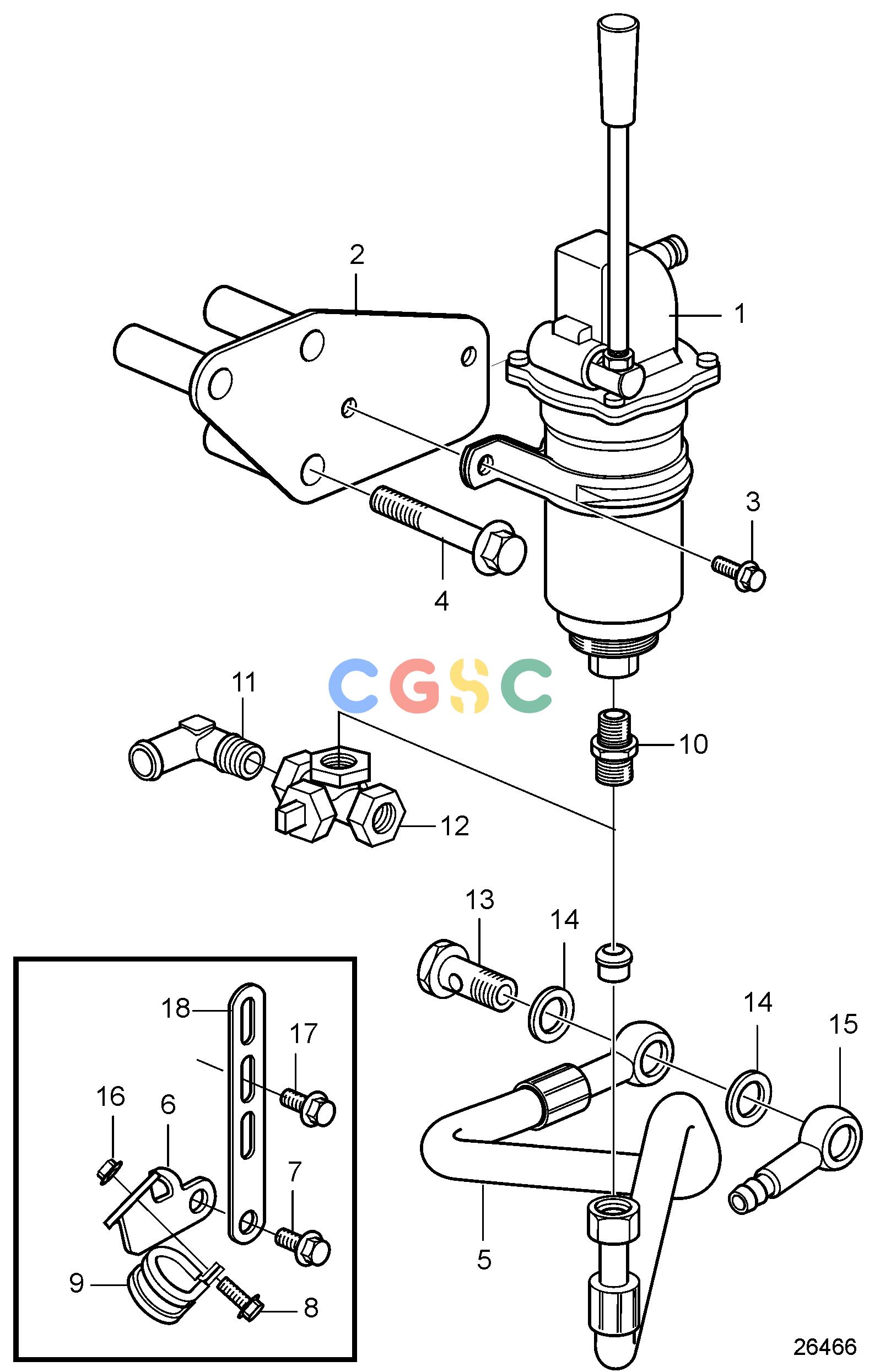

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Lubricating SystemOil Drain Pump and Installation Parts, Engine Mounted for Aluminum SumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
992 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3827475
|
[1] |
Oil drain pump
|
|
| 2. |
3595052
|
[1] |
Bracket
|
|
| 3. |
984734
|
[2] |
Flange screw
|
|
| 4. |
975127
|
[3] |
Flange screw
|
|
| 5. |
21879669
|
[1] |
Hose
|
|
| 6. |
3595053
|
[1] |
Bracket
|
|
| 7. |
984733
|
[1] |
Flange screw
|
|
| 8. |
984734
|
[1] |
Flange screw
|
|
| 9. |
949379
|
[1] |
Clamp
|
|
| 10. |
16452
|
[1] |
Double nipple
|
|
| 11. |
467716
|
[1] |
Elbow nipple
|
|
| 12. |
21548817
|
[1] |
Faucet
|
|
| 13. |
966821
|
[1] |
Hollow screw
|
|
| 14. |
18813
|
[2] |
Gasket
|
|
| 15. |
992357
|
[1] |
Banjo nipple
|
|
| 16. |
990940
|
[1] |
Flange nut
|
|
| 17. |
984732
|
[2] |
Flange screw
|
|
| 18. |
965543
|
[1] |
Bracket
|
|
