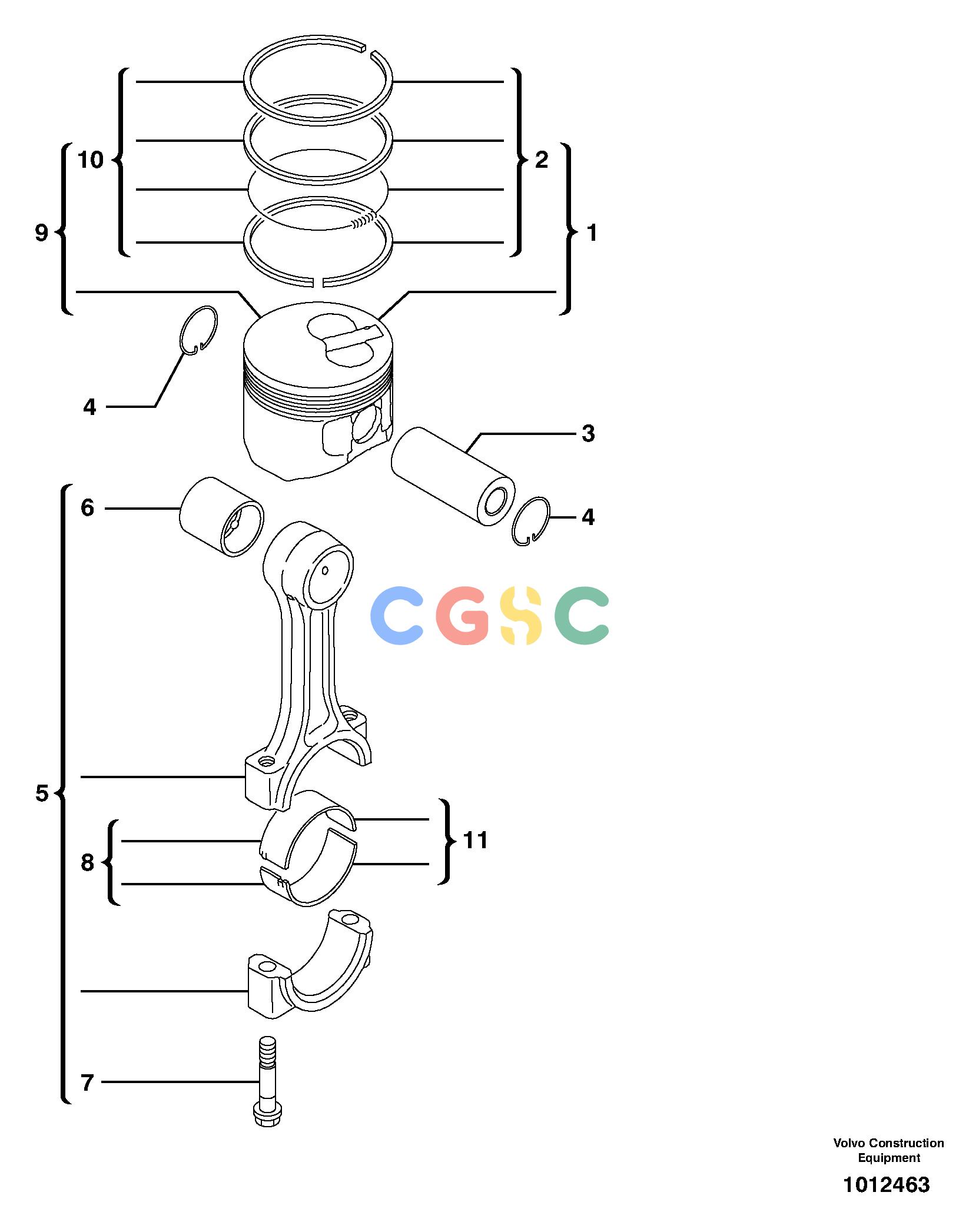

沃尔沃零件查询ECR28 Connecting rod and pistonTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713423
|
[3] |
Piston
|
|
| 2. |
VOE11713424
|
[3] |
Piston ring
|
STD SZ
|
| 3. |
VOE11713425
|
[3] |
Pin
|
|
| 4. |
VOE11713426
|
[6] |
Snap ring
|
|
| 5. |
VOE11713428
|
[3] |
Rod
|
|
| 6. |
|
[3] |
Bushing
|
ORDER ITEM NO 5
|
| 7. |
VOE11713429
|
[6] |
Bolt
|
|
| 8. |
VOE11713430
|
[3] |
Bearing shell kit
|
STD SZ
|
| 9. |
VOE11713432
|
[3] |
Piston
|
|
| 10. |
VOE11713433
|
[3] |
Piston ring
|
0,25mm/0.0098in
|
| 11. |
VOE11713434
|
[3] |
Bearing shell kit
|
0,25mm/0.0098in
|
