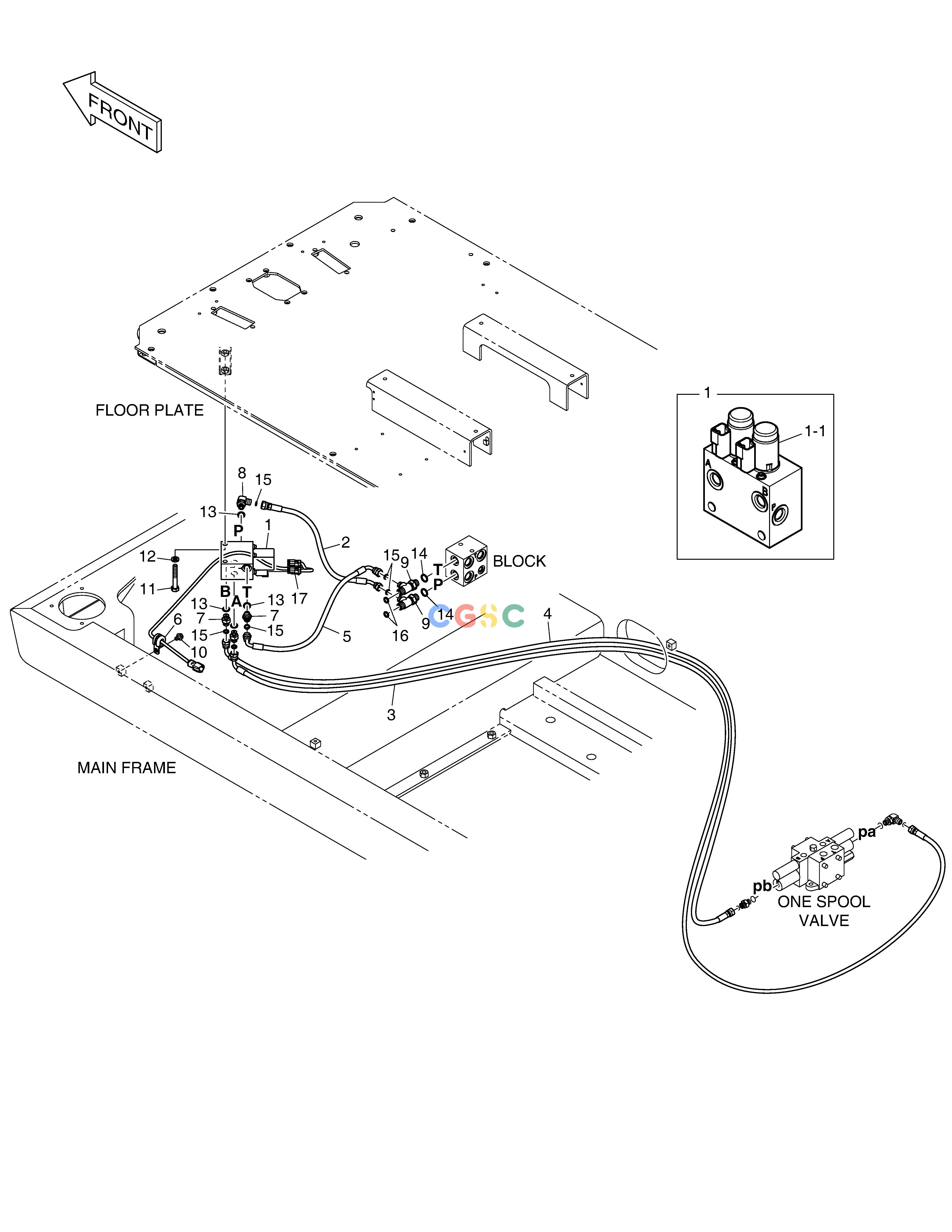

斗山零件查询PILOT PIPING - ROTATING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08001B
|
[-] |
|
|
| 1. |
410116-00091
|
[1] |
|
|
| 1-1. |
410116-00418
|
[2] |
|
|
| 10. |
K1001029
|
[1] |
BOLT
|
|
| 11. |
S0558866
|
[2] |
BOLT
|
|
| 12. |
S5102603
|
[2] |
. WASHER
|
|
| 13. |
S8000111
|
[4] |
O-RING
|
|
| 14. |
S8000141
|
[2] |
O-RING
|
|
| 15. |
S8030041
|
[6] |
O-RING
|
|
| 16. |
S8030061
|
[2] |
O-RING
|
|
| 17. |
310207-02036
|
[1] |
|
|
| 2. |
DS2120082
|
[1] |
|
|
| 3. |
DS2121018
|
[1] |
|
|
| 4. |
DS2121322
|
[1] |
|
|
| 5. |
DS2123003
|
[1] |
|
|
| 6. |
124-00208D2
|
[1] |
CLAMP
|
|
| 7. |
2181-4133D1
|
[3] |
ADAPTER
|
|
| 8. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 9. |
181-00121D4
|
[2] |
TEE
|
|
