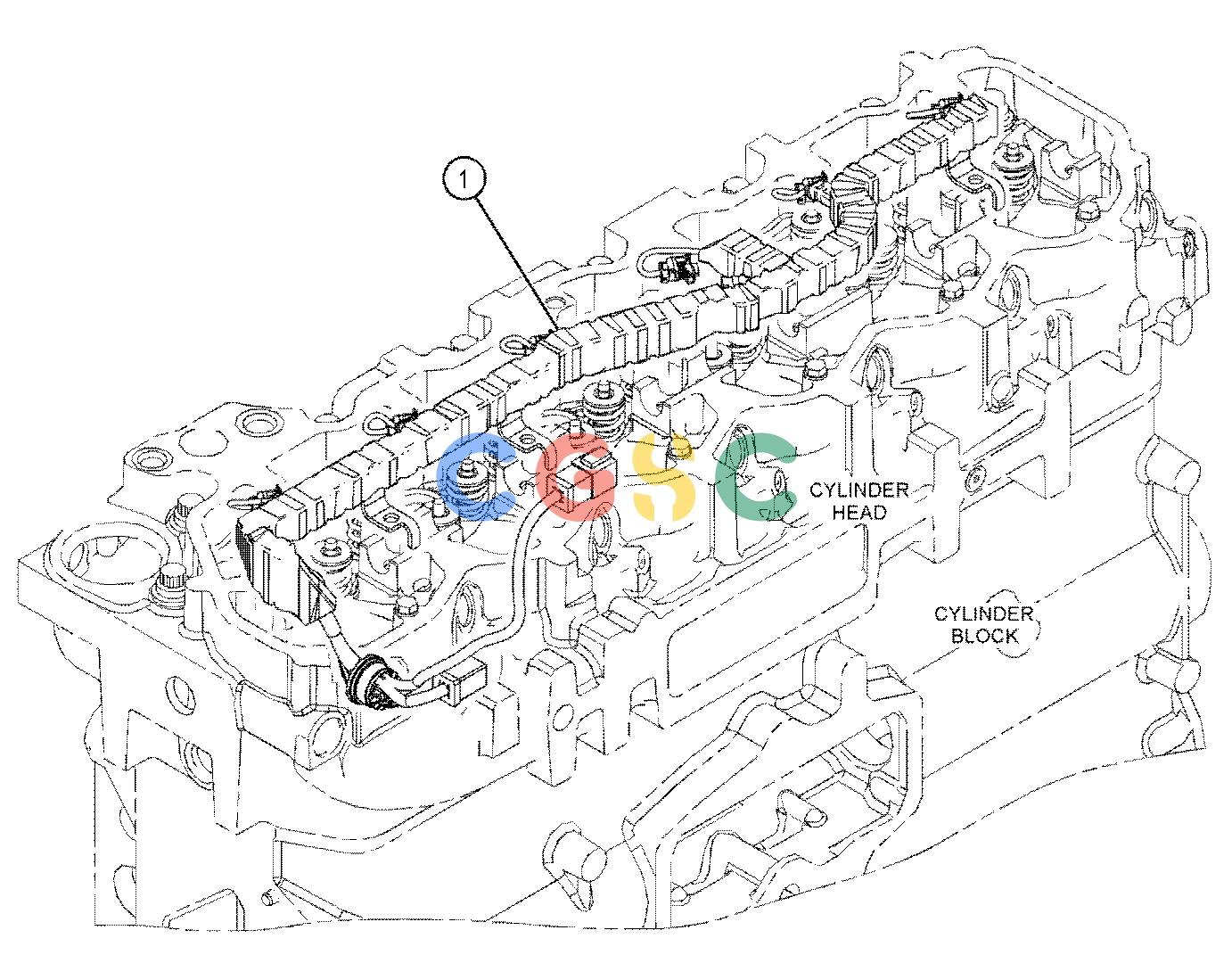

卡特零件查询（725C） 433-0095: HARNESS AS-CONTROL
广数供应链运营团队, 14 02月, 2025，浏览：
956 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 8T-8729 | [13] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2260 | [1] | KIT-CONNECTING PLUG(3-PIN) | |
| | 155-2270 | [3] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH PLUG KIT INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 230-4013 | [3] | PLUG AS-CONNECTOR(3-PIN) | |
| | | | (EACH INCLUDES) |
| | 264-7030 | [1] | SEAL-CONNECTOR | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (EACH RECEPTACLE KIT INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [8] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-3402 | [9] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1768 | [9] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 1P-0810B | | TAPE-ELECTRICAL | |
| | 125-7874E | | TUBE-HEAT SHRINK(5.72-MM DIA)(10-CM) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
