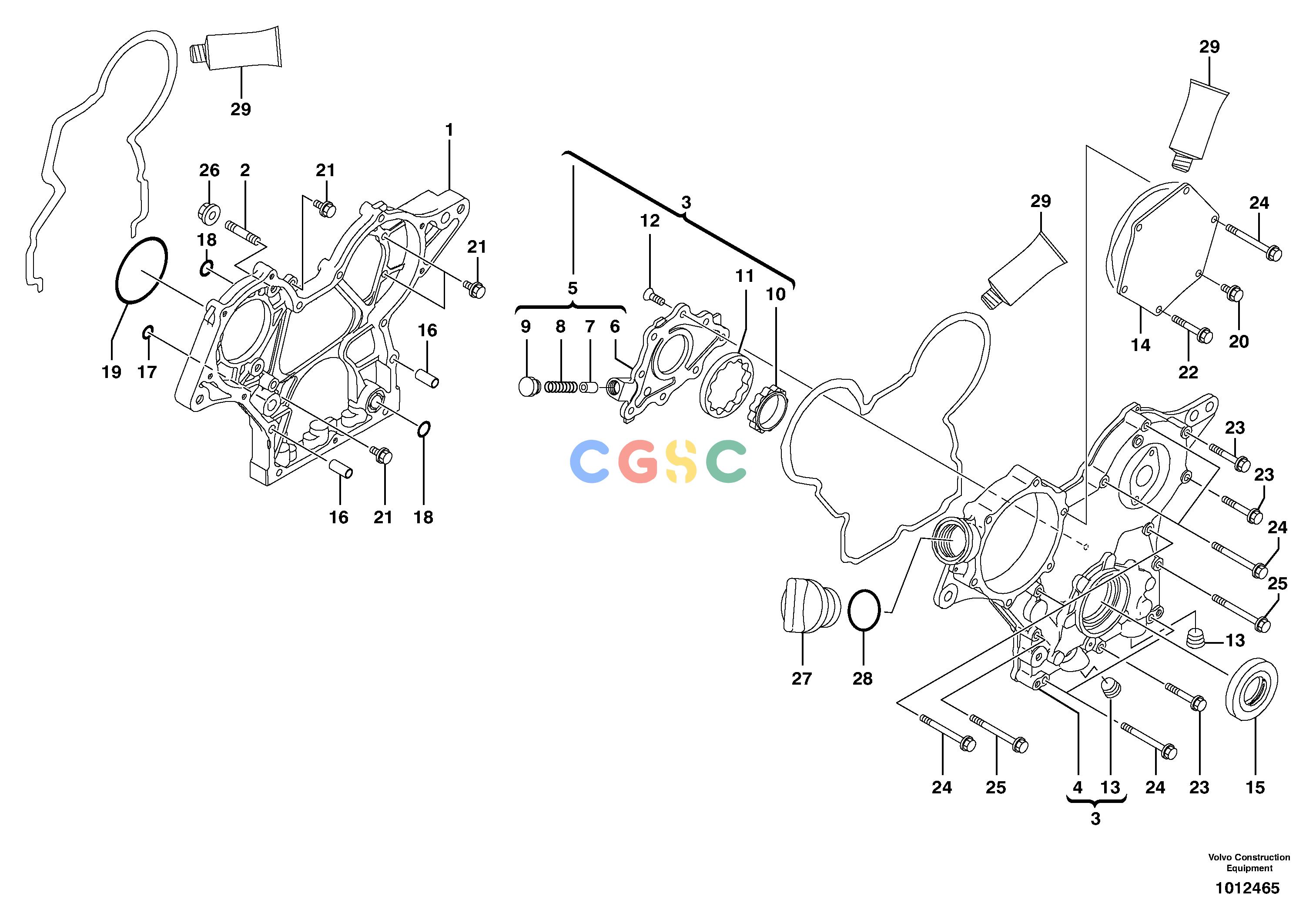

沃尔沃零件查询ECR28 Timing gear casingTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713335
|
[1] |
Timing gear casing
|
|
| 2. |
VOE11713336
|
[3] |
Stud
|
|
| 3. |
VOE11713345
|
[1] |
Timing gear casing
|
|
| 4. |
VOE11713346
|
[1] |
Timing gear casing
|
|
| 5. |
VOE11713347
|
[1] |
Oil pump housing
|
|
| 6. |
VOE11713348
|
[1] |
Oil pump housing
|
|
| 7. |
VOE11713349
|
[1] |
Valve
|
|
| 8. |
VOE11713350
|
[1] |
Spring
|
|
| 9. |
VOE11713351
|
[1] |
Plug
|
|
| 10. |
VOE11713352
|
[1] |
Oil pump wheel
|
|
| 11. |
VOE11713354
|
[1] |
Oil pump wheel
|
|
| 12. |
VOE11713356
|
[8] |
Screw
|
|
| 13. |
VOE14521504
|
[2] |
Plug
|
|
| 14. |
VOE11713357
|
[1] |
Cover
|
|
| 15. |
VOE11713358
|
[1] |
Seal
|
|
| 16. |
VOE11713359
|
[4] |
Pin
|
|
| 17. |
VOE11713309
|
[1] |
O-ring
|
|
| 18. |
VOE11713310
|
[3] |
O-ring
|
|
| 19. |
VOE11713305
|
[1] |
O-ring
|
|
| 20. |
VOE11713360
|
[1] |
Bolt
|
|
| 21. |
VOE11714374
|
[4] |
Bolt
|
|
| 22. |
VOE11713361
|
[4] |
Bolt
|
|
| 23. |
VOE11713361
|
[3] |
Bolt
|
|
| 24. |
VOE11713362
|
[7] |
Bolt
|
|
| 25. |
VOE11713363
|
[2] |
Bolt
|
|
| 26. |
VOE14521543
|
[3] |
Nut
|
|
| 27. |
VOE11714383
|
[1] |
Cap
|
|
| 28. |
VOE11714371
|
[1] |
O-ring
|
|
| 29. |
VOE14543857
|
[1] |
Gasket
|
|
