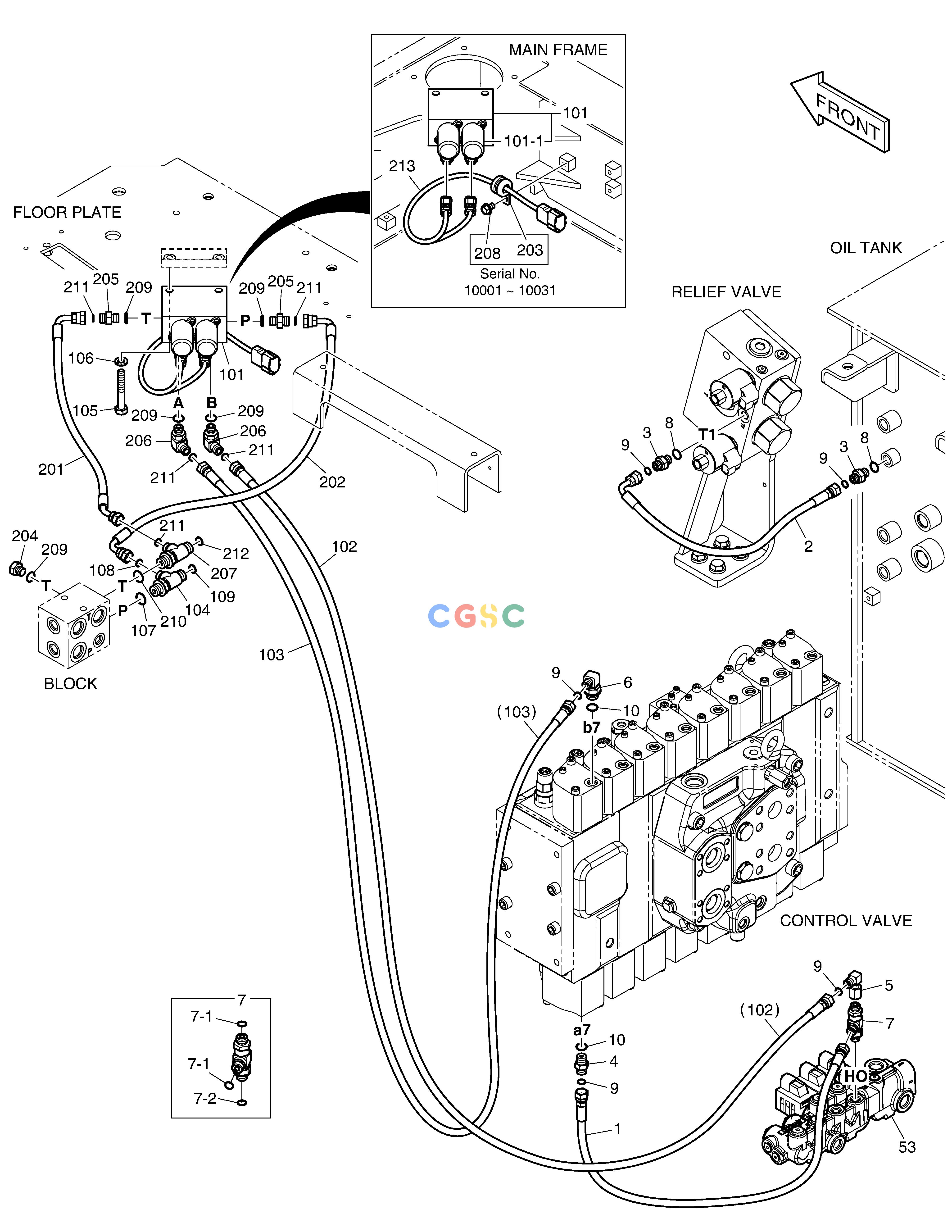

斗山零件查询PILOT PIPING - TWO WAY DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
392 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07944
|
[-] |
|
|
| 1. |
DS2119041
|
[1] |
|
|
| 10. |
S8040061
|
[2] |
O-RING
|
|
| 101. |
410116-00091
|
[1] |
|
|
| 101-1. |
410116-00418
|
[2] |
|
|
| 102. |
DS2119233
|
[1] |
|
|
| 103. |
DS2119227
|
[1] |
|
|
| 104. |
181-00121D4
|
[1] |
TEE
|
|
| 105. |
S0558866
|
[2] |
BOLT
|
|
| 106. |
S5102603
|
[2] |
. WASHER
|
|
| 107. |
S8000141
|
[1] |
O-RING
|
|
| 108. |
S8030041
|
[1] |
O-RING
|
|
| 109. |
S8030061
|
[1] |
O-RING
|
|
| 2. |
DS2143014
|
[1] |
|
|
| 201. |
DS2122039
|
[1] |
|
|
| 202. |
DS2123003
|
[1] |
|
|
| 203. |
124-00208D2
|
[1] |
CLAMP
|
|
| 204. |
2181-1950D1
|
[1] |
PLUG
|
|
| 205. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 206. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 207. |
181-00121D4
|
[1] |
TEE
|
|
| 208. |
K1001029
|
[1] |
BOLT
|
|
| 209. |
S8000111
|
[5] |
O-RING
|
|
| 210. |
S8000141
|
[1] |
O-RING
|
|
| 211. |
S8030041
|
[5] |
O-RING
|
|
| 212. |
S8030061
|
[1] |
O-RING
|
|
| 213. |
310207-02357
|
[1] |
|
|
| 213. |
310207-03577
|
[1] |
|
310207-03577A
|
| 213. |
310207-03577A
|
[1] |
|
|
| 3. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 4. |
DS2232072
|
[1] |
ADAPTER
|
|
| 5. |
DS2291017
|
[1] |
|
|
| 53. |
410135-00386A
|
[1] |
|
|
| 6. |
DS2304056
|
[1] |
|
|
| 7. |
410134-00032
|
[1] |
|
|
| 7-1. |
2180-1217D11
|
[2] |
O-RING
|
|
| 7-2. |
S8000111
|
[1] |
O-RING
|
|
| 8. |
S8000111
|
[2] |
O-RING
|
|
| 9. |
S8030041
|
[5] |
O-RING
|
|
