纽荷兰零件查询(D180C WT/LGP) - CRAWLER DOZER - TIER 4A (12/13-) (48.130.AM[03]) - SPROCKET, GUARD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
645 次

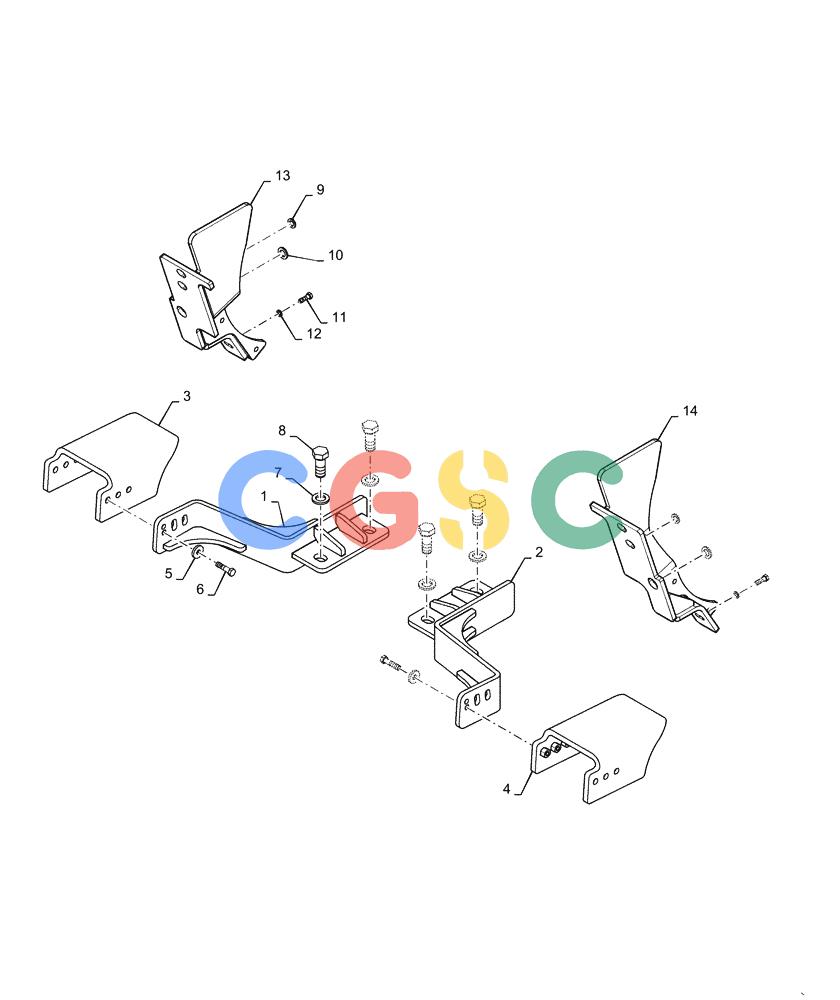

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47640430 | [1] | BRACKET | BURSprocket Cover Left Hand Wide |
| 1. | 47601603 | [1] | PLATE | BURSprocket Cover Left Hand Narrow |
| 2. | 47640433 | [1] | BRACKET | BURSprocket Cover Right Hand Wide |
| 2. | 47601607 | [1] | PLATE | BURSprocket Cover Right Hand Narrow |
| 3. | 47601572 | [1] | GUARD | BURLH, Top |
| 4. | 47601575 | [1] | GUARD | BURRH, Top Superseded by part number: 47643533 |
| 5. | 86592701 | [6] | WASHER,13mm ID x 35mm OD x 5mm Thk | ZED |
| 6. | 84479757 | [6] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BURM12 x 50 10.9 |
| 7. | 87016608 | [4] | WASHER,25.8mm ID x 44.5mm OD x 5mm Thk | RAC |
| 8. | 87354794 | [4] | BOLT,Hex, M24 x 60mm, Cl 10.9 | BURM24 x 60 10.9 |
| 9. | 86592702 | [2] | WASHER,17mm ID x 45mm OD x 6mm Thk | ZED |
| 10. | 895-30103 | [2] | WASHER,M16 x 56 x 5 | BRR Superseded by part number: 337522 |
| 11. | 87563128 | [6] | LOCK BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd | BRR |
| 12. | 87655044 | [2] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 13. | 47598032 | [1] | GUARD | BURLeft Hand Side Sprocket |
| 14. | 47598034 | [1] | GUARD | BURRight Hand Side Sprocket |
