沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Miscellaneous EquipmentEngine Heater, Separately MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
810 次

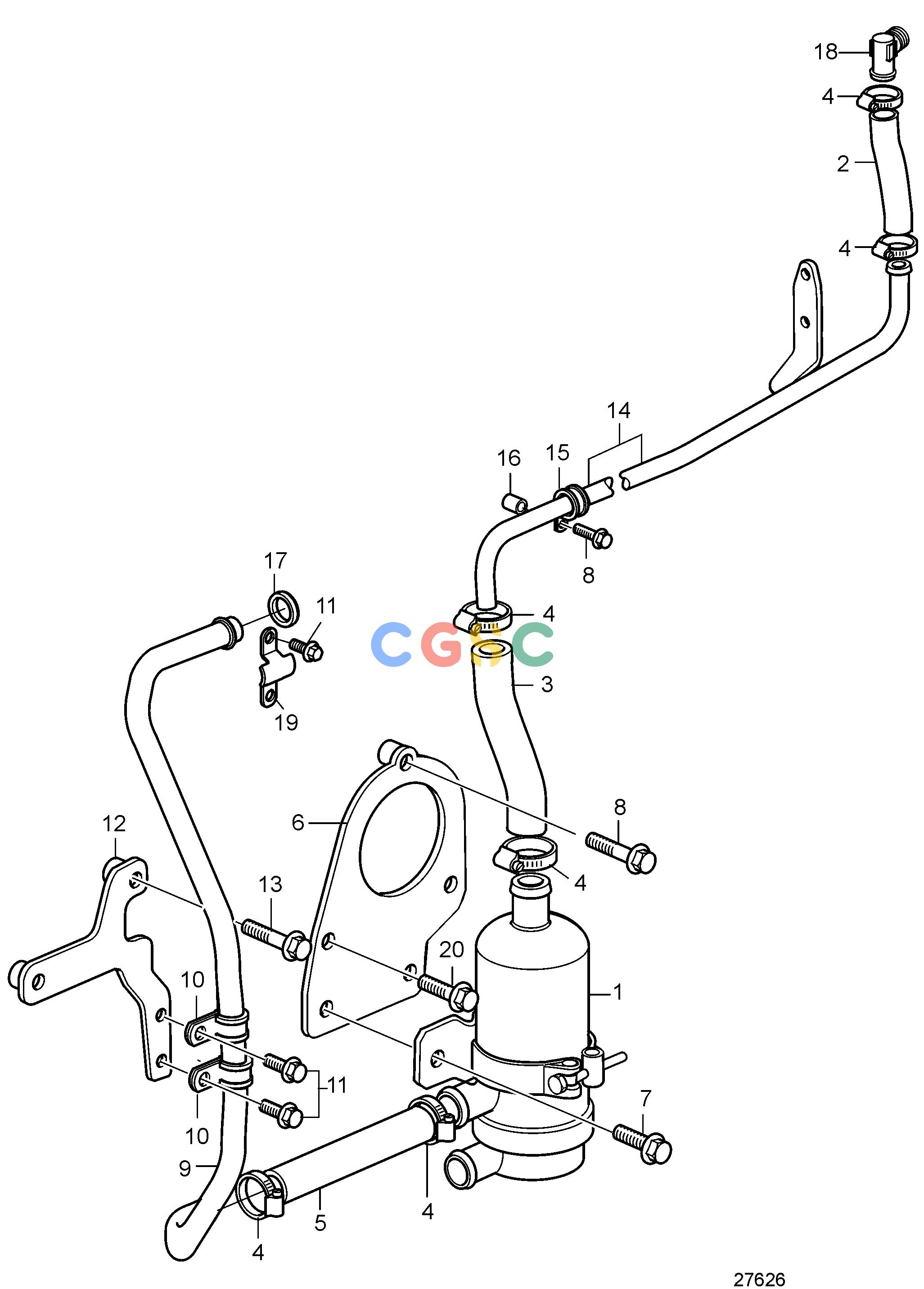

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21578298
|
[1] |
Engine heater
|
220-240V, 2000W
|
| 2. |
943369
|
[1] |
Rubber hose
|
L=170mm
|
| 3. |
943369
|
[1] |
Rubber hose
|
L=170mm
|
| 4. |
994559
|
[6] |
Hose clamp
|
|
| 5. |
943369
|
[1] |
Rubber hose
|
L=230mm
|
| 6. |
22168316
|
[1] |
Bracket
|
|
| 7. |
984733
|
[2] |
Flange screw
|
|
| 8. |
984754
|
[2] |
Flange screw
|
|
| 9. |
21593140
|
[1] |
Pipe
|
|
| 10. |
952631
|
[2] |
Clamp
|
|
| 11. |
984733
|
[4] |
Flange screw
|
|
| 12. |
21613049
|
[1] |
Bracket
|
|
| 13. |
984816
|
[2] |
Flange screw
|
|
| 14. |
21849858
|
[1] |
Pipe
|
|
| 15. |
949786
|
[1] |
Clamp
|
|
| 16. |
807250
|
[1] |
Spacer sleeve
|
|
| 17. |
1547252
|
[1] |
Sealing ring
|
|
| 18. |
942590
|
[1] |
Elbow nipple
|
|
| 19. |
21046528
|
[1] |
Attaching clamp
|
|
| 20. |
984752
|
[2] |
Flange screw
|
|
