久保田零件查询S10301 LABEL (REAR) [ENGLISH] LABELSEPC Kubota online

广数供应链运营团队, 14 02月, 2025，浏览： 526 次

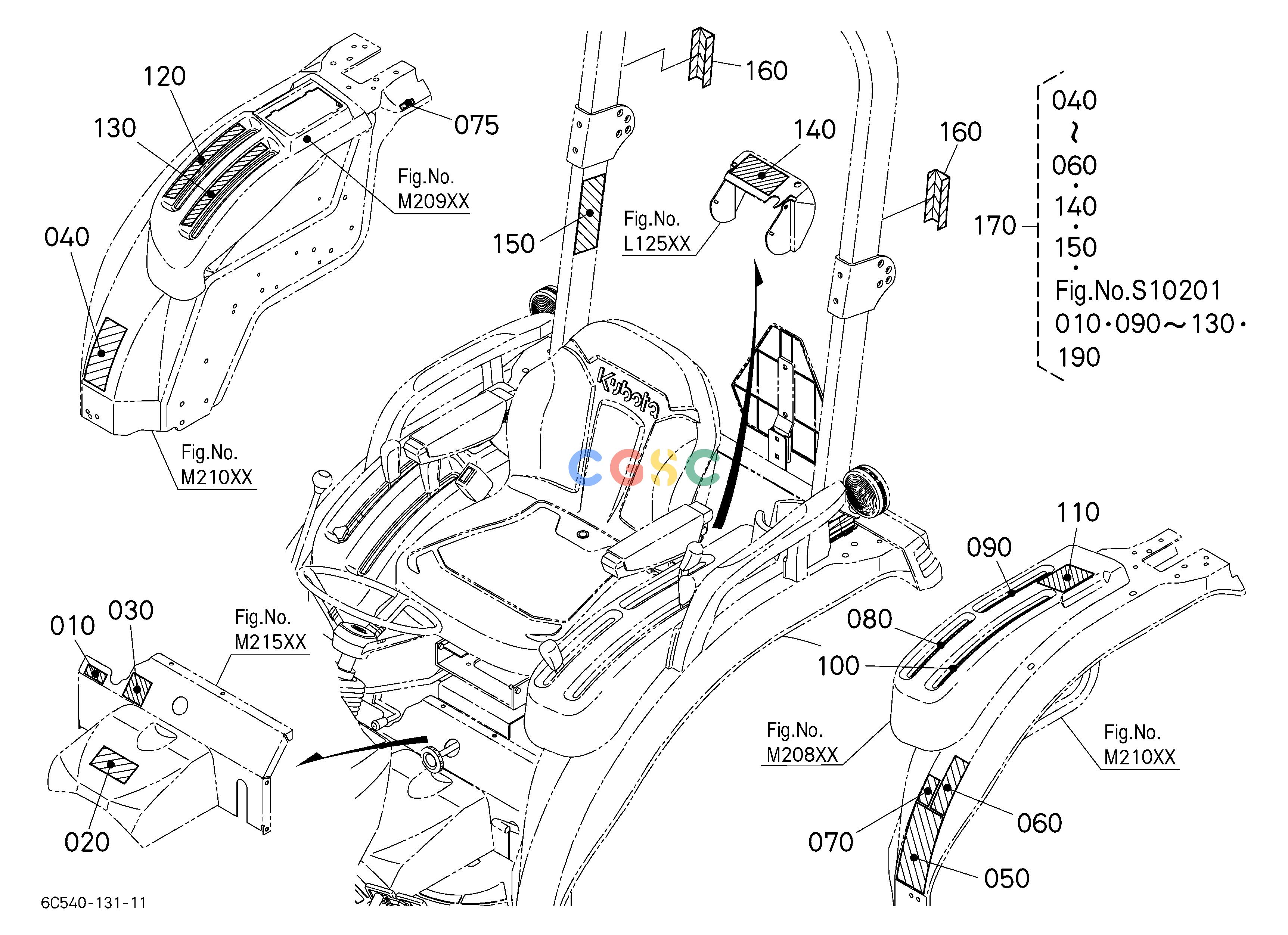

Pos.	Part No	Qty	Parts name	Comments
010.	6C36047512	[1]	LABEL,LEVER LOCK	; <=57203 0.0022(lbs); 0.001
010.	6C36047513	[1]	LABEL,LEVER LOCK	; >=57204 0.0022(lbs); 0.001
020.	6C41047480	[1]	LABEL(PEDAL)	; <=57203 0.0044(lbs); 0.002
020.	6C41047482	[1]	LABEL(PEDAL)	; >=57204 0.0044(lbs); 0.002
030.	TD17037980	[1]	LABEL,HYD.OUTLET	0.0022(lbs); 0.001
040.	TA24098482	[1]	LABEL, ROPS WARNING LABEL	0.0110(lbs); 0.005
050.	6C54047420	[1]	LABEL(SAFETY)	; <=57203 0.0110(lbs); 0.005
050.	6C54047430	[1]	LABEL(SAFETY)	; >=57204 0.0088(lbs); 0.004
060.	6C15047430	[1]	LABEL,PARKING	; <=57203 0.0044(lbs); 0.002
060.	6C41047430	[1]	LABEL(PARKING)	; >=57204 0.0044(lbs); 0.002
070.	6C20047530	[1]	LABEL,S-CHANGE PTO	0.0022(lbs); 0.001
075.	3S20198250	[1]	LABEL(EMC)	; <=57203 0.0022(lbs); 0.001
075.	6C43047550	[1]	LABEL(EMC)	; >=57204 0.0022(lbs); 0.001
080.	6C41047470	[1]	LABEL(PTO,ON-OFF)	0.0022(lbs); 0.001
090.	6C41047380	[1]	LABEL(PTO,SHIFT)	0.0022(lbs); 0.001
100.	6C54047440	[1]	LABEL(RANGE SHIFT)	0.0022(lbs); 0.001
110.	6C20047330	[1]	LABEL	; <=54761 0.0088(lbs); 0.004
110.	6C20047332	[1]	LABEL	; >=54762 0.0088(lbs); 0.004
120.	6C41047350	[1]	LABEL(POSITION)	0.0044(lbs); 0.002
130.	6C41047360	[1]	LABEL(4WD)	0.0044(lbs); 0.002
140.	6C20049590	[1]	LABEL,DRAWBARPTO WARNING	0.0066(lbs); 0.003
150.	6C54095540	[1]	LABEL(ROPS, CAUTION)	0.0066(lbs); 0.003
160.	6C14054990	[2]	REFLECTOR(LABEL)	0.0066(lbs); 0.003
170.	6C54047400	[1]	LABEL,KIT(SAFETY)	; <=57203 0.2090(lbs); 0.095
170.	6C54047402	[1]	LABEL,KIT(SAFETY)	; >=57204 0.2090(lbs); 0.095
