凯斯零件查询(RB564) - CASE IH ROUND BALER (7/07-1/14) (18.90) - DIA KIT, GEARBOX CONVERSION, 540 TO 1000 RPM Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
370 次

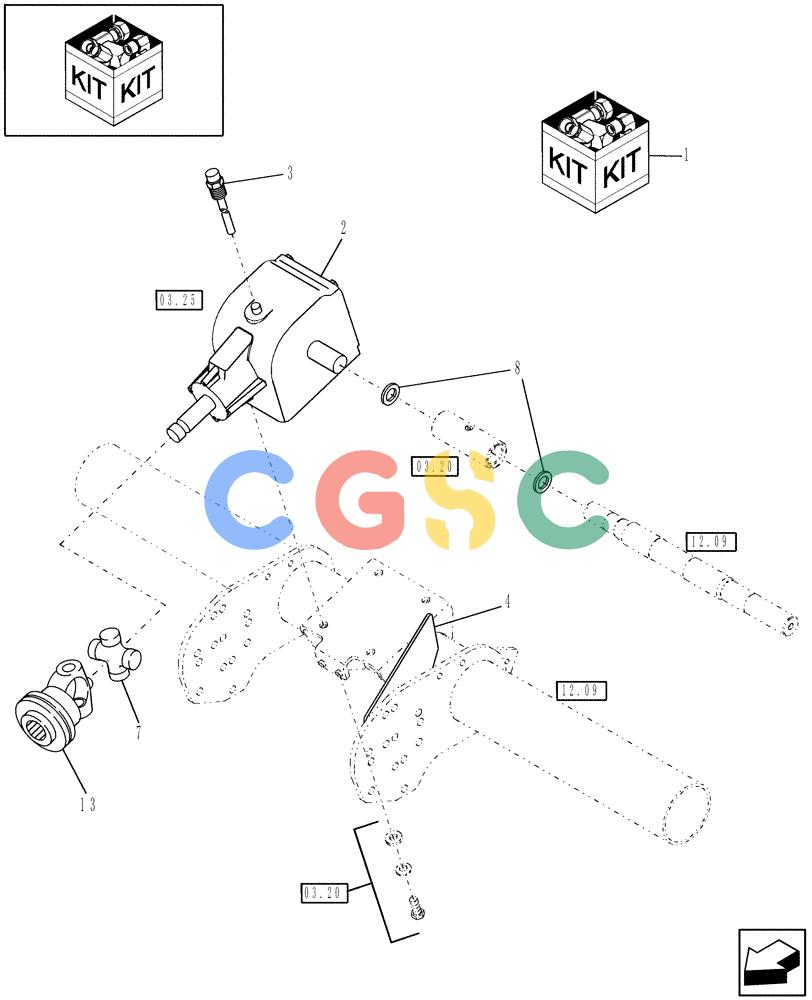

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87702277
|
[1] |
CONVERSION KIT
|
NH
Gearbox Conversion, 540 RPM to 1000 RPM, Includes: Installation Instructions
|
| 2. |
87344585
|
[1] |
GEARBOX
|
PA
1000 RPM
|
| 3. |
86626271
|
[1] |
DIPSTICK
|
NH
|
| 4. |
86637820
|
[1] |
PLATE
|
PA
Fixture
|
| 7. |
87517823
|
[1] |
BEARING ASSY
|
BEL
|
| 8. |
86637370
|
[1] |
SEAL,40mm ID x 52mm OD x 7mm Thk
|
NH
|
| 12. |
87049205
|
[1] |
WARNING DECAL
|
BEL
1000 RPM, English
|
| 12. |
87053157
|
[1] |
DECAL
|
BEL
WARNING, 1000 RPM, French
|
| 13. |
87698723
|
[1] |
YOKE
|
NH
1000 RPM, 1-3/8" - 21 Splines
|
