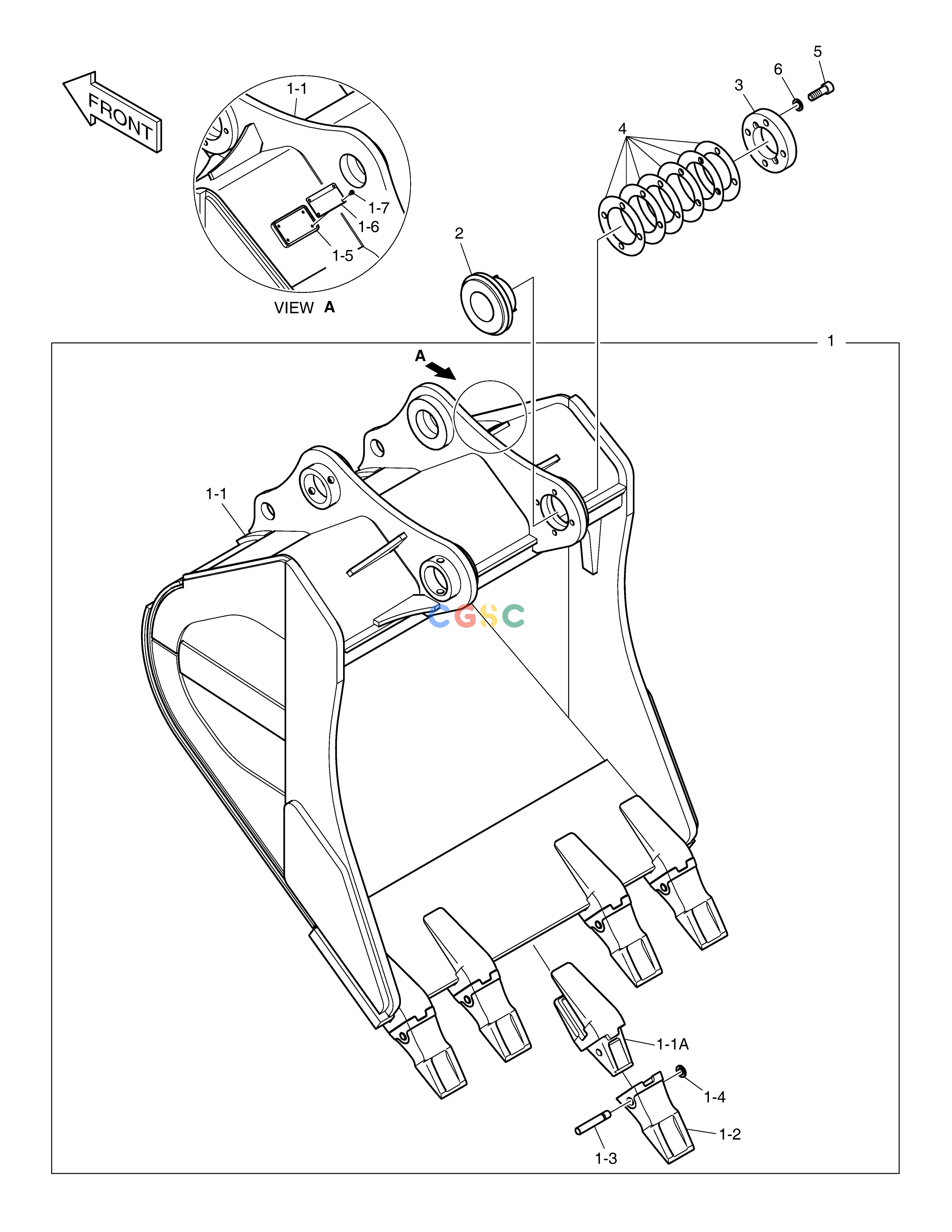

斗山零件查询ROCK BUCKET - 1.28m³(HEAVY DUTY) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
357 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230104-00627
|
[-] |
|
|
| 1. |
230104-00628B
|
[1] |
|
|
| 1-1. |
230104-00629B
|
[1] |
|
|
| 1-1A. |
713-00033A
|
[5] |
ADAPTER;TOOTH
|
|
| 1-2. |
K1005018B
|
[5] |
TOOTH;POINT
|
|
| 1-3. |
705-00006
|
[5] |
PIN;LOCKING
|
|
| 1-4. |
114-00246
|
[5] |
WASHER;LOCKING
|
|
| 1-5. |
110913-00289A
|
[1] |
|
|
| 1-6. |
950209-04415A
|
[1] |
|
|
| 1-7. |
DS0501007
|
[4] |
|
|
| 2. |
K1005253
|
[1] |
BUSH;FLANGE
|
|
| 3. |
K1005254B
|
[1] |
STOPPER
|
|
| 4. |
K1013571
|
[6] |
SHIM
|
|
| 5. |
S2221666
|
[4] |
BOLT;SOCKET
|
|
| 6. |
K1014251
|
[4] |
WASHER;HARDEN
|
|
