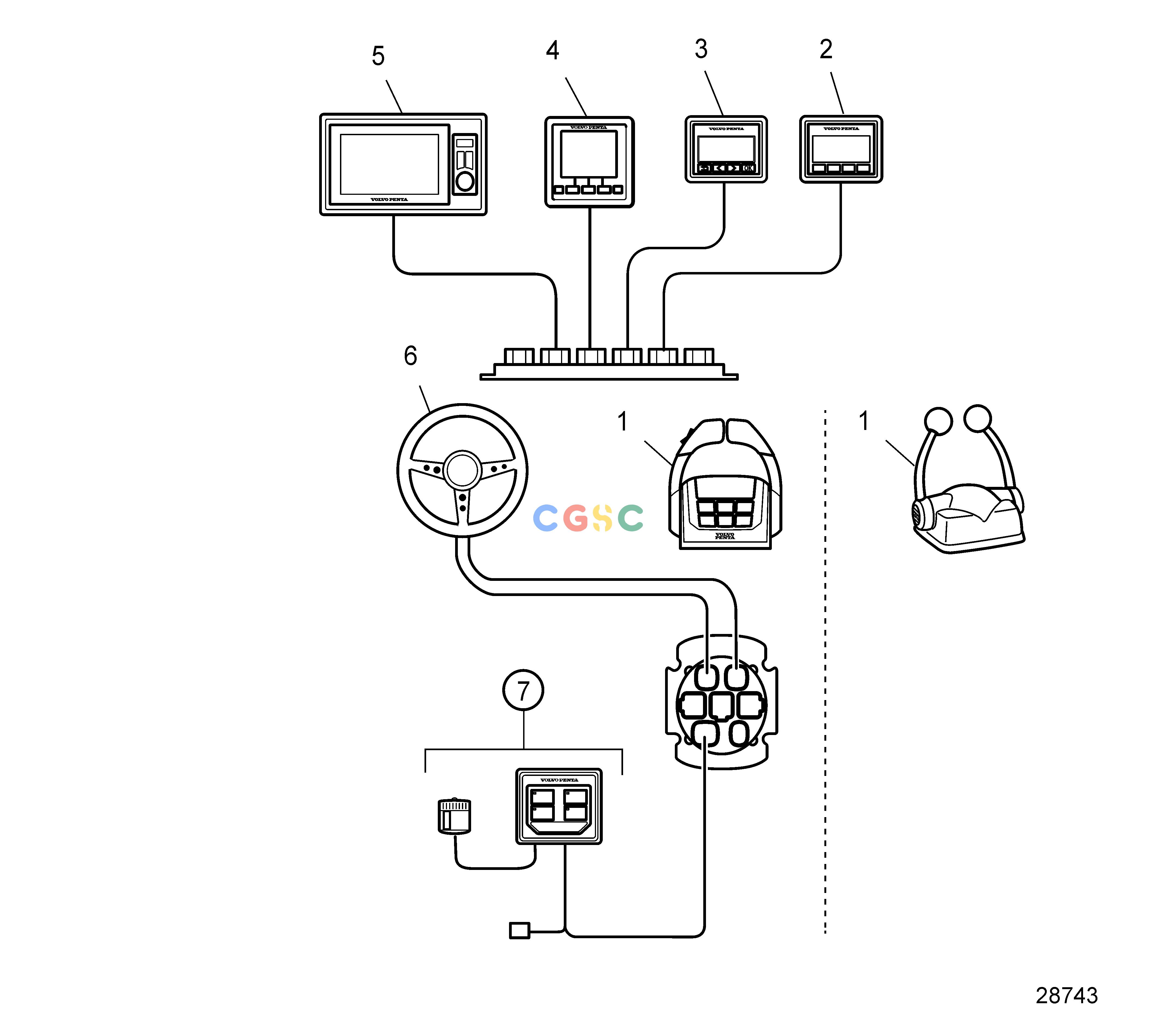

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)Steering SystemFlybridge/Secondary Station, Inboard for EVC-E2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21164027
|
[1] |
Control lever, Single
|
With Neutral Switch
|
| 1. |
21164029
|
[1] |
Control lever, Twin
|
With Neutral Switch
|
| 1. |
22498549
|
[1] |
Control lever, Single
|
Without Trim Buttons
|
| 1. |
22498615
|
[1] |
Control lever, Twin
|
Without Trim Buttons
|
| 1. |
3586259
|
[2] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586261
|
[2] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
21846926
|
[1] |
Display panel, Multifunction Display
|
Start/Stop Panel
|
| 3. |
21846916
|
[1] |
Display panel, 2,5'' Display
|
Not in combination with 4'' or 7'' Display
|
| 4. |
22369186
|
[1] |
Display, 4'' Color Display
|
Not in combination with 2,5'' or 7'' Display
|
| 5. |
22499544
|
[1] |
Display, 7'' Color Display
|
Not in combination with 2,5'' or 4'' Display
|
| 6. |
21469560
|
[1] |
Steering wheel hub
|
Replaced by 22353839
|
| 6. |
22353839
|
[1] |
Steering wheel hub
|
|
| 6. |
22299003
|
[1] |
Steering wheel adjus
|
|
| 7. |
21758351
|
[1] |
Key, e-Key
|
|
