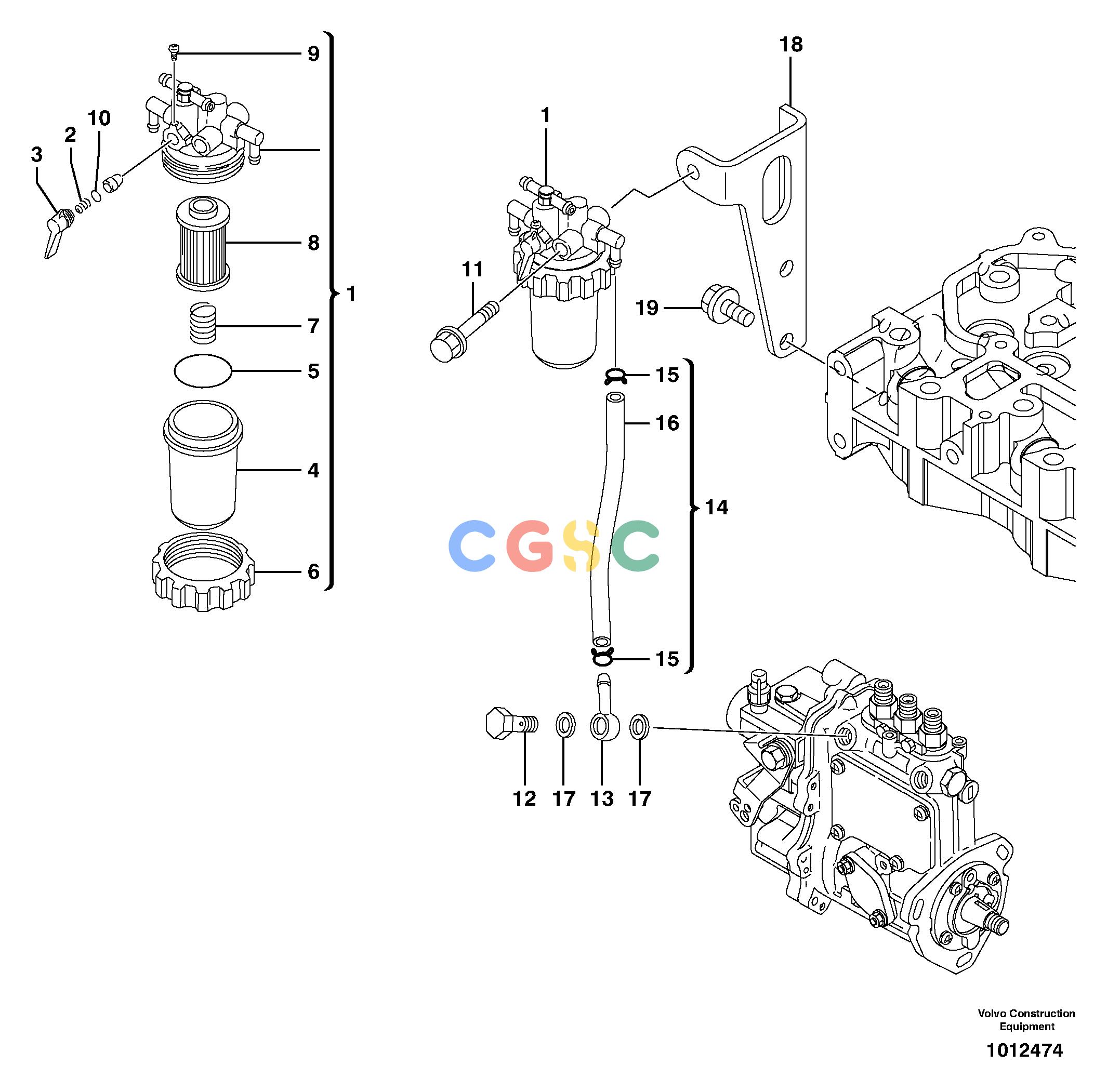

沃尔沃零件查询ECR28 Fuel filterTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
261 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713483
|
[1] |
Fuel filter
|
|
| 2. |
VOE11713781
|
[1] |
Spring
|
|
| 3. |
VOE11713782
|
[1] |
Hand lever
|
|
| 4. |
VOE11713484
|
[1] |
Cup
|
|
| 5. |
VOE11713485
|
[1] |
O-ring
|
|
| 6. |
VOE11713486
|
[1] |
Ring
|
|
| 7. |
VOE11713487
|
[1] |
Spring
|
|
| 8. |
VOE11713230
|
[1] |
Filter
|
|
| 9. |
|
[1] |
Screw
|
ORDER ITEM NO 1
|
| 10. |
VOE11713783
|
[1] |
O-ring
|
|
| 11. |
VOE11713489
|
[1] |
Bolt
|
|
| 12. |
VOE11713490
|
[1] |
Joint nipple
|
|
| 13. |
VOE11713491
|
[1] |
Joint nipple
|
|
| 14. |
VOE11713492
|
[1] |
Hose
|
|
| 15. |
VOE11713474
|
[2] |
Clamp
|
|
| 16. |
VOE11713496
|
[1] |
Hose
|
|
| 17. |
VOE11713313
|
[2] |
Seal
|
|
| 18. |
VOE11713493
|
[1] |
Bracket
|
|
| 19. |
VOE14525410
|
[2] |
Bolt
|
|
