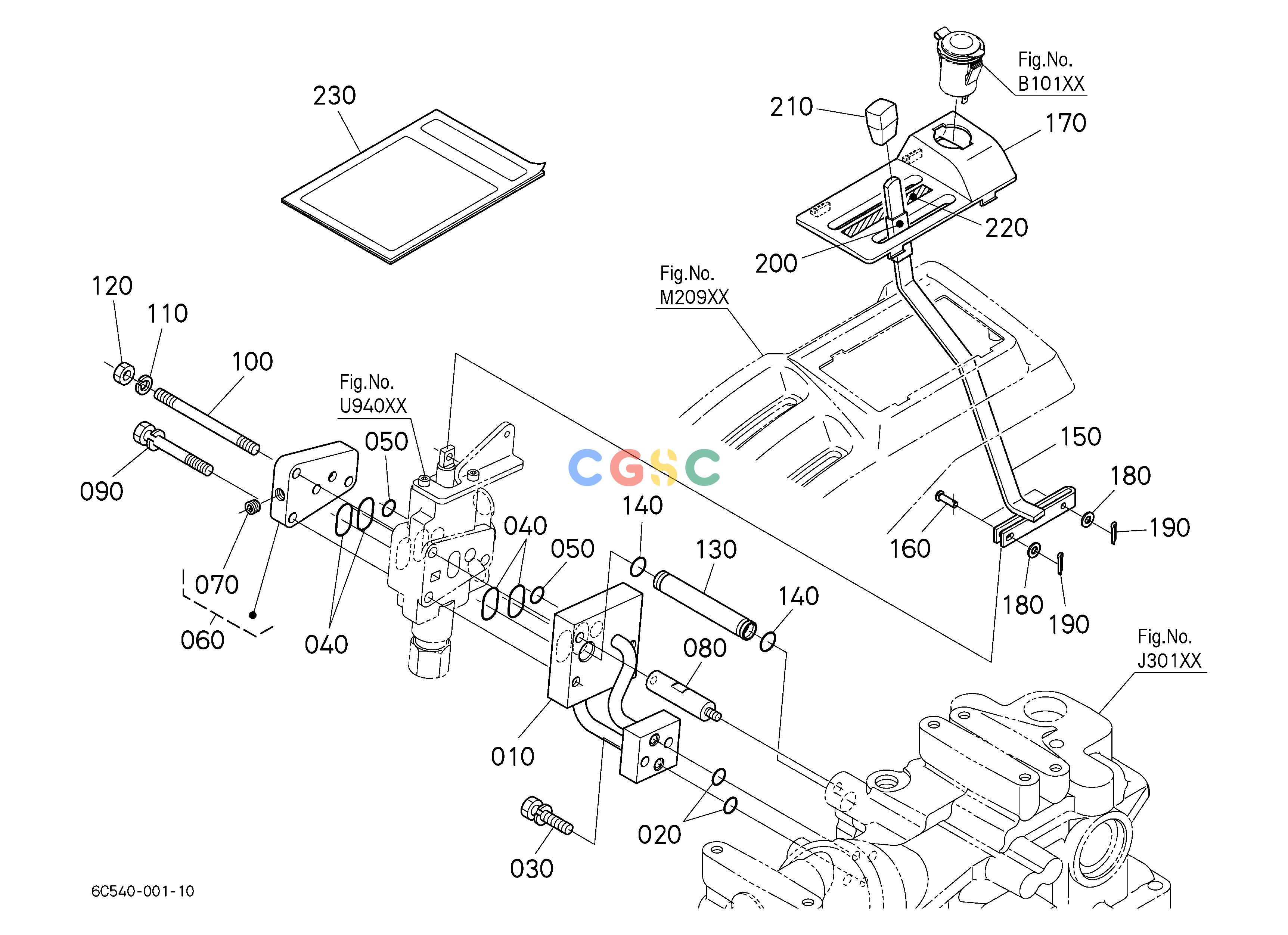

久保田零件查询U94301 AUXILIARY CONTROL VALVE LEVER (1ST)(W/G No.B1654)[OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
673 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54093200
|
[1] |
BRACKET,COMP(AUX.CON.VALV)
|
2.0680(lbs); 0.940
|
| 020. |
0481700070
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0112350830
|
[2] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 040. |
0481705200
|
[4] |
O RING
|
0.0044(lbs); 0.002
|
| 050. |
0481700100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
6C54093182
|
[1] |
COVER,ASSY(AUX.CONT.VALVE)
|
0.6864(lbs); 0.312
|
| 070. |
3135137160
|
[1] |
PLUG
|
0.0066(lbs); 0.003
|
| 080. |
6C54093110
|
[1] |
BOLT(AUX.CONT.VALVE)
|
0.3740(lbs); 0.170
|
| 090. |
0112350865
|
[2] |
BOLT,SEMS
|
0.0572(lbs); 0.026
|
| 100. |
0151850870
|
[1] |
BOLT,STUD
|
0.0660(lbs); 0.030
|
| 110. |
0451250080
|
[1] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 120. |
0211450080
|
[1] |
HEX.NUT
|
0.0110(lbs); 0.005
|
| 130. |
6C20093120
|
[1] |
PIPE,RETURN
|
0.0770(lbs); 0.035
|
| 140. |
0481700110
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
6C54093150
|
[1] |
LEVER(AUX.CON.VALVE)
|
0.4510(lbs); 0.205
|
| 160. |
6802132790
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 170. |
6C54093170
|
[1] |
GUIDE(AUX.CONTROL)
|
0.1012(lbs); 0.046
|
| 180. |
0401350050
|
[2] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 190. |
0551151210
|
[2] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 200. |
3274193190
|
[1] |
TUBE,LEVER
|
0.0022(lbs); 0.001
|
| 210. |
TD06096260
|
[1] |
GRIP,AUX.CONTR.LEVER
|
0.0286(lbs); 0.013
|
| 220. |
TA04049612
|
[1] |
MARK,AUX.CONT.VALVE
|
0.0022(lbs); 0.001
|
| 230. |
99999-99999
|
[1] |
MANUAL,INST
|
0.0000(lbs); 0.000
|
