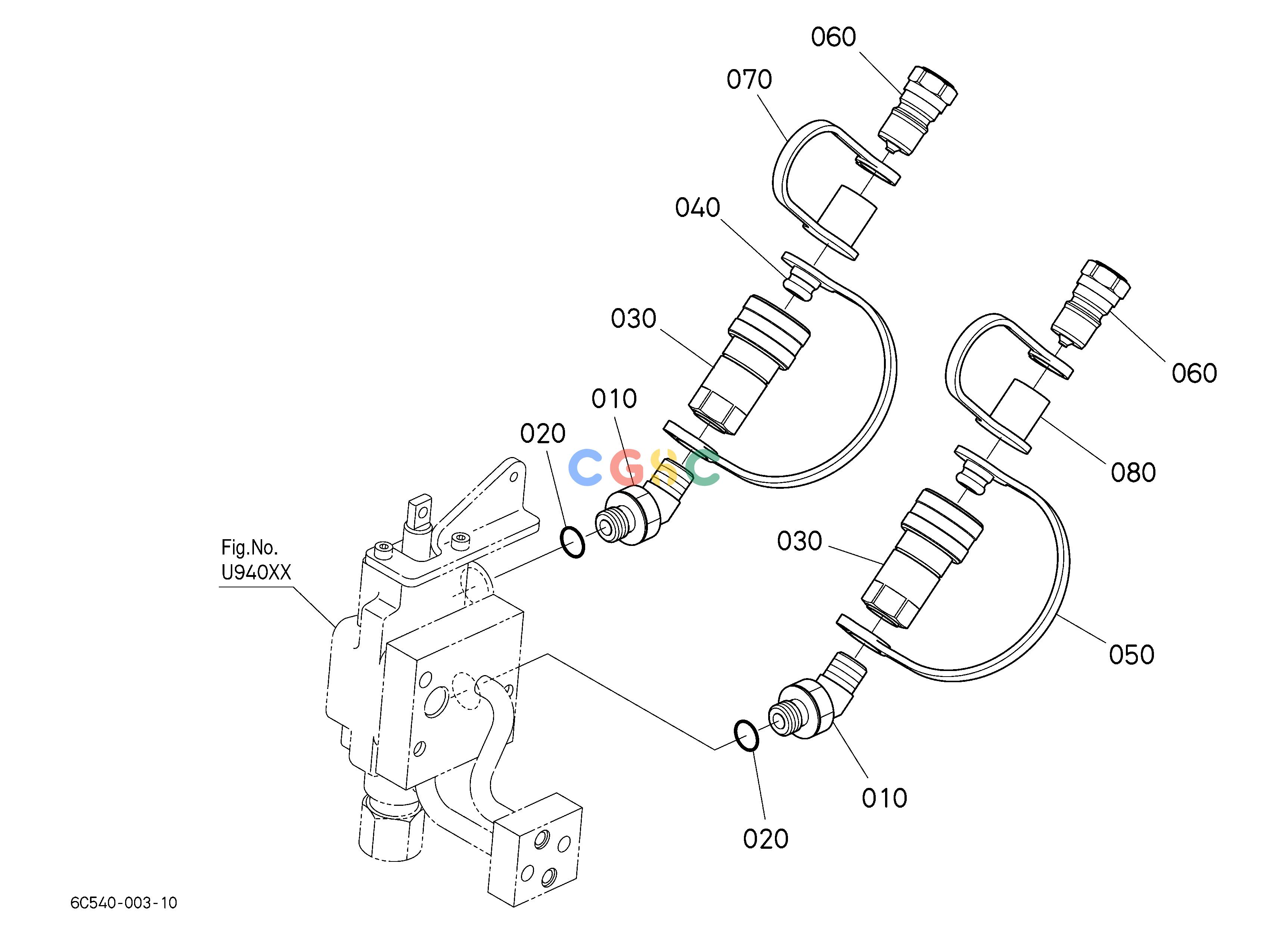

久保田零件查询U94501 AUXILIARY CONTROL VALVE COUPLER (1ST)(W/G No.B1654)[OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
579 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C54093140
|
[2] |
JOINT(AUX.CONT.VALVE)
|
0.1870(lbs); 0.085
|
| 020. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
7J61266323
|
[2] |
1/4 COUPLER HNV14NPT
|
0.0000(lbs); 0.000
|
| 040. |
7J24566310
|
[1] |
1/4" PLUG,DUST (72PDP-4B)
|
0.0308(lbs); 0.014
|
| 050. |
7J24566320
|
[1] |
1/4" PLUG,DUST (PDP-4YY)
|
0.0396(lbs); 0.018
|
| 060. |
7J61266223
|
[2] |
1/4 NIPPLE HNV14NPTM
|
0.0704(lbs); 0.032
|
| 070. |
6C30039512
|
[1] |
CAP,BLUE
|
0.0176(lbs); 0.008
|
| 080. |
6C30039522
|
[1] |
CAP,YELLOW
|
0.0176(lbs); 0.008
|
