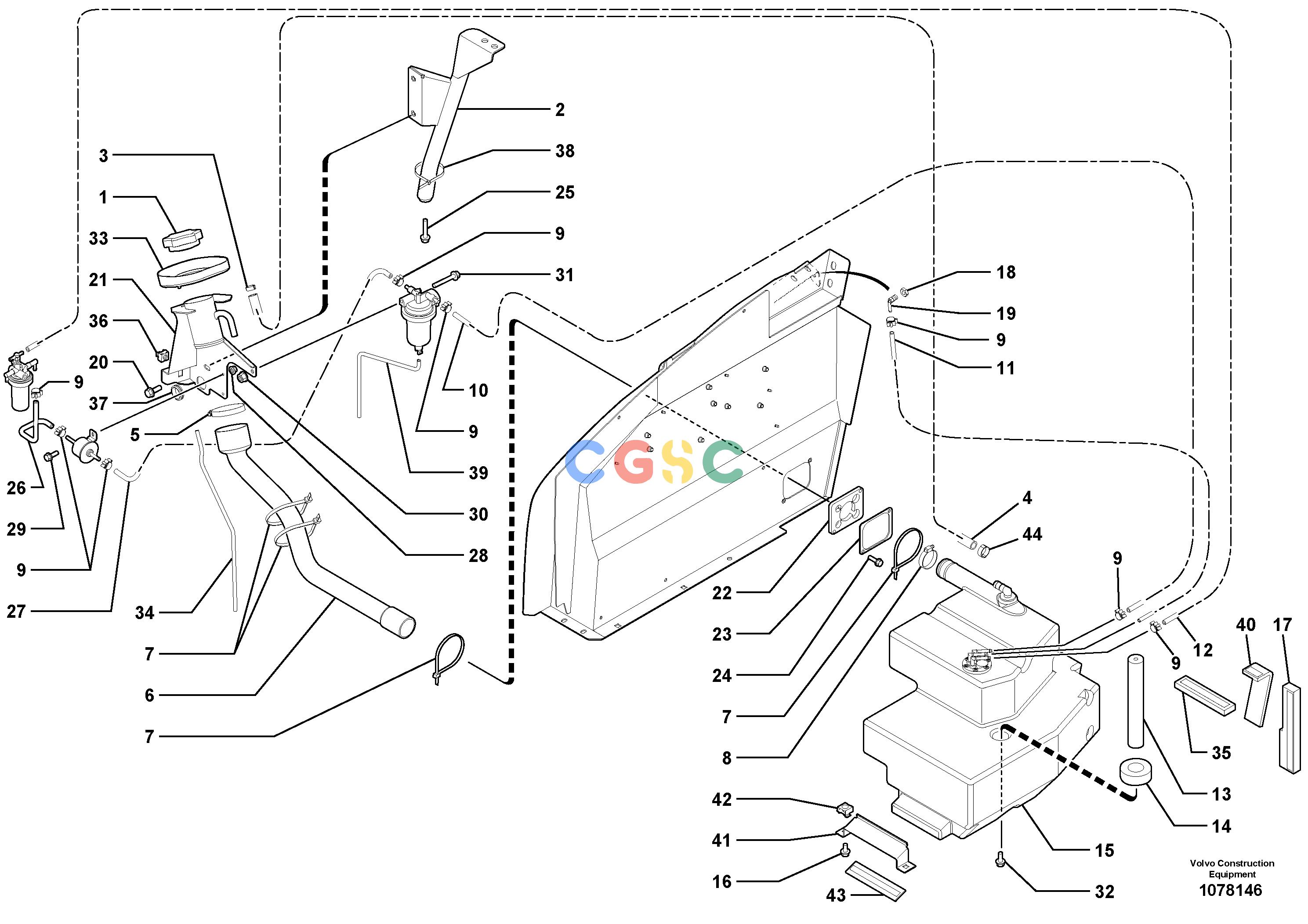

沃尔沃零件查询ECR28 Fuel circuitTYPE 601601.10151-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11802315
|
[1] |
Plug
|
|
| 2. |
VOE11802198
|
[1] |
Support
|
|
| 3. |
VOE947520
|
[0002] |
Hose clamp
|
|
| 4. |
VOE11802007
|
[1] |
Tube
|
L = 950MM
|
| 5. |
VOE943482
|
[1] |
Hose clamp
|
|
| 6. |
VOE11800920
|
[1] |
Pipe
|
|
| 7. |
VOE4881440
|
[4] |
Cable tie
|
|
| 8. |
VOE943479
|
[1] |
Hose clamp
|
|
| 9. |
VOE15681496
|
[8] |
Clamp
|
|
| 10. |
VOE15681443
|
[REQ] |
Tube
|
L = 1320 MM
|
| 11. |
VOE15681443
|
[REQ] |
Tube
|
L = 1700 MM
|
| 12. |
VOE15681443
|
[REQ] |
Tube
|
L = 1600 MM
|
| 13. |
VOE11802203
|
[1] |
Support
|
|
| 14. |
VOE11801961
|
[REQ] |
Oil tank
|
|
| 15. |
|
[1] |
Fuel tank
|
|
| 16. |
VOE946329
|
[2] |
Flange screw
|
|
| 17. |
VOE11803367
|
[1] |
Rubber plate
|
|
| 18. |
VOE11802318
|
[1] |
Nut
|
|
| 19. |
VOE11802319
|
[1] |
Elbow
|
|
| 20. |
VOE946441
|
[2] |
Flange screw
|
|
| 21. |
VOE11801284
|
[1] |
Bonnet support
|
|
| 22. |
VOE11802201
|
[1] |
Rubber Seal
|
|
| 23. |
VOE11802202
|
[1] |
Flange
|
|
| 24. |
VOE60113082
|
[2] |
Flange screw
|
|
| 25. |
VOE965193
|
[1] |
Flange screw
|
|
| 26. |
VOE15681443
|
[REQ] |
Tube
|
L = 320 MM
|
| 27. |
VOE15681443
|
[REQ] |
Tube
|
L = 400 MM
|
| 28. |
VOE945407
|
[2] |
Flange nut
|
|
| 29. |
VOE946934
|
[2] |
Flange screw
|
|
| 30. |
VOE945408
|
[1] |
Flange nut
|
|
| 31. |
VOE965181
|
[1] |
Flange screw
|
|
| 32. |
VOE965191
|
[1] |
Flange screw
|
|
| 33. |
VOE11801650
|
[1] |
Deflector
|
|
| 34. |
VOE11802782
|
[1] |
Tube
|
|
| 35. |
VOE11802930
|
[1] |
Spacer
|
|
| 36. |
VOE11802303
|
[2] |
Cage nut
|
|
| 37. |
VOE11803295
|
[1] |
Grommet
|
|
| 38. |
VOE11043109
|
[1] |
Cable tie
|
|
| 39. |
VOE11802782
|
[1] |
Tube
|
|
| 40. |
VOE11803368
|
[1] |
Rubber plate
|
|
| 41. |
VOE11802323
|
[1] |
Flange
|
|
| 42. |
VOE11802303
|
[2] |
Cage nut
|
|
| 43. |
VOE11802324
|
[1] |
Strap
|
|
| 44. |
VOE943472
|
[REQ] |
Hose clamp
|
|
