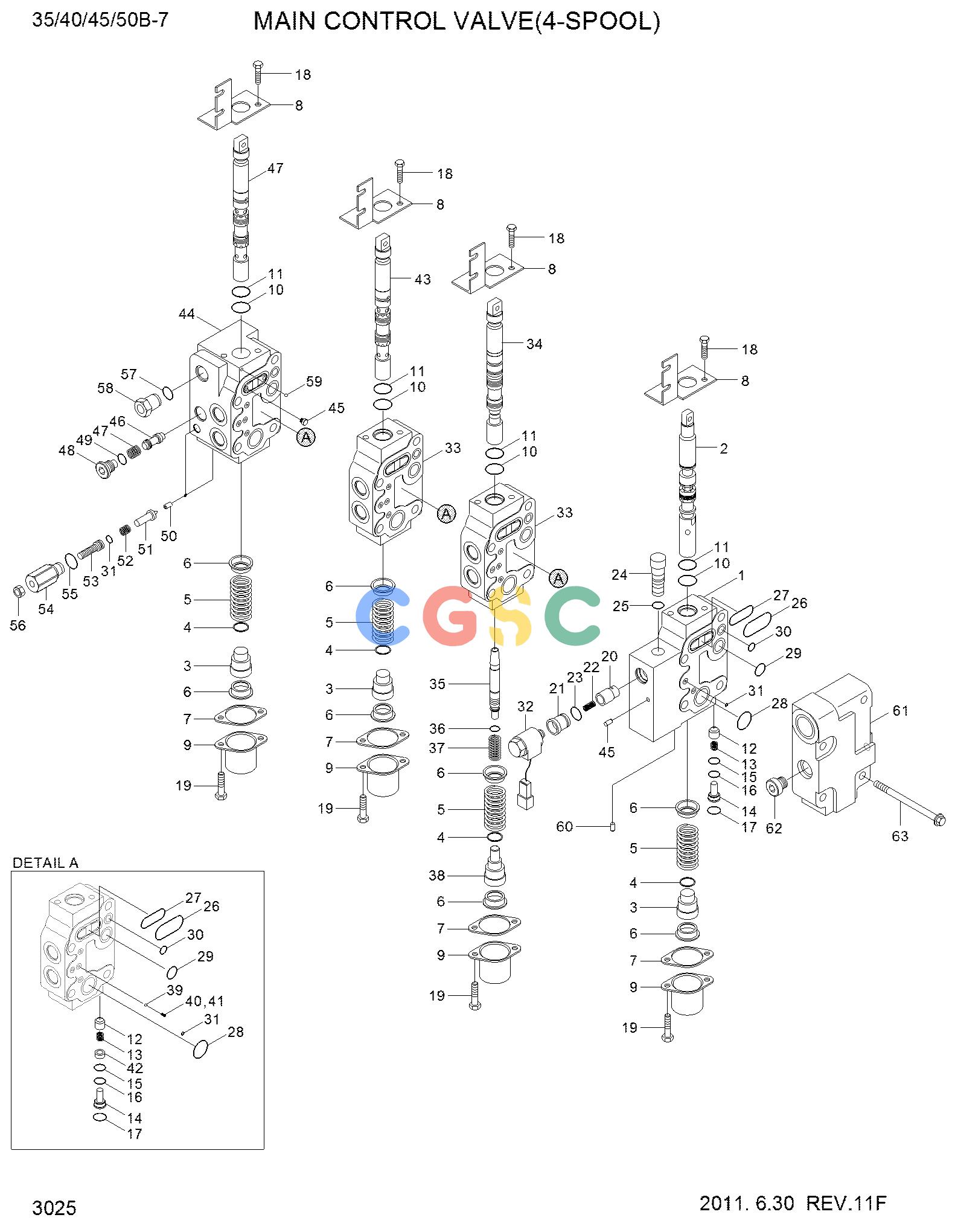

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| . | 33FS-02010 | [1] | MAIN CONTROL VALVE | |
| . | 33FS-02011 | [1] | MCV-4SPOOL | |
| . | 33FS-02010 | [1] | MAIN CONTROL VALVE | |
| . | 33FS-02011 | [1] | MCV-4SPOOL | |
| 1. | @ | [1] | SECTION-INLET | SEE 3030 |
| 2. | @ | [1] | SECTION-LIFT | SEE 3050 |
| 3. | @ | [1] | SECTION-TILT | SEE 3060 |
| 4. | @ | [1] | BLOCK ASSY-REACH | SEE 3070 |
| 5. | @ | [2] | SECTION-AUXILIARY | SEE 3080 |
| 6. | @ | [1] | SECTION-OUTLET | SEE 3040 |
| K7. | XKBF-01059 | [4] | LONG BOLT | |
| K8. | XKBF-00566 | [4] | NUT | |
| K. | XKBF-01060 | [1] | LONG BOLT KIT | SEE ILLUST |
