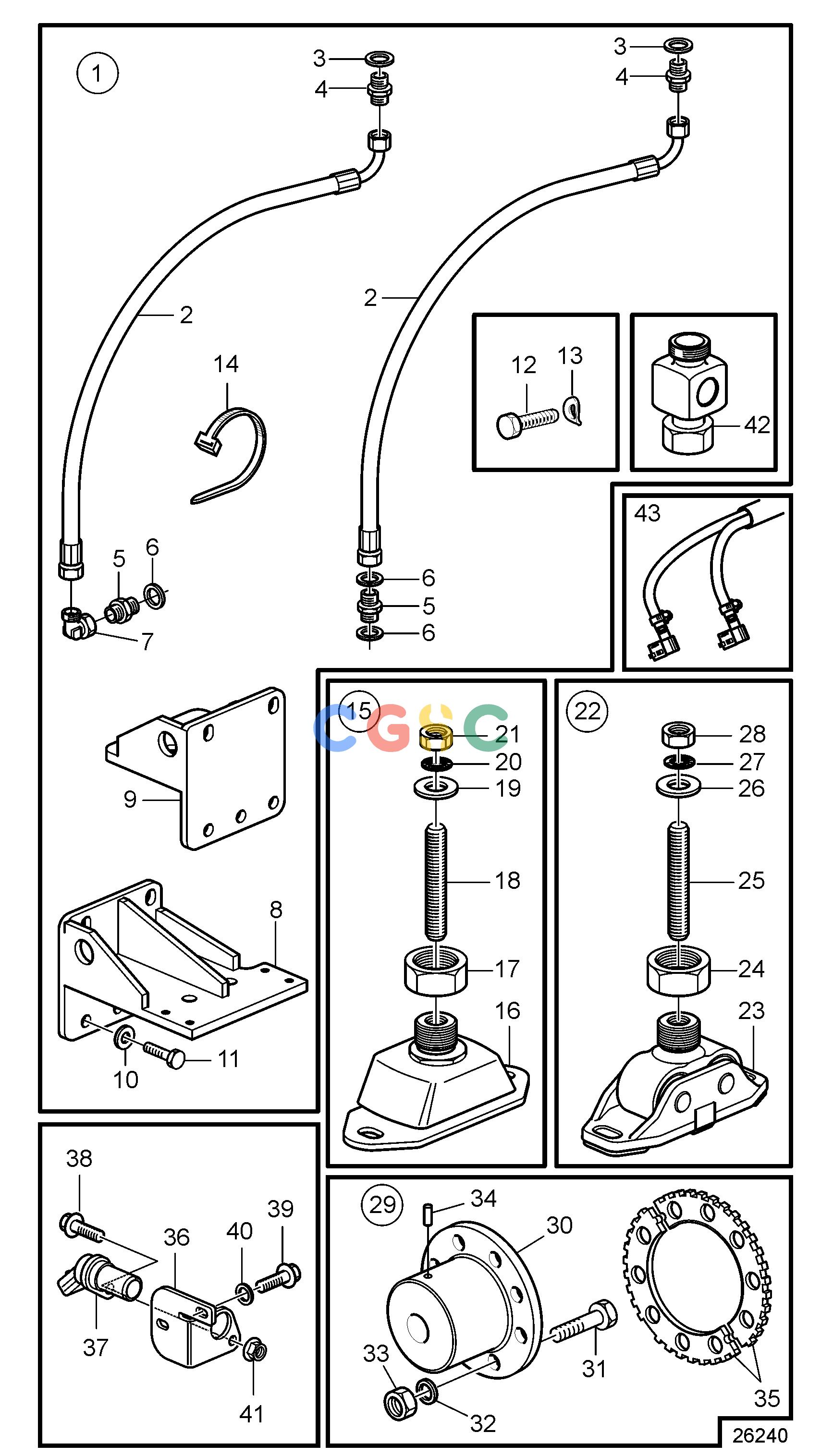

沃尔沃零件查询D13B-E MH; D13B-E MH (FE); D13B-N MH; D13B-N MH (FE)TransmissionsConnecting Components MGX5114SC-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
749 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21322361
|
[2] |
Oil hose
|
|
| 3. |
976932
|
[2] |
Gasket
|
|
| 4. |
943986
|
[2] |
Nipple
|
|
| 5. |
994328
|
[2] |
Nipple
|
|
| 6. |
947629
|
[3] |
Gasket
|
|
| 7. |
946369
|
[1] |
Elbow nipple
|
|
| 8. |
863967
|
[1] |
Bracket
|
Starboard
|
| 9. |
863966
|
[1] |
Bracket
|
Port
|
| 10. |
941912
|
[10] |
Spring washer
|
|
| 11. |
955363
|
[10] |
Hexagon screw
|
|
| 12. |
984755
|
[12] |
Flange screw, reverse gear
|
|
| 12. |
965226
|
[8] |
Flange screw, coupling
|
|
| 13. |
941908
|
[10] |
Spring washer
|
|
| 13. |
940280
|
[8] |
Spring washer
|
|
| 14. |
1075407
|
[1] |
Cable tie
|
|
| 15. |
21593939
|
[2] |
Rubber cushion kit
|
|
| 16. |
21586050
|
[1] |
Rubber cushion
|
|
| 17. |
3839409
|
[1] |
Hexagon nut
|
|
| 18. |
3839410
|
[1] |
Adjusting screw
|
|
| 19. |
120224
|
[1] |
Washer
|
|
| 20. |
847766
|
[1] |
Lock washer
|
|
| 21. |
990973
|
[1] |
Hexagon nut
|
|
| 22. |
3843493
|
[2] |
Rubber cushion kit
|
|
| 23. |
|
|
|
|
| 24. |
3840980
|
[1] |
Nut
|
|
| 25. |
3817323
|
[1] |
Adjusting screw
|
|
| 26. |
991994
|
[1] |
Washer
|
|
| 27. |
990697
|
[1] |
Lock washer
|
|
| 28. |
990973
|
[1] |
Hexagon nut
|
|
| 29. |
|
|
|
|
| 30. |
844765
|
[1] |
Clutch flange
|
|
| 31. |
955764
|
[8] |
Hexagon screw
|
|
| 32. |
941915
|
[8] |
Spring washer
|
|
| 33. |
950380
|
[8] |
Lock nut
|
|
| 34. |
|
|
|
|
| 35. |
3819856
|
[2] |
Sprocket wheel
|
|
| 36. |
3840435
|
[1] |
Bracket
|
|
| 37. |
20513343
|
[1] |
Sensor
|
|
| 38. |
984725
|
[1] |
Flange screw
|
|
| 39. |
967949
|
[2] |
Flange screw
|
|
| 40. |
949607
|
[2] |
Spring washer
|
|
| 41. |
990949
|
[1] |
Flange lock nut
|
|
| 42. |
21430896
|
[1] |
Connecting block
|
|
| 43. |
21159075
|
[1] |
Wiring harness
|
|
