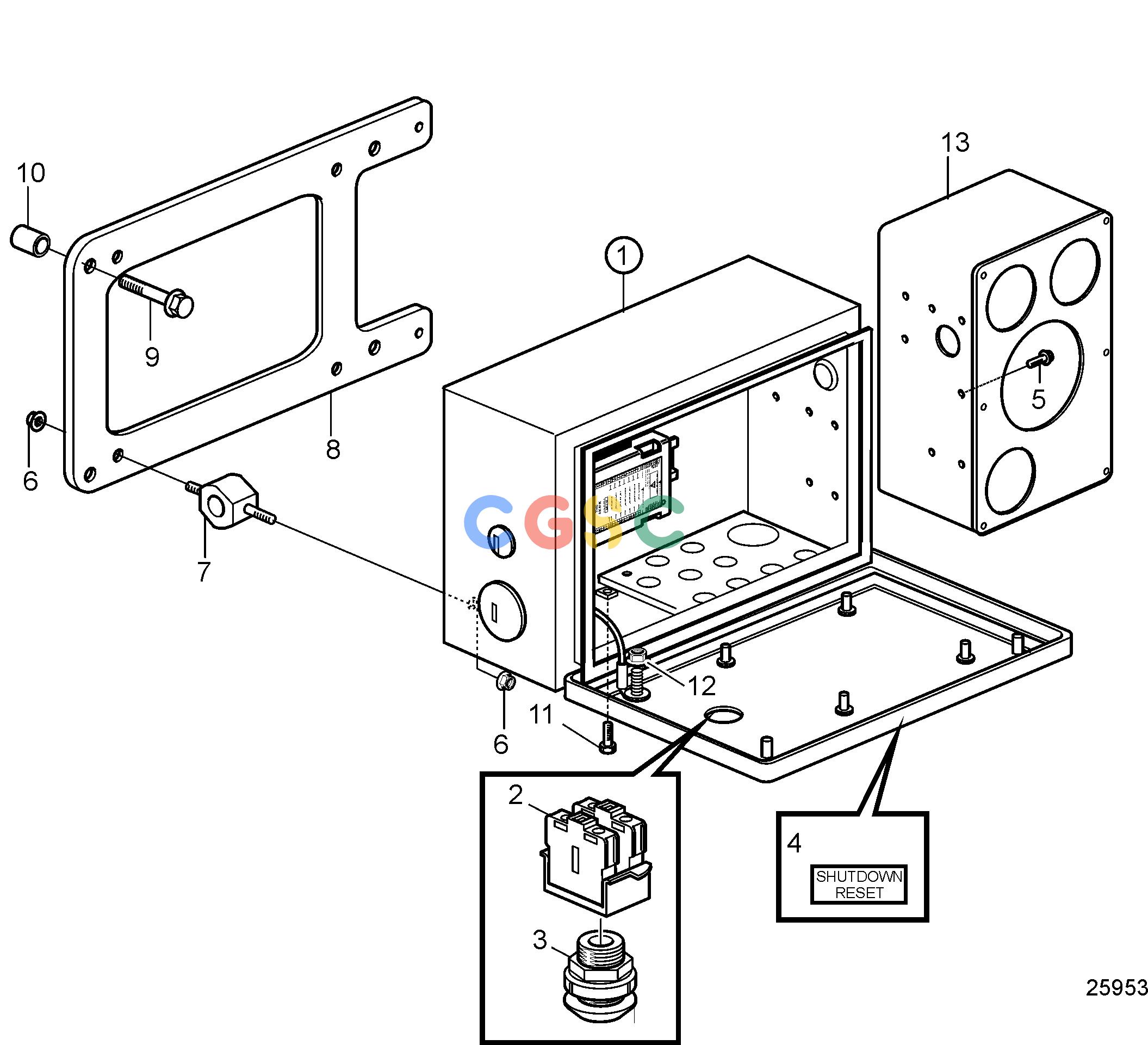

沃尔沃零件查询D13B-J MP; D13B-M MPElectrical SystemElectrical system. Shutdown unit, mounted on heat exchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
532 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21350815
|
[1] |
Box
|
|
| 2. |
3817575
|
[1] |
Contact unit
|
|
| 3. |
3817578
|
[1] |
Push button
|
|
| 4. |
3586456
|
[1] |
Label
|
|
| 5. |
974680
|
[7] |
Plug
|
|
| 6. |
990939
|
[8] |
Flange nut
|
|
| 7. |
3839156
|
[4] |
Rubber cushion
|
|
| 8. |
21250917
|
[1] |
Bracket
|
|
| 9. |
984738
|
[4] |
Flange screw
|
|
| 10. |
821540
|
[4] |
Spacer sleeve
|
|
| 11. |
967949
|
[4] |
Flange screw
|
|
| 12. |
990940
|
[2] |
Flange nut
|
|
| 13. |
3594686
|
[1] |
Instrument casing
|
|
