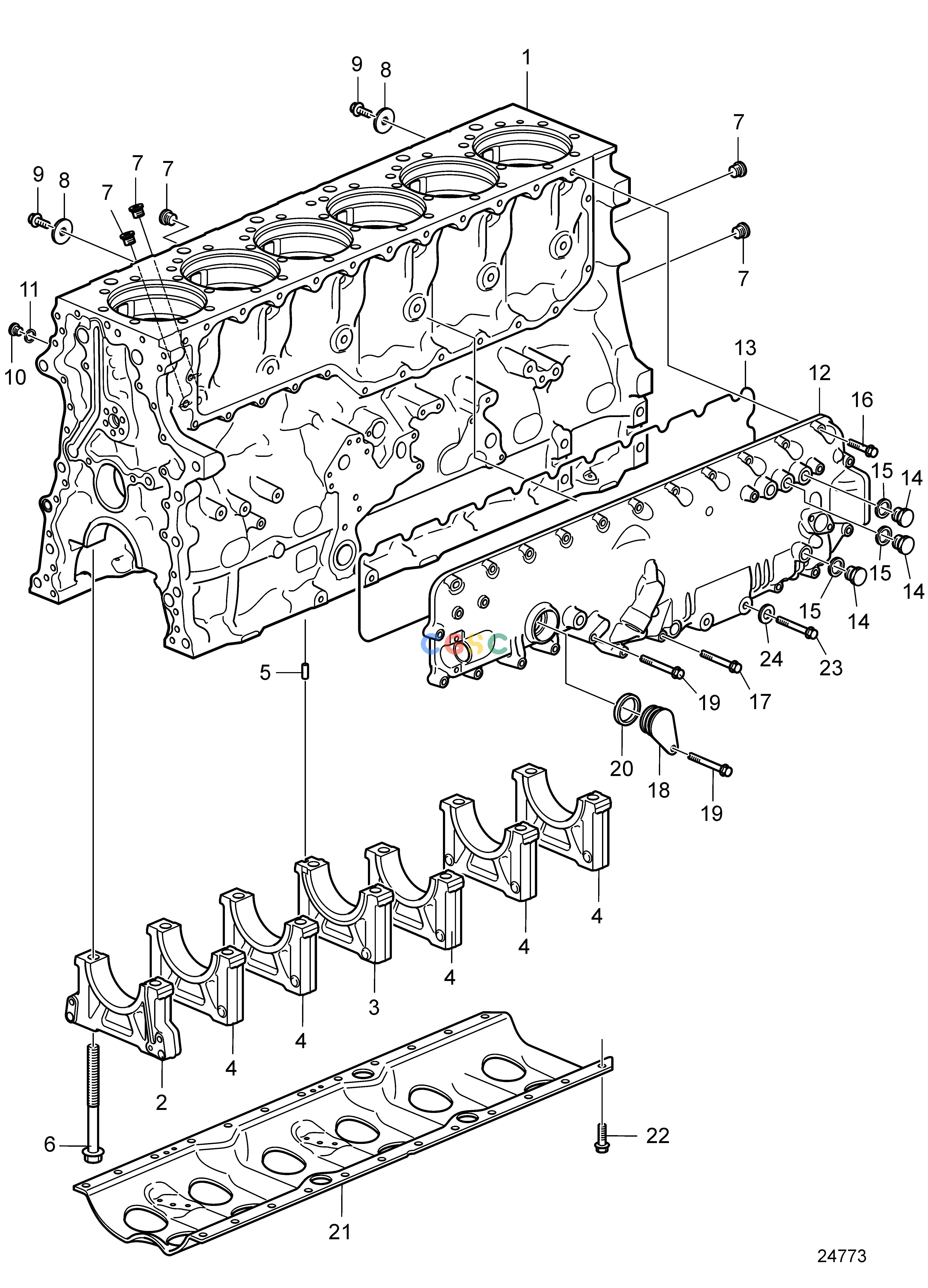

沃尔沃零件查询D13B-J MP; D13B-M MPEngineCylinder BlockEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21048297
|
[1] |
Cylinder block
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
422426
|
[1] |
Pivot pin
|
|
| 6. |
21345129
|
[14] |
Flange screw
|
|
| 7. |
984793
|
[5] |
Plug
|
|
| 8. |
947541
|
[2] |
Washer
|
|
| 9. |
984752
|
[2] |
Flange screw
|
|
| 10. |
966142
|
[1] |
Plug
|
|
| 11. |
11994
|
[1] |
Gasket
|
|
| 12. |
21677248
|
[1] |
Cover
|
|
| 13. |
21294062
|
[1] |
Gasket
|
|
| 14. |
960632
|
[3] |
Plug
|
|
| 15. |
21024032
|
[3] |
Sealing ring
|
|
| 16. |
994385
|
[14] |
Flange screw
|
L=45mm
|
| 17. |
984741
|
[7] |
Flange screw
|
L=70mm
|
| 18. |
21162206
|
[1] |
Plug
|
|
| 19. |
984742
|
[2] |
Flange screw
|
|
| 20. |
1547253
|
[1] |
Sealing ring
|
|
| 21. |
20499612
|
[1] |
Frame
|
|
| 22. |
946472
|
[24] |
Flange screw
|
|
