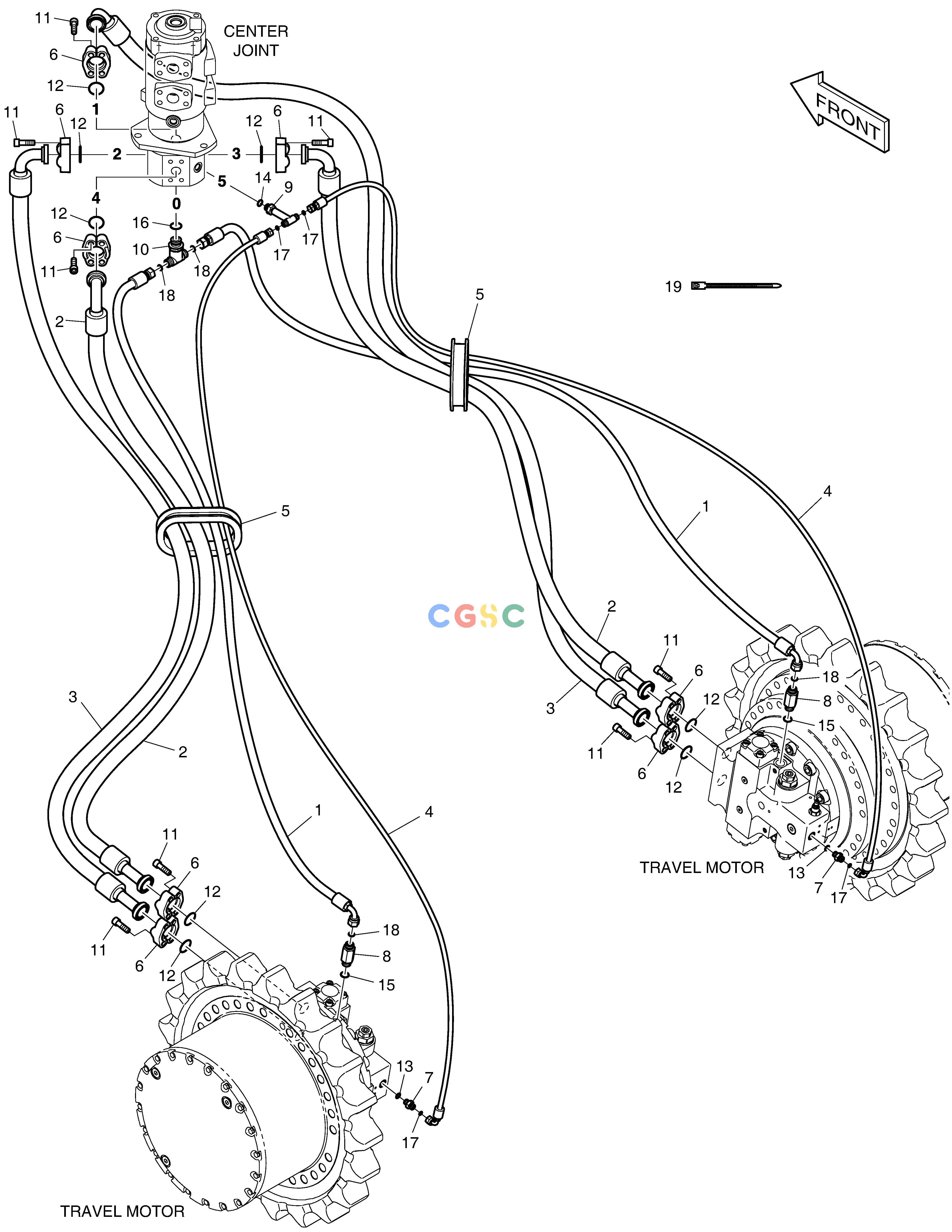

斗山零件查询TRAVEL PIPING-3m TRACK DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07989
|
[-] |
|
|
| 1. |
DS20131635
|
[2] |
|
|
| 10. |
DS2418010
|
[1] |
|
|
| 11. |
S2215466
|
[32] |
BOLT
|
|
| 12. |
2180-1026D19
|
[8] |
O-RING
|
|
| 13. |
S8000111
|
[2] |
O-RING
|
|
| 14. |
S8000141
|
[1] |
O-RING
|
|
| 15. |
S8000181
|
[2] |
O-RING
|
|
| 16. |
S8000241
|
[1] |
O-RING
|
|
| 17. |
S8030041
|
[4] |
O-RING
|
|
| 18. |
S8030081
|
[4] |
O-RING
|
|
| 19. |
2124-1084D1
|
[10] |
CLIP;BAND
|
|
| 2. |
DS20401121
|
[2] |
|
|
| 3. |
DS20401045
|
[2] |
|
|
| 4. |
DS2121223
|
[2] |
|
|
| 5. |
K1004416
|
[2] |
GROMMET
|
|
| 6. |
2181-9081
|
[16] |
FLANGE;SPLIT
|
|
| 7. |
2181-4133D1
|
[2] |
ADAPTER
|
|
| 8. |
DS2232178
|
[2] |
|
|
| 9. |
DS2418009
|
[1] |
|
|
