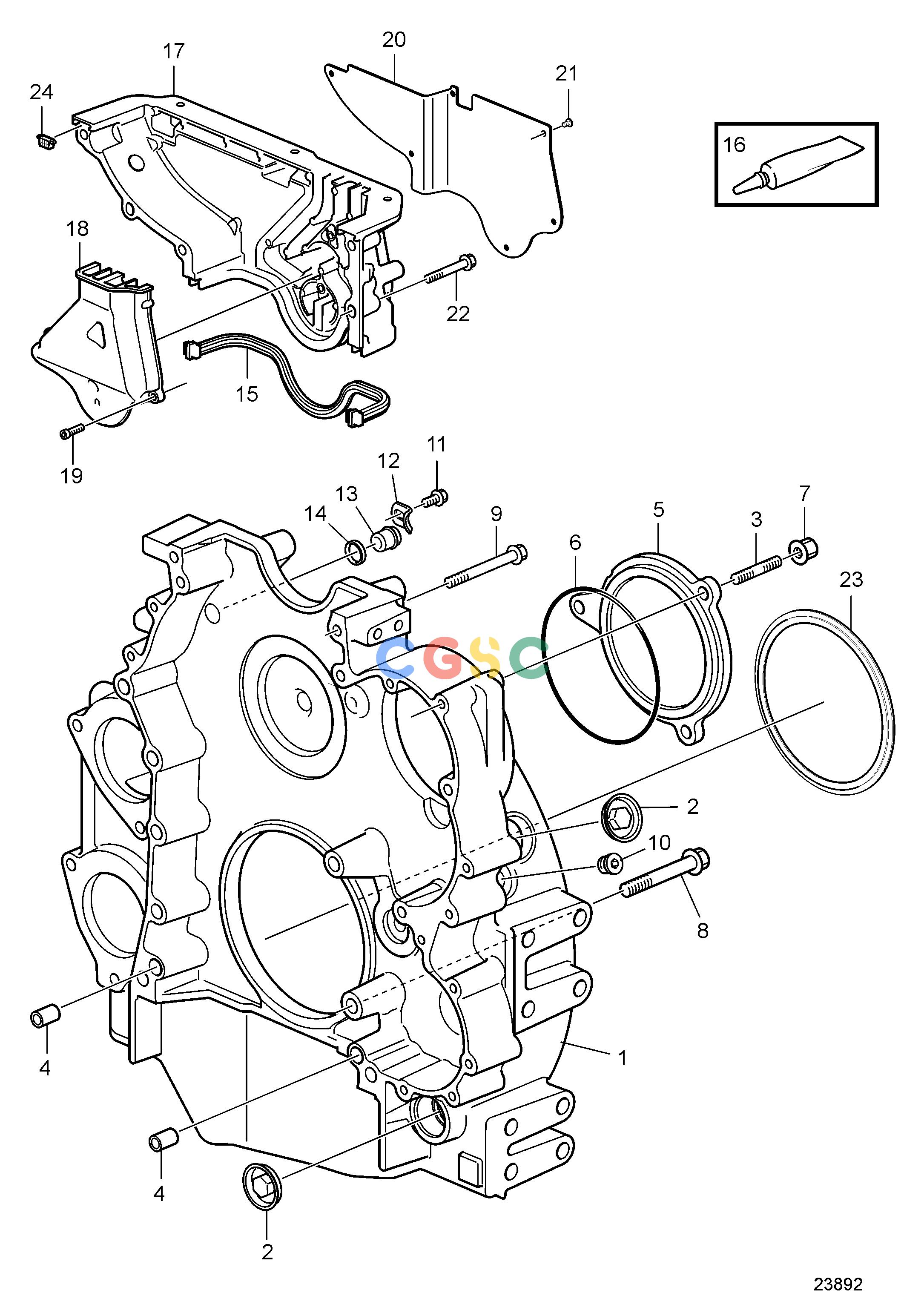

沃尔沃零件查询D13B-J MP; D13B-M MPEngineFlywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
492 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21583903
|
[1] |
Flywheel housing
|
|
| 2. |
15134976
|
[2] |
Plug
|
|
| 3. |
924098
|
[3] |
Stud
|
|
| 4. |
1547940
|
[2] |
Pivot pin
|
|
| 5. |
3887047
|
[1] |
Cover
|
|
| 6. |
992065
|
[1] |
O-ring
|
|
| 7. |
979230
|
[3] |
Flange nut
|
|
| 8. |
966367
|
[9] |
Flange screw
|
|
| 9. |
984761
|
[4] |
Flange screw
|
|
| 10. |
966144
|
[1] |
Plug
|
|
| 11. |
984733
|
[1] |
Flange screw
|
|
| 12. |
1546531
|
[1] |
Lock brace
|
|
| 13. |
|
|
|
|
| 14. |
1547255
|
[1] |
Sealing ring
|
|
| 15. |
20817742
|
[1] |
Gasket
|
|
| 16. |
1161277
|
[1] |
Sealant
|
20g
|
| 16. |
1161231
|
[1] |
Sealant
|
304ml
|
| 17. |
21383314
|
[1] |
Timing gear cover
|
|
| 18. |
|
|
|
|
| 19. |
940326
|
[4] |
Hex. socket screw
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
994441
|
[5] |
Flange screw
|
|
| 23. |
85108352
|
[1] |
Crankshaft seal
|
|
| 24. |
21185132
|
[2] |
Sealing
|
|
