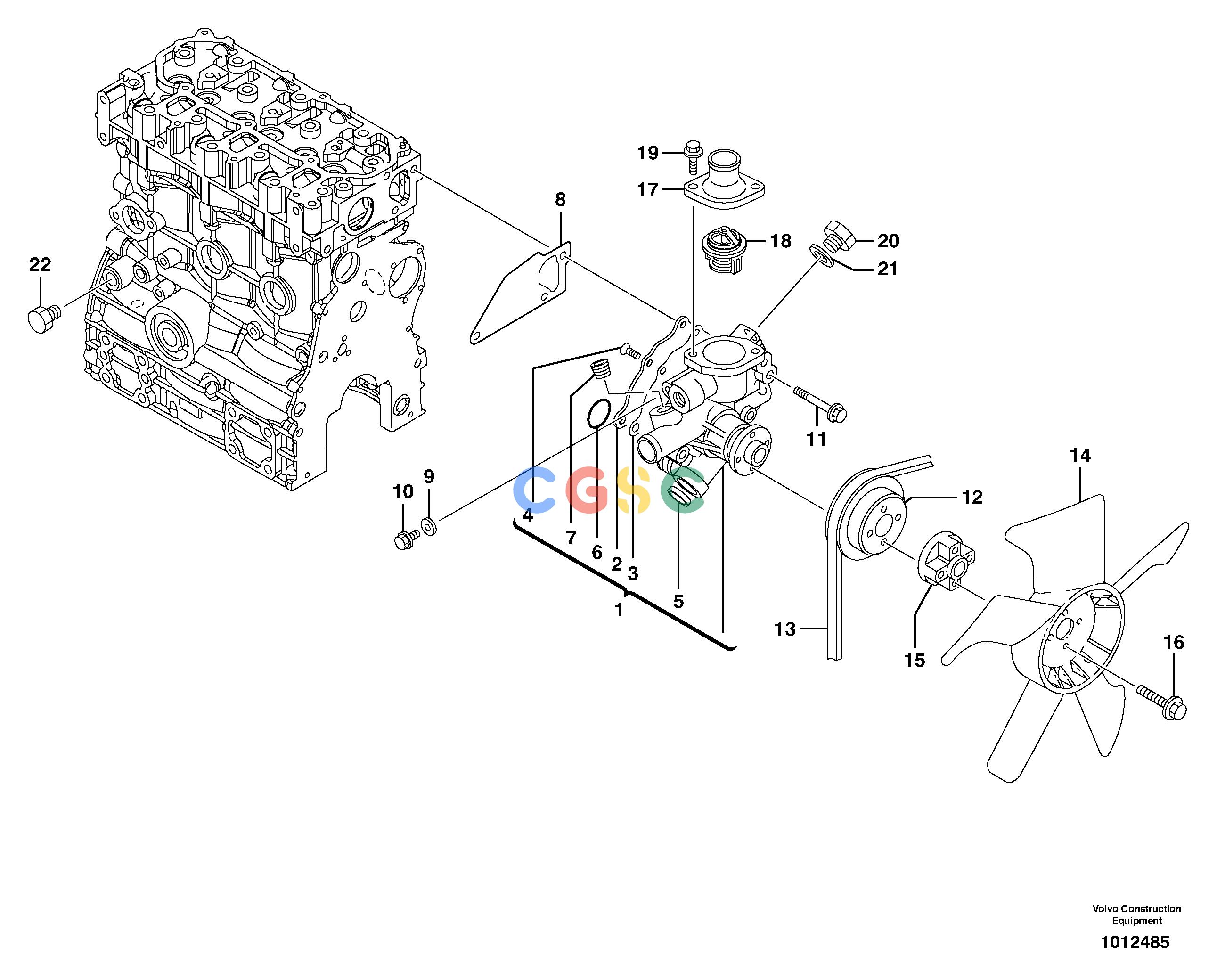

沃尔沃零件查询ECR28 Water pumpTYPE 60111801174-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
509 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713443
|
[1] |
Coolant pump
|
|
| 2. |
VOE11713444
|
[1] |
Cover
|
|
| 3. |
VOE11713445
|
[1] |
Gasket
|
|
| 4. |
VOE11713446
|
[4] |
Screw
|
|
| 5. |
VOE11713447
|
[1] |
Plug
|
|
| 6. |
VOE11713448
|
[1] |
O-ring
|
|
| 7. |
VOE14521576
|
[1] |
Plug
|
|
| 8. |
VOE11713315
|
[1] |
Gasket
|
|
| 9. |
VOE11714477
|
[1] |
Gasket
|
|
| 10. |
VOE11714490
|
[1] |
Bolt
|
|
| 11. |
VOE11713374
|
[3] |
Bolt
|
|
| 12. |
VOE11713449
|
[1] |
Pulley
|
|
| 13. |
VOE11713450
|
[1] |
Belt
|
|
| 14. |
VOE11713451
|
[1] |
Fan blade
|
|
| 15. |
VOE11713452
|
[1] |
Spacer
|
|
| 16. |
VOE11713453
|
[4] |
Bolt
|
|
| 17. |
VOE11713454
|
[1] |
Cover
|
|
| 18. |
VOE11713455
|
[1] |
Thermostat
|
|
| 19. |
VOE11714388
|
[2] |
Bolt
|
|
| 20. |
VOE11714492
|
[1] |
Plug
|
|
| 21. |
VOE11714478
|
[1] |
Gasket
|
|
| 22. |
SA8210-05340
|
[1] |
Plug
|
|
