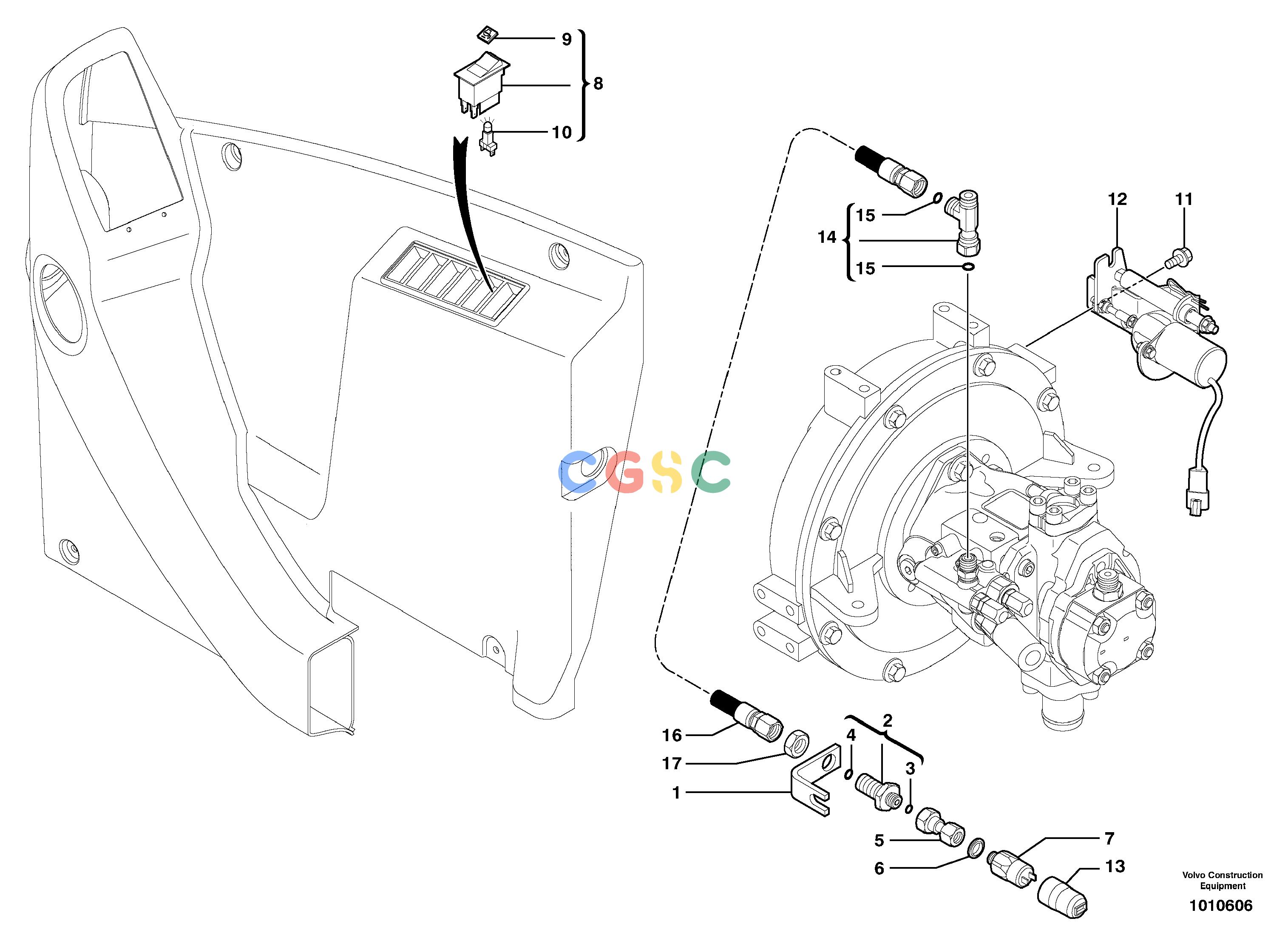

沃尔沃零件查询ECR28 Automatic Speed controlTYPE 601601.10151 601.10523-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
577 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11803532
|
[1] |
Support
|
|
| 2. |
VOE11803536
|
[1] |
Connector
|
|
| 3. |
VOE990736
|
[1] |
O-ring
|
|
| 4. |
VOE990737
|
[1] |
O-ring
|
|
| 5. |
VOE935331
|
[1] |
Test nipple
|
|
| 6. |
VOE943907
|
[1] |
Gasket
|
|
| 7. |
VOE11806729
|
[1] |
Pressure Switch
|
|
| 8. |
VOE11713145
|
[1] |
Switch
|
|
| 9. |
VOE11802798
|
[1] |
Symbol
|
|
| 10. |
VOE11715954
|
[1] |
Bulb
|
|
| 11. |
VOE946440
|
[2] |
Flange screw
|
|
| 12. |
|
[1] |
Solenoid
|
|
| 13. |
VOE11802913
|
[1] |
Cover
|
|
| 14. |
VOE13933936
|
[1] |
T-nipple
|
|
| 15. |
VOE990737
|
[2] |
O-ring
|
|
| 16. |
VOE11803537
|
[1] |
Hose assembly
|
|
| 17. |
VOE935429
|
[1] |
Lock nut
|
|
