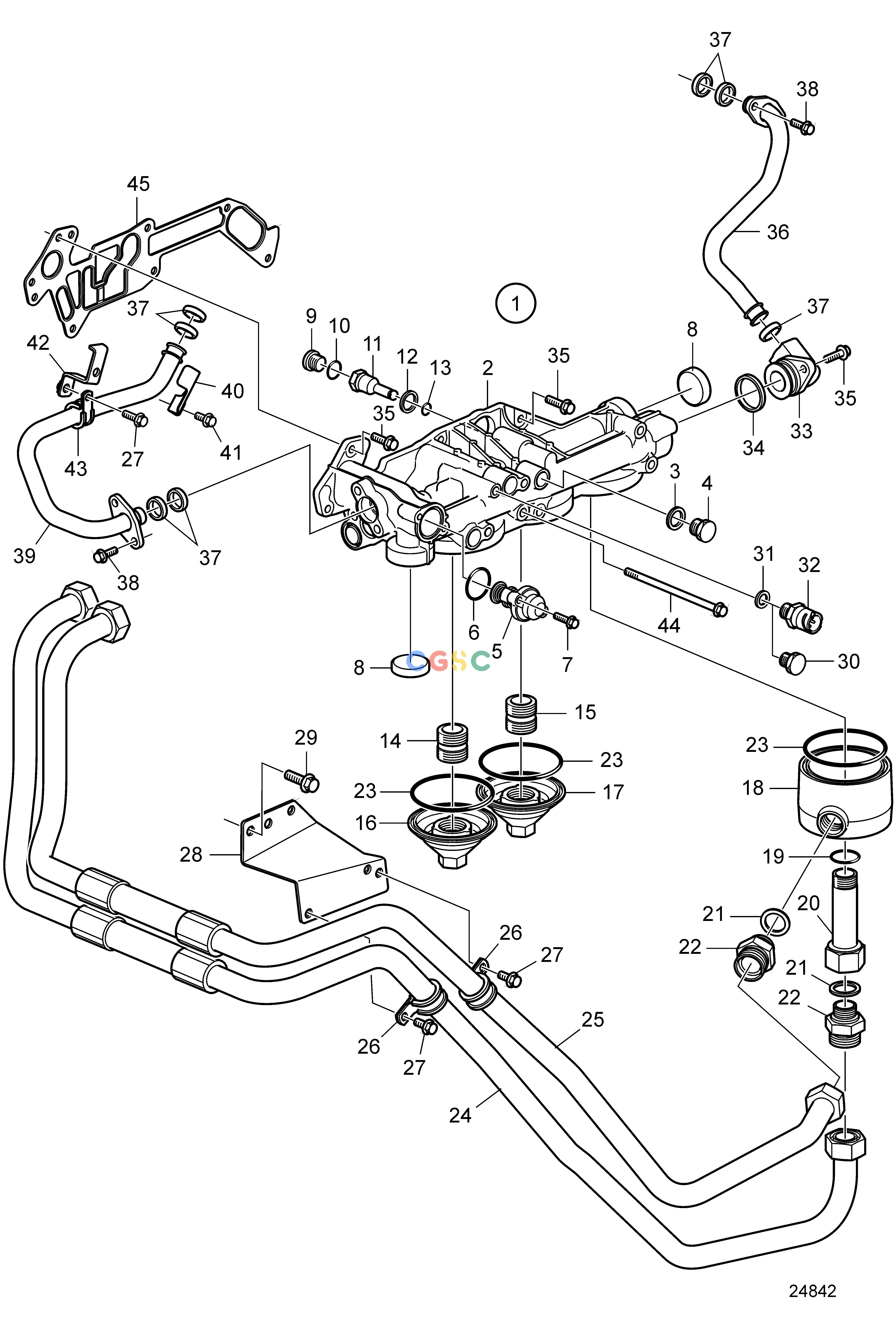

沃尔沃零件查询D13B-J MP; D13B-M MPLubricating SystemOil Filter Housing and Oil Filter, Remote MountingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
939 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3889676
|
[1] |
Oil filter housing
|
|
| 2. |
|
|
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
960632
|
[1] |
Plug
|
|
| 5. |
20903074
|
[1] |
Thermostat
|
|
| 6. |
949659
|
[1] |
O-ring
|
|
| 7. |
984727
|
[2] |
Flange screw
|
|
| 8. |
20478143
|
[2] |
Expansion plug
|
|
| 9. |
968609
|
[1] |
Plug
|
|
| 10. |
968559
|
[1] |
O-ring
|
|
| 11. |
3835956
|
[1] |
Nipple
|
|
| 12. |
947627
|
[1] |
Gasket
|
|
| 13. |
976030
|
[1] |
O-ring
|
|
| 14. |
20542058
|
[1] |
Nipple
|
|
| 15. |
20542060
|
[1] |
Nipple
|
|
| 16. |
21145973
|
[1] |
Cover
|
|
| 17. |
21145970
|
[1] |
Cover
|
|
| 18. |
15046827
|
[1] |
Cover
|
|
| 19. |
944126
|
[1] |
O-ring
|
|
| 20. |
11423710
|
[1] |
Reduction nipple
|
|
| 21. |
982508
|
[2] |
Gasket
|
|
| 22. |
11158220
|
[2] |
Adapter
|
|
| 23. |
993235
|
[3] |
X-ring
|
|
| 24. |
21175650
|
[1] |
Oil pressure pipe
|
|
| 25. |
21175652
|
[1] |
Oil pressure pipe
|
|
| 26. |
943717
|
[1] |
Clamp
|
|
| 27. |
984733
|
[2] |
Flange screw
|
|
| 28. |
21177412
|
[1] |
Bracket
|
|
| 29. |
946472
|
[4] |
Flange screw
|
|
| 30. |
960628
|
[1] |
Plug
|
Alt
|
| 31. |
947281
|
[1] |
Gasket
|
|
| 32. |
20898038
|
[1] |
Pressure sensor
|
|
| 33. |
20741000
|
[1] |
Connector
|
|
| 34. |
20555696
|
[1] |
Sealing ring
|
|
| 35. |
984735
|
[8] |
Flange screw
|
|
| 36. |
3875266
|
[1] |
Oil return pipe
|
|
| 37. |
471626
|
[7] |
Sealing ring
|
|
| 38. |
949853
|
[4] |
Flange screw
|
|
| 39. |
20729314
|
[1] |
Pipe
|
|
| 40. |
21230284
|
[1] |
Bracket
|
|
| 41. |
984741
|
[1] |
Flange screw
|
|
| 42. |
|
|
|
|
| 43. |
1545432
|
[1] |
Attaching clamp
|
|
| 44. |
984749
|
[1] |
Flange screw
|
|
| 45. |
20787167
|
[1] |
Gasket
|
|
