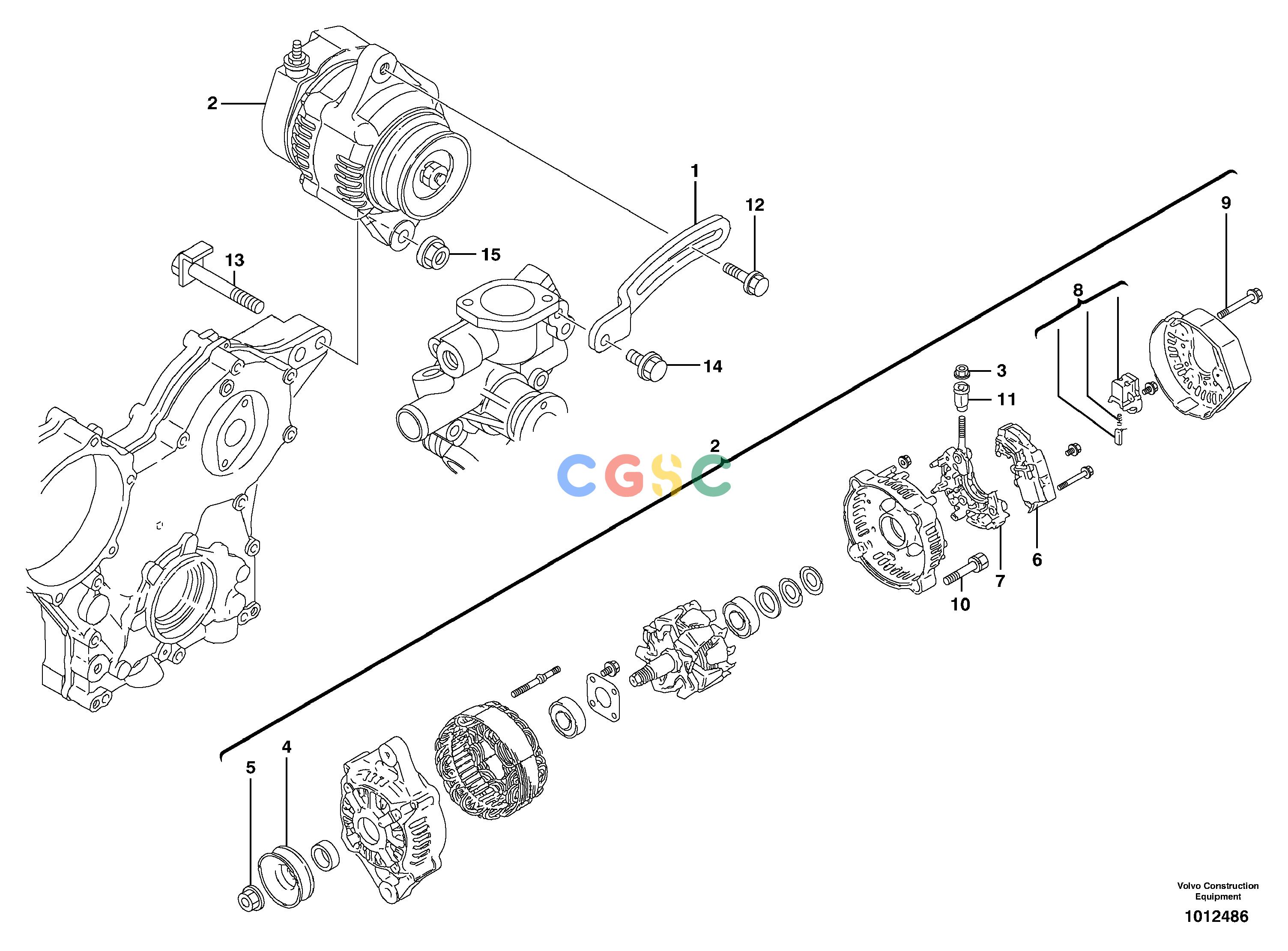

沃尔沃零件查询ECR28 AlternatorTYPE 601601.10151-15614793NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
857 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713507
|
[1] |
Alternator anchorage
|
|
| 2. |
VOE11713508
|
[1] |
Alternator
|
|
| 3. |
VOE14521614
|
[1] |
Nut
|
|
| 4. |
VOE14521624
|
[1] |
Pulley
|
|
| 5. |
VOE14521625
|
[1] |
Nut
|
|
| 6. |
VOE14521635
|
[1] |
Regulator
|
|
| 7. |
VOE11713509
|
[1] |
Brush retainer plate
|
|
| 8. |
VOE11713510
|
[1] |
Brush retainer
|
|
| 9. |
VOE14521630
|
[3] |
Bolt
|
|
| 10. |
VOE14521632
|
[2] |
Bolt
|
|
| 11. |
VOE14521633
|
[1] |
Bushing
|
|
| 12. |
VOE14521638
|
[1] |
Flange screw
|
|
| 13. |
VOE11713511
|
[1] |
Bolt
|
|
| 14. |
VOE11714388
|
[1] |
Bolt
|
|
| 15. |
VOE14521513
|
[1] |
Nut
|
|
