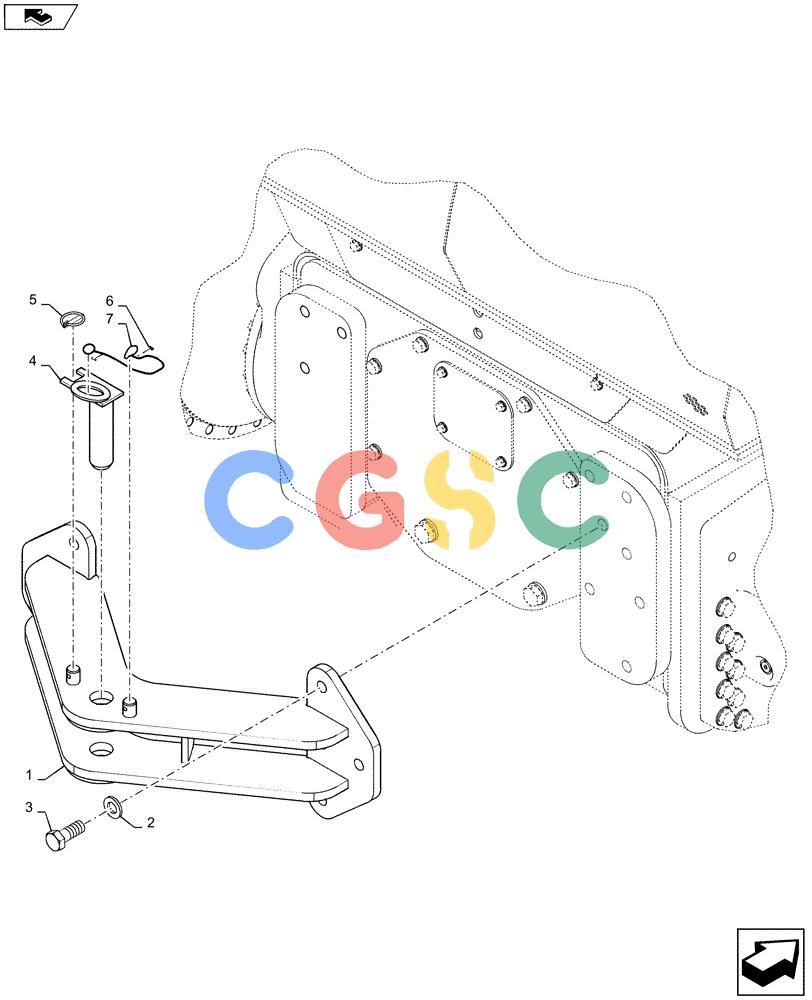

纽荷兰零件查询(D180C XLT) - CRAWLER DOZER - TIER 4A (12/13-) (37.100.AA[01]) - DRAWBAR New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
978 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47496414 | [1] | DRAWBAR | BUR |
| 2. | 896-11024 | [8] | WASHER,26mm ID x 44mm OD x 5mm Thk | IH Superseded by part number: 87016608 |
| 3. | 87564731 | [8] | BOLT,Hex, M24 x 80mm, Cl 10.9 | BUR |
| 4. | 87339515 | [1] | PIN | BURBrawbar |
| 5. | A30338 | [1] | PIN | CASKLIK Superseded by part number: 270184 |
| 6. | 47496260 | [2] | SLEEVE | BURAluminum |
| 7. | 47496259 | [1] | CABLE,405mm L | BURLanyard |
