卡特零件查询（725C） 447-2665: LINES GP-PARKING BRAKE
广数供应链运营团队, 14 02月, 2025，浏览：
480 次

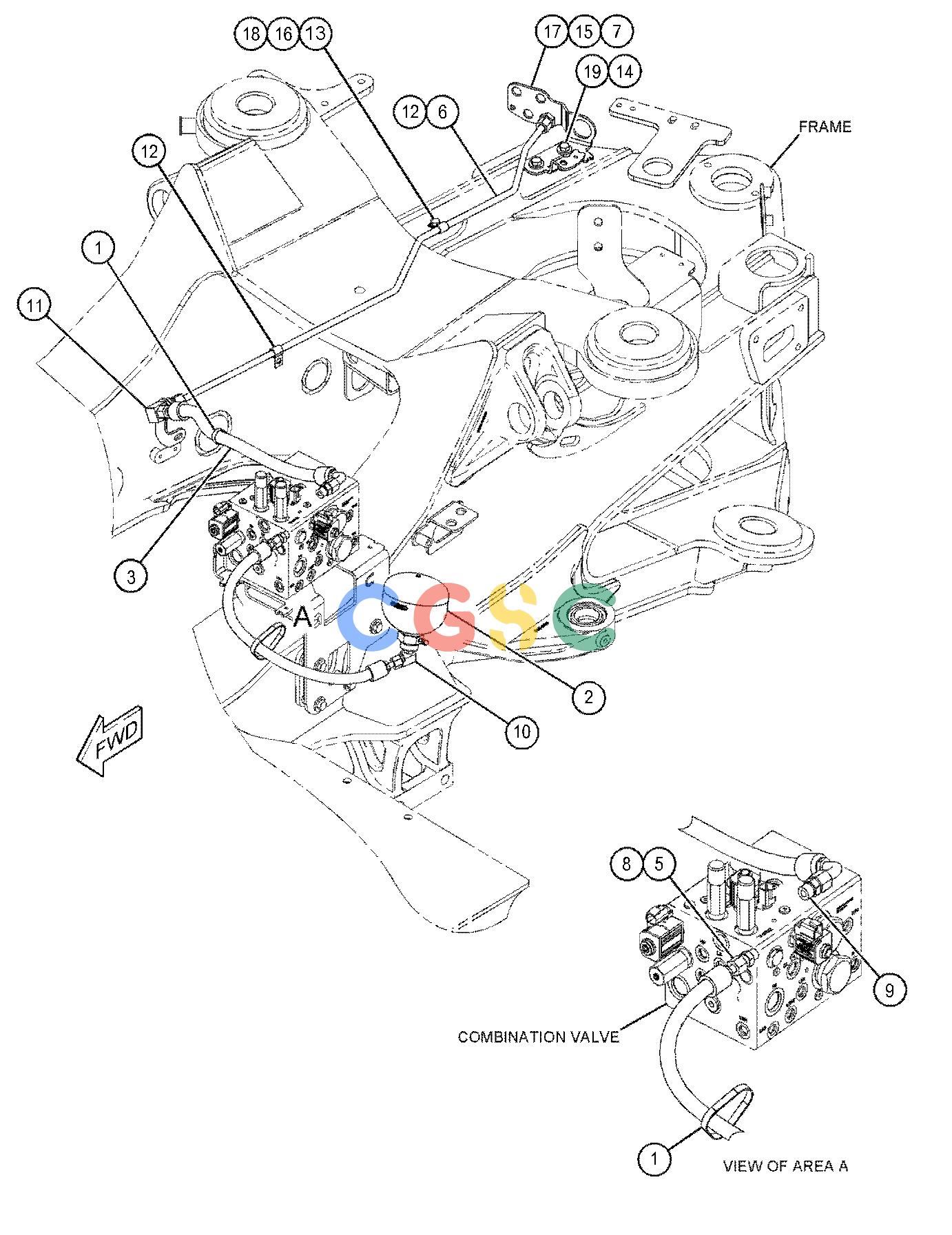

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0456 | [2] | STRAP | |
| 2. | 163-5632Y | [1] | ACCUMULATOR GP-BRAKE(CHARGED) | |
| 3. | 179-9404I | [1] | HOSE AS | |
| 5. | 392-6843I | [1] | HOSE AS | |
| 6. | 444-6788 | [1] | TUBE AS | |
| 7. | 494-1444 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 8. | 148-8336 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 9. | 148-8340 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 11. | 494-1927 | [1] | CONNECTOR GP-HYDRAULIC | |
| | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| | 148-8375 | [1] | ELBOW AS | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8981 | [1] | ELBOW | |
| | 391-4937 | [1] | BRACKET | |
| | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 12. | 148-8457 | [1] | UNION AS(STRAIGHT) | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8995 | [1] | UNION(STRAIGHT) | |
| 13. | 3U-2752 | [2] | CLIP(LOOP) | |
| 14. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 15. | 6V-9169 | [1] | NUT(13/16-16-THD) | |
| 16. | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| 17. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 18. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 19. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
