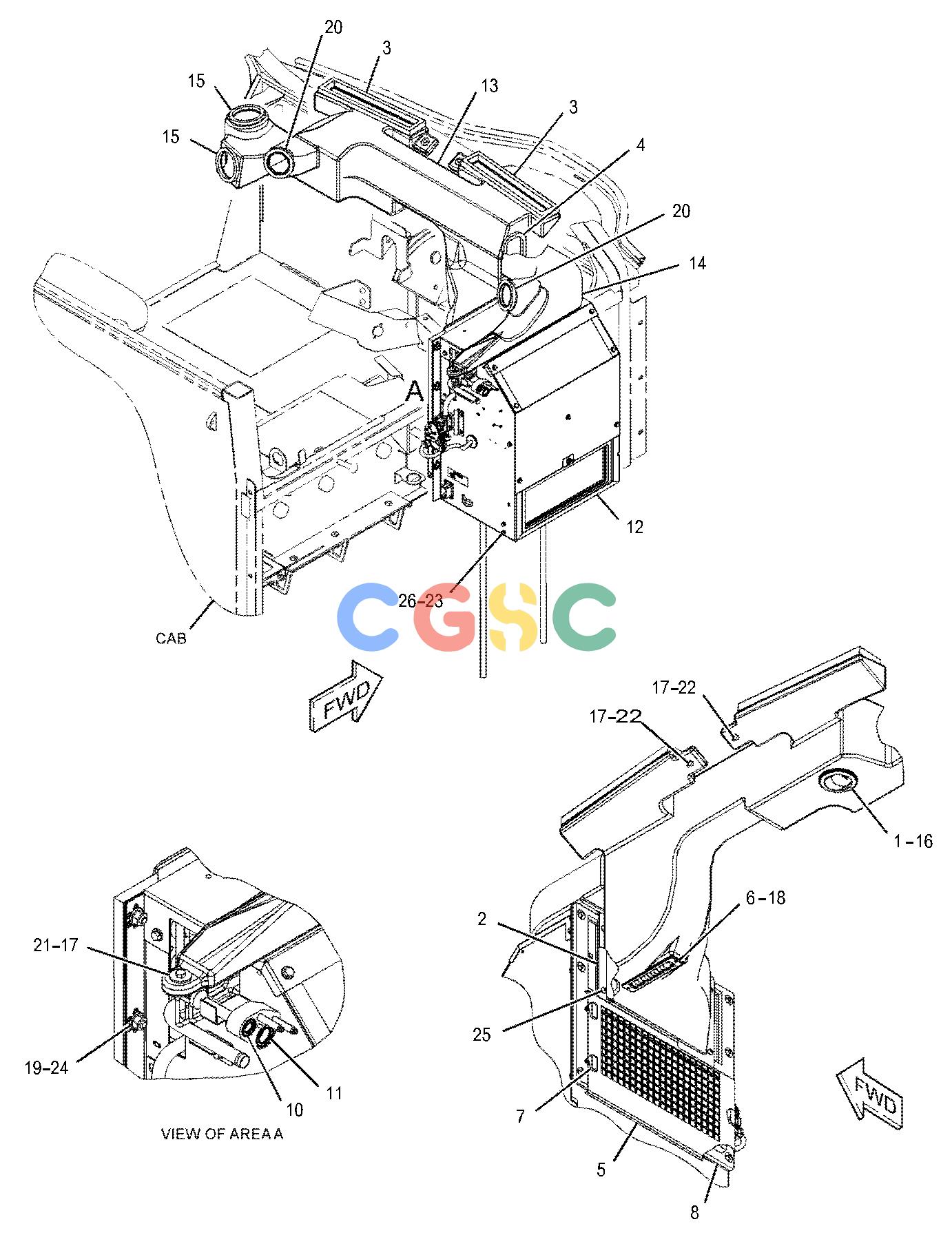

卡特零件查询（725C） 398-6131: AIR CONDITIONER & MOUNTING GP
广数供应链运营团队, 14 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 164-8473 | [1] | LOUVER AS | |
| 2. | 170-5337 | [1] | GASKET | |
| 3. | 170-5338 | [2] | GASKET | |
| 4. | 497-9406 | [1] | GASKET | |
| 5. | 170-5342 | [1] | COVER | |
| 6. | 171-4047 | [1] | LOUVER AS-VENT | |
| 7. | 185-9464 | [3] | LATCH AS(COMPARTMENT) | |
| 8. | 268-6704 | [1] | FILTER ELEMENT-CAB AIR(AIR CONDITIONER) | |
| 10. | 327-0282 | [1] | SEAL-INTEGRAL(1/2-IN) | |
| 11. | 327-0283 | [1] | SEAL-INTEGRAL(3/4-IN) | |
| 12. | 329-8940Y | [1] | AIR CONDITIONER GP | |
| 13. | 340-7390 | [1] | DUCT | |
| 14. | 340-7391 | [1] | DUCT | |
| 15. | 344-2596 | [2] | GASKET | |
| 16. | 104-2091 | [4] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 17. | 104-5604 | [4] | WASHER(7.2X25X2-MM THK) | |
| 18. | 118-5619 | [2] | SCREW-FLAT HEAD(6-20X1-IN) | |
| 19. | 175-7141M | [6] | NUT-HEX FLANGE(M10X1.5-THD) | |
| 20. | 344-2595 | [2] | GASKET | |
| 21. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 22. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 23. | 7X-2619M | [2] | BOLT(M6X1X10-MM) | |
| 24. | 8T-7004M | [6] | STUD-TAPERLOCK(M10X1.5X35-MM) | |
| 25. | 9X-2044M | [4] | SCREW-TRUSS HEAD(M6X1X16-MM) | |
| 26. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
