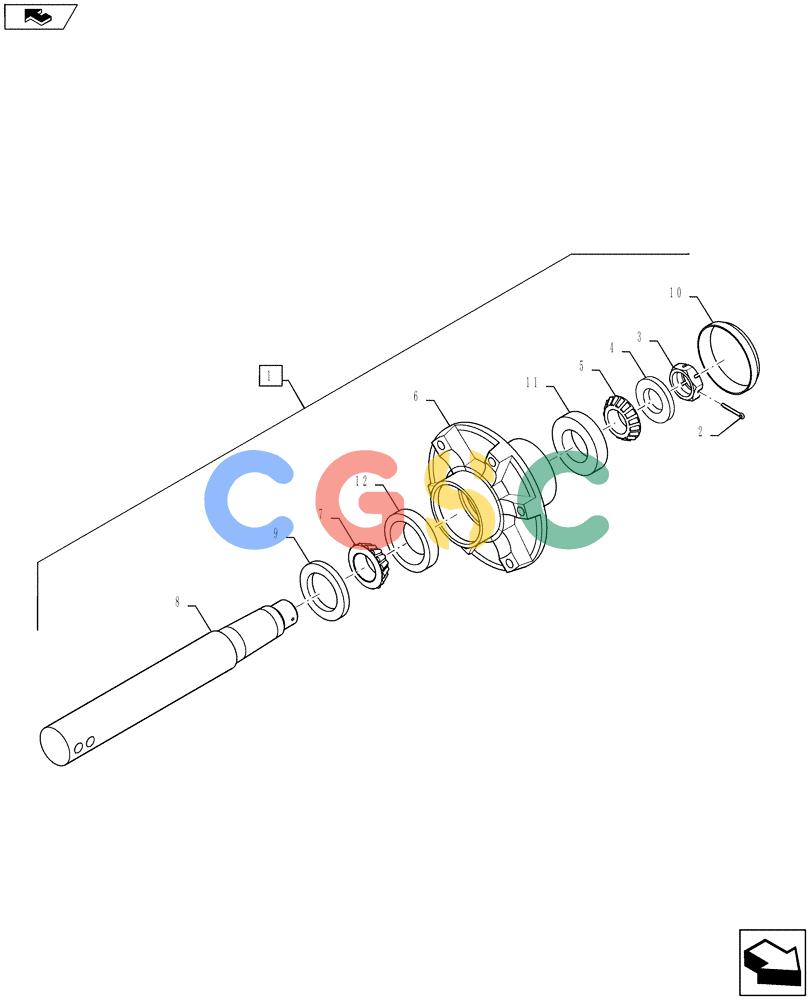

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (27.500.AO[01]) - VAR - 807490, 809980 - WHEEL HUB & SPINDLE, STANDARD DUTY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
781 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86974344
|
[1] |
HUB
|
PA
Spindle, Standard Duty, Incl 2 - 12 Superseded by part number: 87663732
|
| 2. |
87398
|
[1] |
COTTER PIN,3/16" OD x 1-1/4" OAL
|
NH
|
| 3. |
603373
|
[1] |
JAM NUT,Slotted, 1" - 14, Gr 2
|
NH
Slotted, Jam, G2, 1"-14 Superseded by part number: 143183
|
| 4. |
87020635
|
[1] |
WASHER
|
PA
|
| 5. |
67527
|
[1] |
ROLLER BEARING,45.26mm ID x 19.84mm W
|
WIN
Superseded by part number: 86512027
|
| 6. |
86979537
|
[1] |
HUB
|
PA
|
| 7. |
199954
|
[1] |
BEARING CONE,50mm ID x 21.5mm W
|
NH
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Shaft, Incl in 1
|
| 9. |
245856
|
[1] |
OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk
|
NH
|
| 10. |
86900188
|
[1] |
CAP
|
PA
Hub
|
| 11. |
67526
|
[1] |
BEARING CUP,77.7mm OD x 15.08mm Thk
|
WIN
77 mm x 15 mm Superseded by part number: 86512027
|
| 12. |
199955
|
[1] |
BEARING CUP,82mm OD x 17mm W
|
ZED
|
