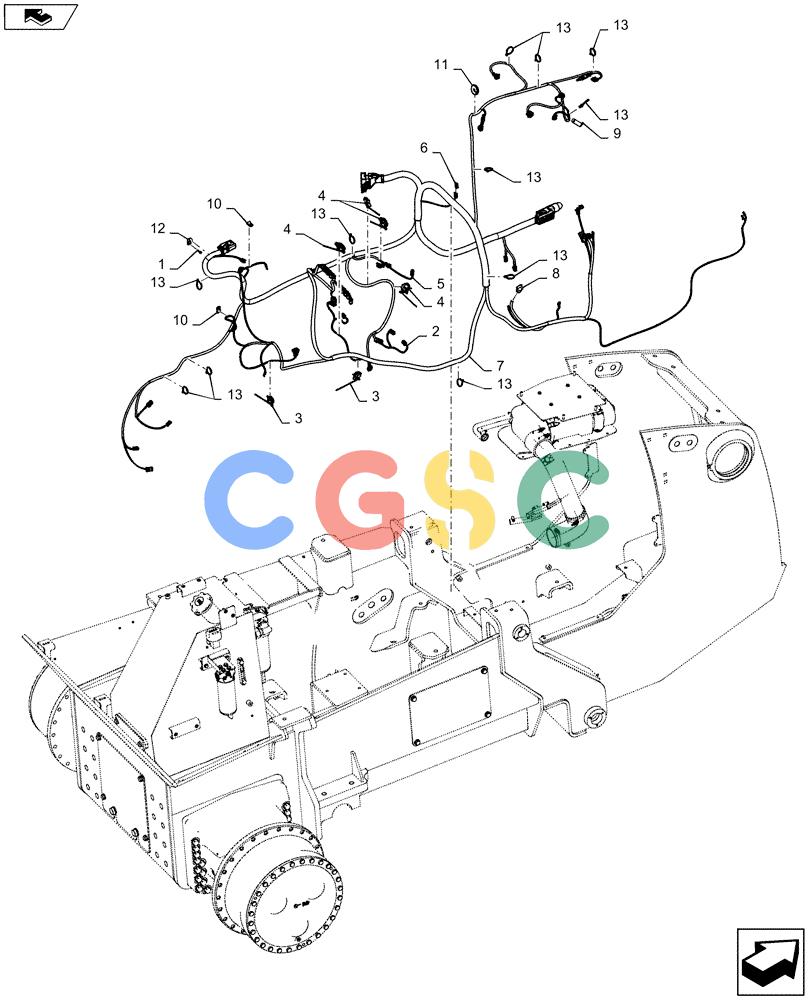

纽荷兰零件查询(D180C XLT) - CRAWLER DOZER - TIER 4A (12/13-) (55.101.AC[01]) - MAIN HARNESS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
378 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 845-6020 | [1] | BOLT,Hvy Hex, M6 x 20mm, Cl 8.8 | CAS Superseded by part number: 87015862 |
| 2. | 47399574 | [1] | JUMPER | BUR |
| 3. | 47431062 | [2] | CLIP | BUR |
| 4. | 47431063 | [4] | CLIP | BUR |
| 5. | 47447090 | [1] | JUMPER | BUR |
| 6. | 84208167 | [1] | RESISTOR | BUR |
| 7. | 47508962 | [1] | WIRE HARNESS | BUR |
| 8. | 47524103 | [1] | CAP | BUR |
| 9. | 47589380 | [1] | PLATE | BUR |
| 10. | 84370849 | [2] | CLAMP | FAR |
| 11. | 84467169 | [1] | GROMMET | BUR |
| 12. | 87612756 | [1] | CLAMP,25.4mm, Coat, 7.1mm Bolt Hole, P Type | PLO |
| 13. | L11541 | [26] | CABLE TIE,203.2mm L, Nylon | CAS Superseded by part number: 87000312 |
