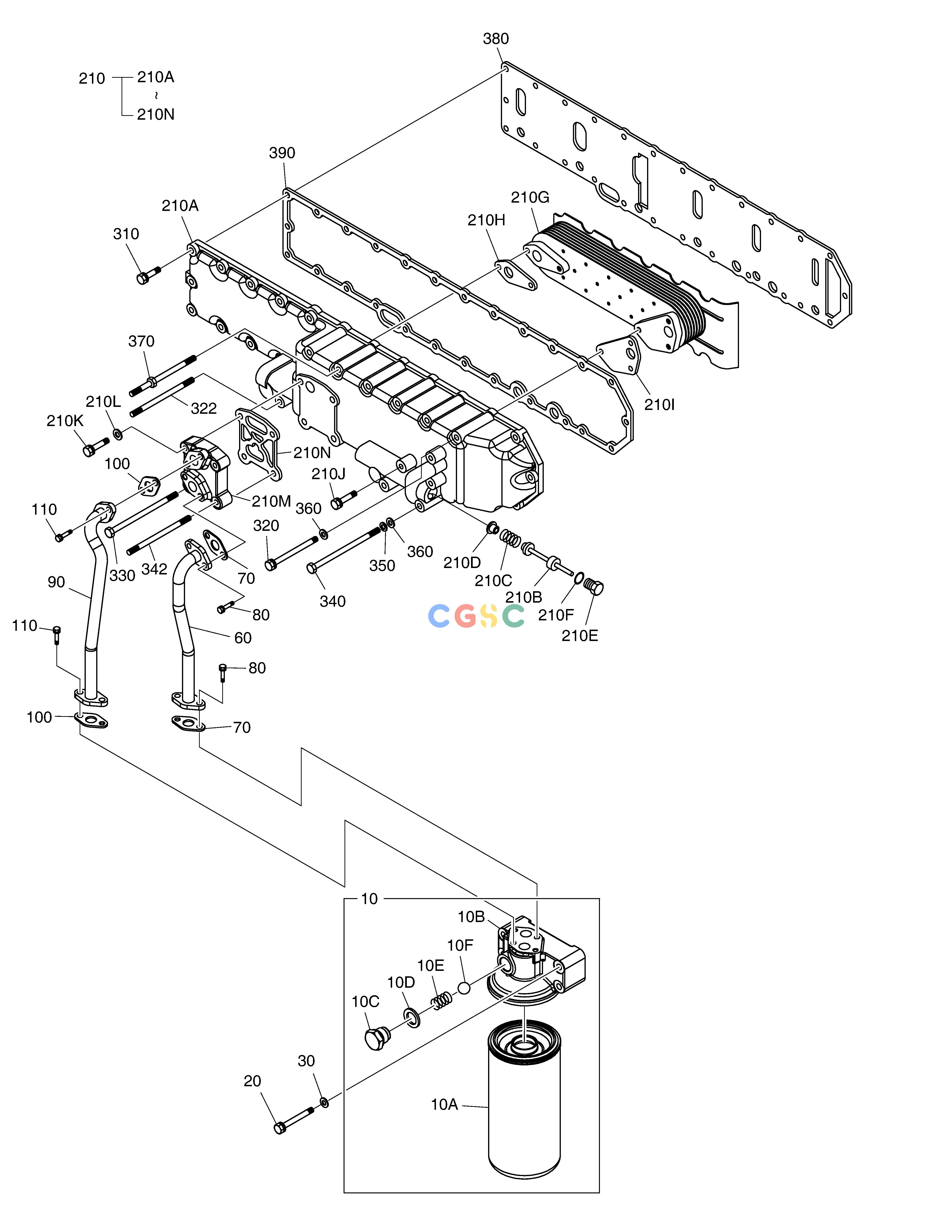

斗山零件查询OIL FILTER & OIL COOLER DX350LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
283 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
400404-00083
|
[1] |
|
|
| 10. |
65.05501-7086B
|
[1] |
FILTER;OIL
|
400404-00083
|
| 100. |
65.05903A0001
|
[2] |
GASKET
|
|
| 10A. |
400508-00092
|
[1] |
|
|
| 10A. |
65.05510-5026B
|
[1] |
CARTRIDGE;OIL FILTER
|
400508-00092
|
| 10B. |
65.05503-5054
|
[1] |
HEAD;OIL FILTER
|
|
| 10C. |
65.90310-0115
|
[1] |
. PLUG
|
|
| 10D. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 10E. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 10F. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
| 110. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 20. |
06.01913-3224
|
[4] |
BOLT;HEX. M10X1.5X65
|
|
| 210. |
65.05601-7076A
|
[1] |
OIL COOLER ASS'Y
|
|
| 210A. |
65.05604-0026B
|
[1] |
HOUSING;OIL COOLER
|
|
| 210B. |
65.05410-0008A
|
[1] |
PLUNGER
|
|
| 210C. |
65.97601-0120
|
[1] |
SPRING
|
|
| 210D. |
65.90710-0095A
|
[1] |
|
|
| 210E. |
65.54109-0005A
|
[2] |
. SCREW;PLUG M22X1.5
|
|
| 210F. |
06.56190-0718
|
[1] |
RING;SEAL
|
|
| 210G. |
65.05606-5030A
|
[1] |
ELEMENT;OIL COOLER
|
|
| 210H. |
65.05902-0017
|
[1] |
GASKET;OIL COOLER
|
|
| 210I. |
65.05902-0018
|
[1] |
GASKET;OIL COOLER
|
|
| 210J. |
06.01923-3120
|
[3] |
. BOLT ASS`Y M8X45
|
|
| 210K. |
06.01913-3121
|
[2] |
BOLT ASS`Y M8X50
|
|
| 210L. |
06.15010-2311
|
[2] |
WASHER
|
|
| 210M. |
65.05607-5001
|
[1] |
FLANGE;OIL COOLER
|
|
| 210N. |
65.05901-0026
|
[1] |
GASKET;OIL FILTER
|
|
| 30. |
06.15010-2312
|
[4] |
WASHER;PLAIN
|
|
| 310. |
06.01923-3118
|
[14] |
BOLT ASS`Y M8X35
|
|
| 320. |
06.01913-3131
|
[6] |
BOLT ASS'Y M8X100
|
|
| 322. |
65.90201-0124
|
[1] |
BOLT;STUD M8X100
|
|
| 330. |
65.90001-0139
|
[1] |
BOLT;HEX. M8X150
|
|
| 340. |
06.01013-9142
|
[2] |
BOLT;HEX. M8X135
|
|
| 342. |
65.90201-0125
|
[1] |
BOLT ASS`Y M8X145
|
|
| 350. |
06.16731-2107
|
[3] |
WASHER
|
|
| 360. |
06.15010-2311
|
[11] |
WASHER
|
|
| 370. |
65.90441-0016
|
[1] |
BOLT;SPACER M8X97
|
|
| 370. |
120122-00056
|
[1] |
|
|
| 380. |
65.05610-0006
|
[1] |
PLATE;BAFFLE
|
|
| 390. |
65.05902-0019
|
[2] |
GASKET;OIL COOLER
|
|
| 60. |
65.05701-5728
|
[1] |
PIPE;OIL
|
|
| 70. |
65.05903A0001
|
[2] |
GASKET
|
|
| 80. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 90. |
65.05701-5729
|
[1] |
PIPE;OIL
|
|
