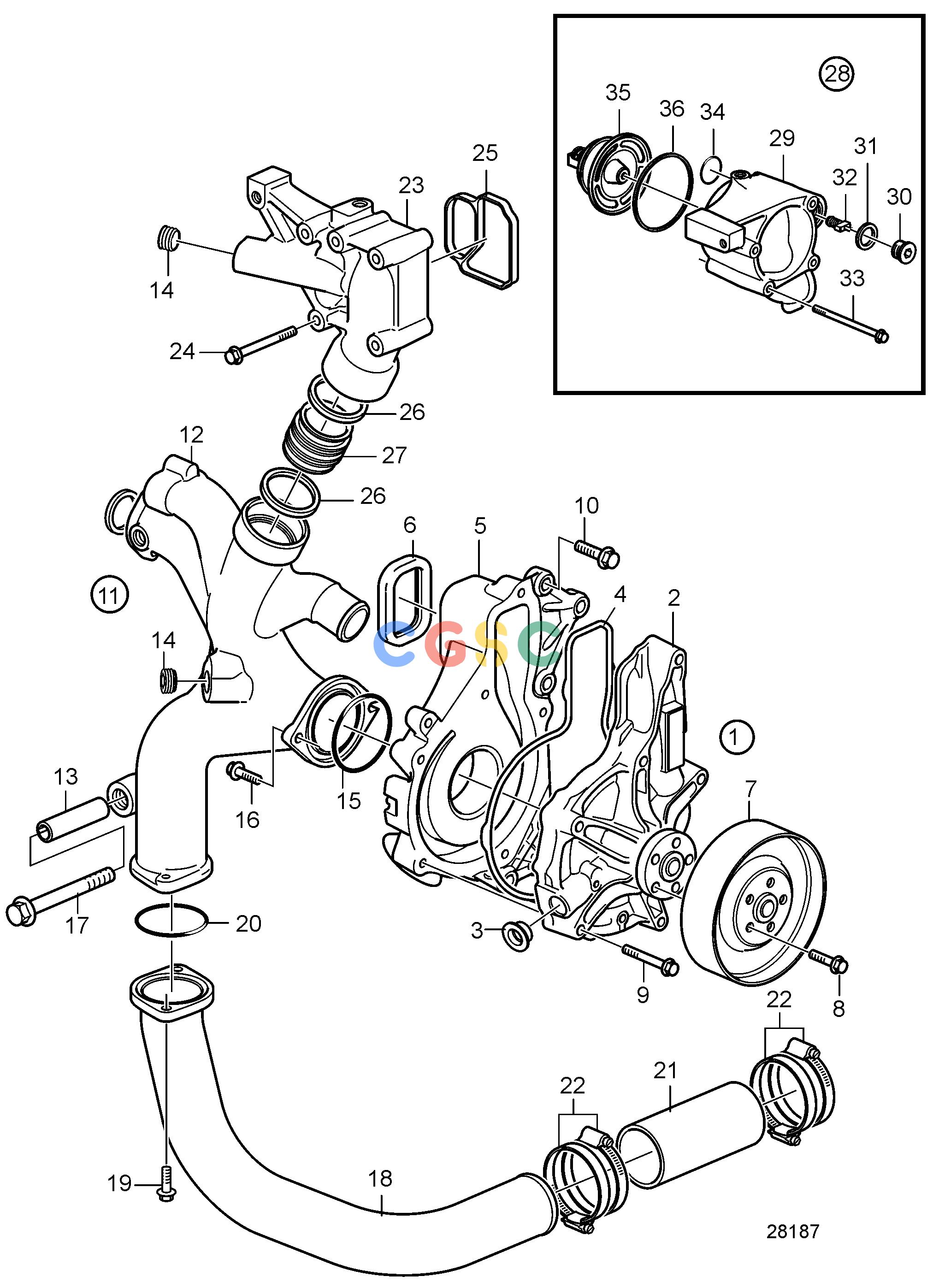

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPCooling SystemCooling Water Pump and Thermostat Housing, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
669 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 1. |
3801741
|
[1] |
Coolant pump, exch
|
|
| 2. |
22195450
|
[1] |
Pump unit
|
|
| 3. |
20464402
|
[1] |
Plastic plug
|
|
| 4. |
22658275
|
[1] |
Rubber moulding
|
Replaced by 21103569
|
| 4. |
21103569
|
[1] |
Rubber moulding
|
|
| 5. |
22195464
|
[1] |
Coolant pump
|
|
| 6. |
20430678
|
[1] |
Rubber moulding
|
|
| 7. |
20711223
|
[1] |
Pulley
|
|
| 8. |
984732
|
[5] |
Flange screw
|
|
| 9. |
984740
|
[6] |
Flange screw
|
|
| 10. |
984755
|
[6] |
Flange screw
|
|
| 11. |
21645842
|
[1] |
Coolant pipe
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
968146
|
[2] |
Plug
|
|
| 15. |
975697
|
[1] |
O-ring
|
|
| 16. |
984736
|
[2] |
Flange screw
|
|
| 17. |
984761
|
[1] |
Flange screw
|
|
| 18. |
3889770
|
[1] |
Water pipe
|
|
| 19. |
984735
|
[2] |
Flange screw
|
|
| 20. |
975675
|
[1] |
O-ring
|
|
| 21. |
949540
|
[1] |
Hose
|
L=150mm
|
| 22. |
961673
|
[4] |
Hose clamp
|
|
| 23. |
21403177
|
[1] |
Pipe connection
|
|
| 24. |
984742
|
[5] |
Flange screw
|
|
| 25. |
20479636
|
[1] |
Sealing strip
|
|
| 26. |
1547254
|
[2] |
Sealing ring
|
|
| 27. |
21021925
|
[1] |
Connection pipe
|
|
| 28. |
|
|
|
|
| 29. |
3889622
|
[1] |
Thermostat housing
|
|
| 30. |
981280
|
[1] |
Plug
|
|
| 31. |
18813
|
[1] |
Gasket
|
|
| 32. |
21246119
|
[1] |
By-pass valve
|
|
| 33. |
984746
|
[4] |
Flange screw
|
|
| 34. |
949659
|
[1] |
O-ring
|
|
| 35. |
21412639
|
[1] |
Thermostat
|
|
| 36. |
|
|
|
|
