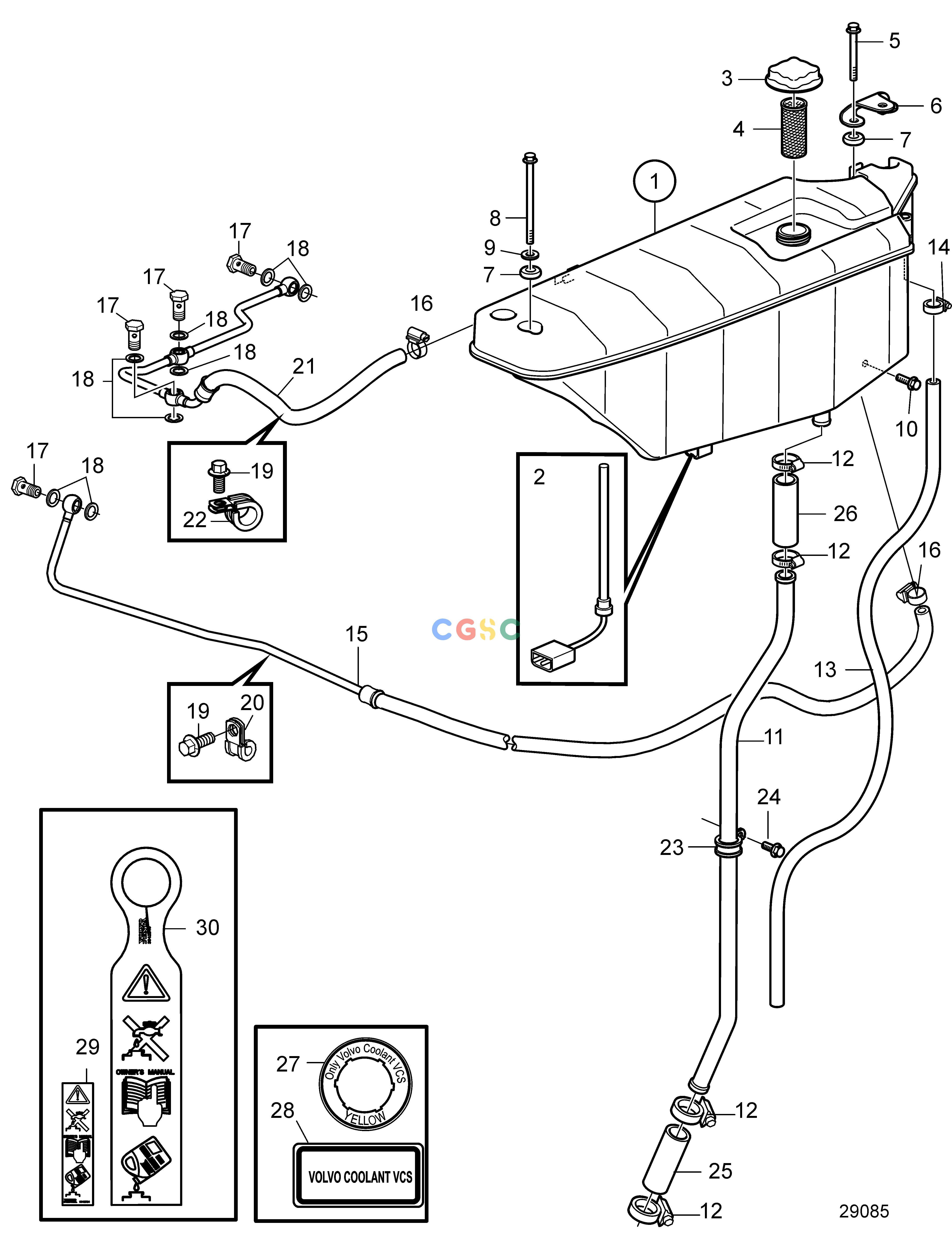

沃尔沃零件查询D13C1-A MP; D13C2-A MP; D13C3-A MP; D13C4-A MP; D13C6-A MPCooling SystemExpansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21920930
|
[1] |
Expansion tank
|
|
| 2. |
21872119
|
[1] |
Level sensor
|
|
| 3. |
1674083
|
[1] |
Pressure cap
|
|
| 4. |
21366063
|
[1] |
Pipe
|
|
| 5. |
984741
|
[2] |
Flange screw
|
|
| 6. |
21167108
|
[1] |
Bracket, cover
|
|
| 7. |
3285120
|
[4] |
Spacer sleeve
|
|
| 8. |
984746
|
[2] |
Flange screw
|
|
| 9. |
976944
|
[2] |
Washer
|
|
| 10. |
984734
|
[1] |
Flange screw
|
|
| 11. |
21471345
|
[1] |
Coolant pipe
|
|
| 12. |
961666
|
[2] |
Hose clamp
|
|
| 13. |
979652
|
[1] |
Hose
|
L=1100mm
|
| 14. |
961663
|
[1] |
Hose clamp
|
|
| 15. |
21949609
|
[1] |
Air vent pipe
|
|
| 16. |
961663
|
[2] |
Hose clamp
|
|
| 17. |
969299
|
[4] |
Hollow screw
|
|
| 18. |
20852763
|
[8] |
Sealing ring
|
|
| 19. |
984746
|
[2] |
Flange screw
|
|
| 20. |
942400
|
[1] |
Clamp
|
|
| 21. |
21997091
|
[2] |
Air vent pipe
|
|
| 22. |
949747
|
[1] |
Clamp
|
|
| 23. |
1545432
|
[1] |
Attaching clamp
|
|
| 24. |
984733
|
[1] |
Flange screw
|
|
| 25. |
943369
|
[1] |
Rubber hose
|
|
| 26. |
943369
|
[1] |
Rubber hose
|
L=75mm
|
| 27. |
21506995
|
[1] |
Label
|
|
| 28. |
20777630
|
[1] |
Label
|
|
| 29. |
3842724
|
[1] |
Warning decal
|
|
| 30. |
3842243
|
[1] |
Warning decal
|
|
