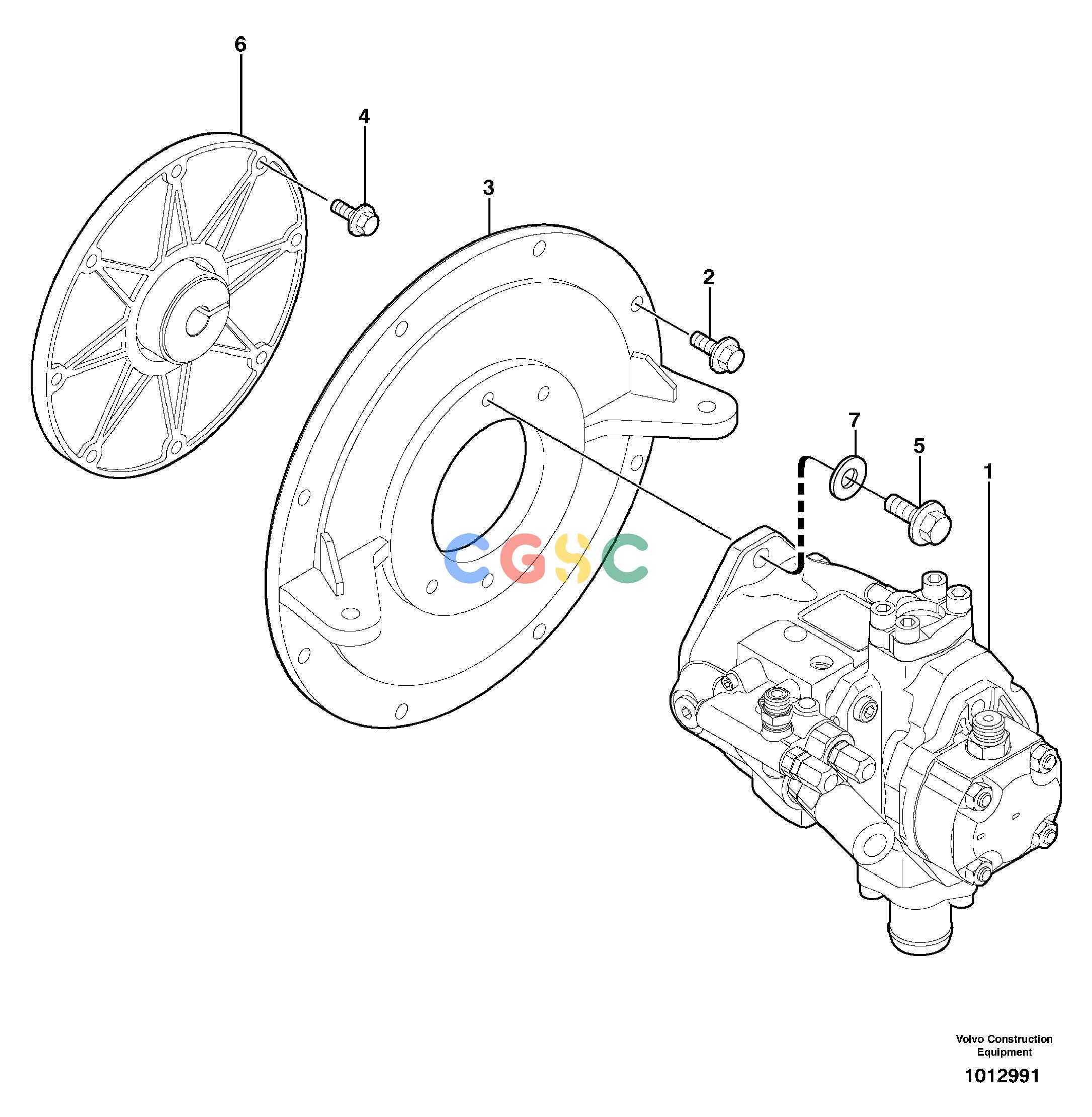

沃尔沃零件查询ECR28 Engine coupling / hydraulic pumpTYPE 601601.10151-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Hydraulic Pump
|
|
| 2. |
VOE946329
|
[8] |
Flange screw
|
ALT , M10X25
|
| 2. |
VOE983251
|
[8] |
Hexagon screw
|
ALT , M10X20
|
| |
VOE976945
|
[8] |
Washer
|
|
| 3. |
VOE11801301
|
[1] |
Bearing shield
|
S/N - 601.10787
|
| 3. |
VOE11806528
|
[1] |
Bearing shield
|
S/N 601.10788 - 11371
|
| |
VOE15619734
|
[1] |
Bearing shield
|
S/N 11372 -
|
| 4. |
VOE983243
|
[8] |
Hexagon screw
|
|
| |
VOE13955894
|
[8] |
Washer
|
|
| 5. |
VOE997446
|
[2] |
Hexagon screw
|
S/N - 11638
|
| 5. |
VOE983720
|
[2] |
Hexagon screw
|
S/N 11639 -
|
| 6. |
VOE11802746
|
[1] |
Coupling piece
|
|
| 7. |
VOE11804249
|
[2] |
Washer
|
S/N - 11638
|
| 7. |
VOE13930908
|
[2] |
Washer
|
S/N 11639 -
|
