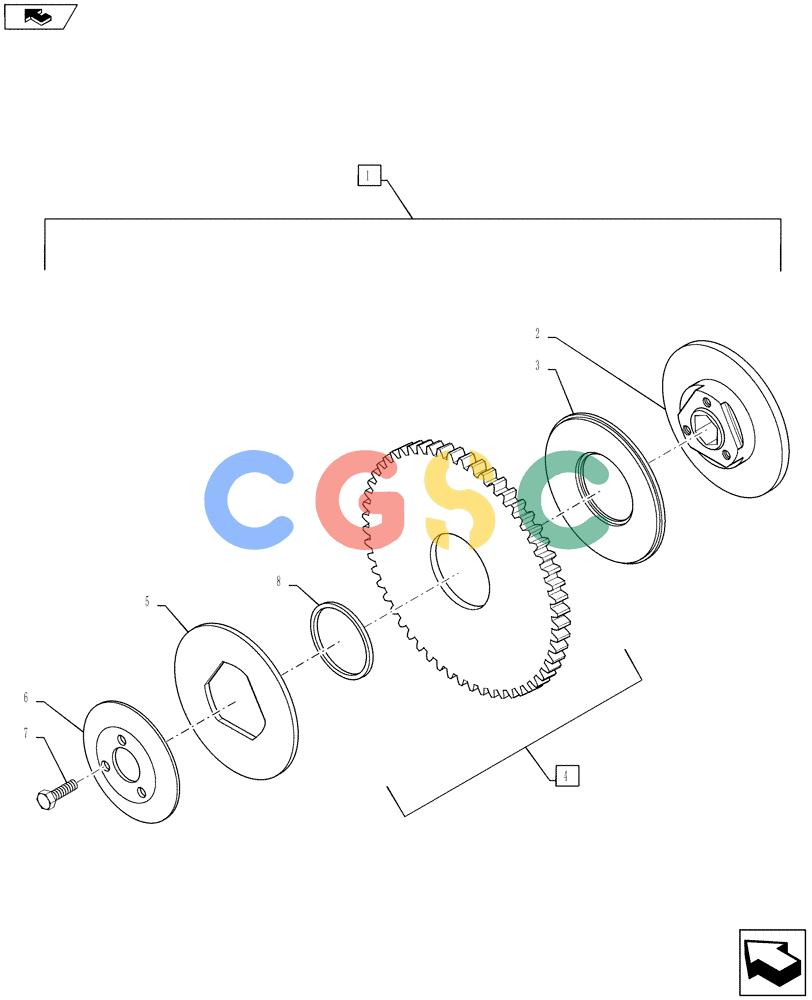

凯斯零件查询(RB565) - CASE IH ROUND BALER (3/14-12/15) (31.225.AA) - SLIP CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84472419
|
[1] |
SLIP CLUTCH
|
NH
Incl 2 - 7
|
| 2. |
84543059
|
[1] |
CLUTCH DISC
|
NH
|
| 3. |
127434
|
[1] |
DISC,77.7mm ID x 146mm OD x 3.56mm Thk
|
NH
Friction
|
| 4. |
86536128
|
[1] |
DRIVEN SPROCKET
|
NH
48T, Incl 8 Superseded by part number: 86637250
|
| 5. |
86627129
|
[1] |
CLUTCH PLATE
|
NH
|
| 6. |
121092
|
[1] |
BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk
|
NH
|
| 7. |
88011
|
[3] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
NH
|
| 8. |
49686
|
[1] |
BUSHING,76mm ID x 82.68mm OD x 7.62mm L
|
NH
|
