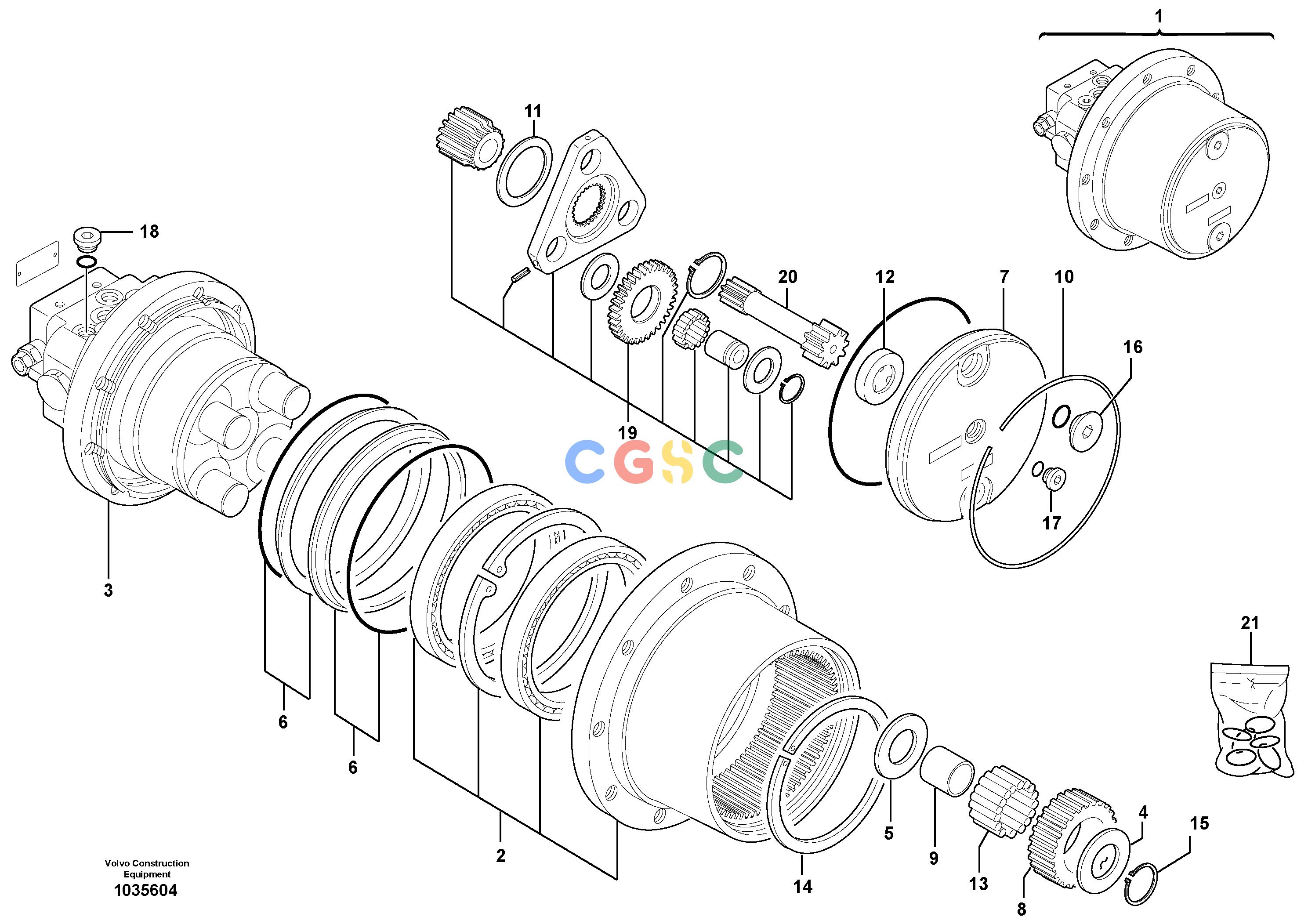

沃尔沃零件查询ECR28 Hydraulic travelling motorTYPE 601 NoneNone11839900Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15633627
|
[1] |
Hydraulic motor
|
|
| 2. |
VOE15092726
|
[1] |
Repair kit
|
|
| 3. |
|
[1] |
Hydraulic motor
|
|
| 4. |
VOE15092725
|
[4] |
Thrust washer
|
|
| 5. |
VOE15092724
|
[4] |
Thrust washer
|
|
| 6. |
VOE15092705
|
[2] |
Sealing kit
|
|
| 7. |
VOE15092640
|
[1] |
Cover
|
|
| 8. |
VOE15092644
|
[4] |
Gear
|
|
| 9. |
VOE15092652
|
[4] |
Bearing sleeve
|
|
| 10. |
VOE15092661
|
[1] |
Snap ring
|
|
| 11. |
|
[1] |
Spacer
|
|
| 12. |
VOE15092669
|
[1] |
Slide ring
|
|
| 13. |
VOE15092707
|
[92] |
Needle
|
|
| 14. |
VOE15092710
|
[1] |
Snap ring
|
|
| 15. |
VOE15092719
|
[4] |
Snap ring
|
|
| 16. |
VOE15045609
|
[2] |
Plug
|
|
| 17. |
VOE15045381
|
[1] |
Plug
|
|
| 18. |
VOE15092722
|
[2] |
Plug
|
|
| 19. |
VOE15092729
|
[1] |
Drive gear set
|
|
| 20. |
VOE15092648
|
[1] |
Gear
|
|
| 21. |
VOE15092734
|
[1] |
Sealing kit
|
|
