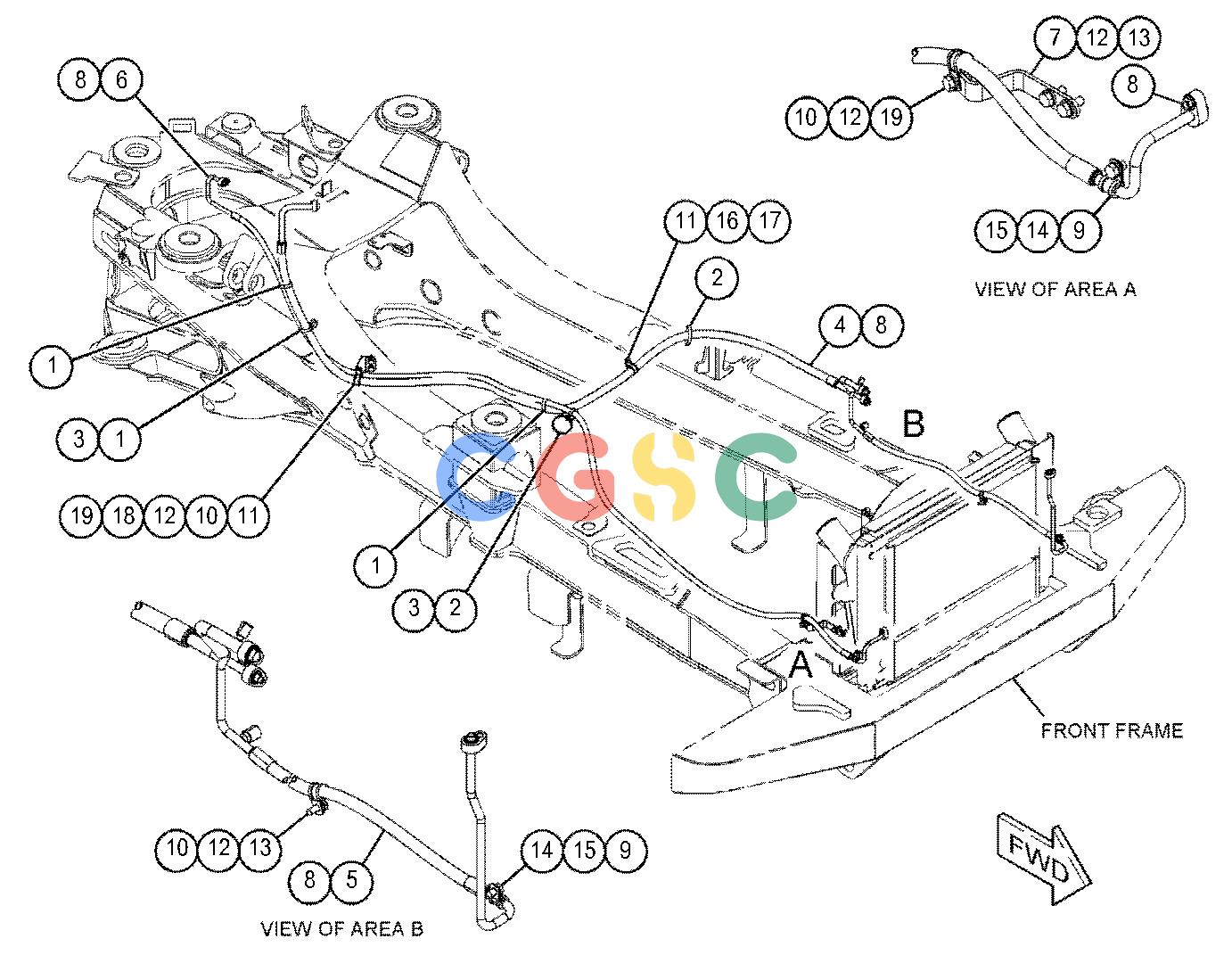

卡特零件查询（725C） 364-4060: LINES GP-AIR CONDITIONER
广数供应链运营团队, 14 02月, 2025，浏览：
525 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-0455 | [5] | STRAP | |
| 2. | 6U-0456 | [2] | STRAP | |
| 3. | 290-5562 | [2] | MOUNT(DUAL SWIVEL) | |
| 4. | 459-5379 | [1] | HOSE AS | |
| 5. | 449-4340 | [1] | HOSE AS | |
| 6. | 449-8795 | [1] | HOSE AS | |
| 7. | 447-0577 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 8. | 178-3336M | [6] | NUT-HEX FLANGE(M8X1.25-THD) | |
| 9. | 3U-2752 | [2] | CLIP(LOOP) | |
| 10. | 3U-2754 | [3] | CLIP(LOOP) | |
| 11. | 3U-2755 | [2] | CLIP(LOOP) | |
| 12. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 13. | 8T-4136M | [3] | BOLT(M10X1.5X25-MM) | |
| 14. | 8T-4191M | [2] | BOLT(M10X1.5X16-MM) | |
| 15. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 16. | 8T-4138M | [1] | BOLT(M6X1X20-MM) | |
| 17. | 5P-4115 | [1] | WASHER-HARD(7.2X19X2-MM THK) | |
| 18. | 455-8232 | [1] | BRACKET AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 19. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| | M | | METRIC PART |
