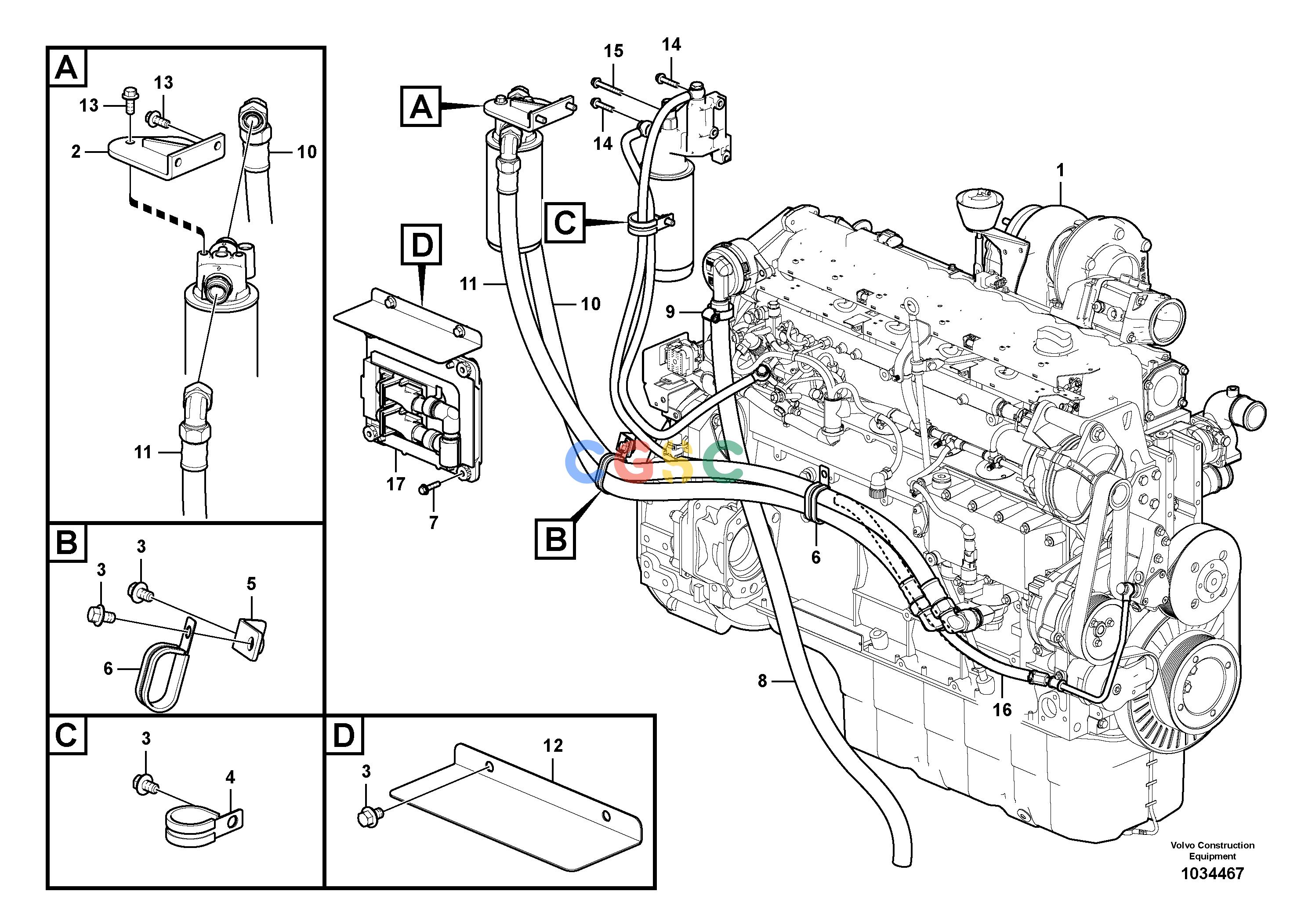

沃尔沃零件查询ECR305C EngineS/N 110001-8285325-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14575315
|
[1] |
Engine
|
|
| 2. |
VOE14526246
|
[1] |
Plate
|
|
| 3. |
VOE946471
|
[5] |
Flange screw
|
|
| 4. |
VOE14515523
|
[1] |
Clip
|
|
| 5. |
VOE14564480
|
[1] |
Bracket
|
|
| 6. |
VOE14507451
|
[2] |
Clip
|
|
| 7. |
VOE946470
|
[4] |
Flange screw
|
|
| 8. |
VOE14881546
|
[1] |
Cooling hose
|
|
| 9. |
VOE943475
|
[1] |
Hose clamp
|
|
| 10. |
VOE14571006
|
[1] |
Hose
|
|
| 11. |
VOE14571005
|
[1] |
Hose
|
S/N 110001-110049
|
| |
VOE14604321
|
[1] |
Hose
|
S/N 110050-
|
| 12. |
VOE14566446
|
[1] |
Plate
|
|
| 13. |
VOE946329
|
[4] |
Flange screw
|
|
| 14. |
VOE13947760
|
[2] |
Screw
|
|
| 15. |
VOE13965180
|
[1] |
Screw
|
|
| 16. |
SA9443-30309
|
[1] |
Hose protection
|
|
| 17. |
VOE60100000
|
[1] |
Electronic unit
|
|
