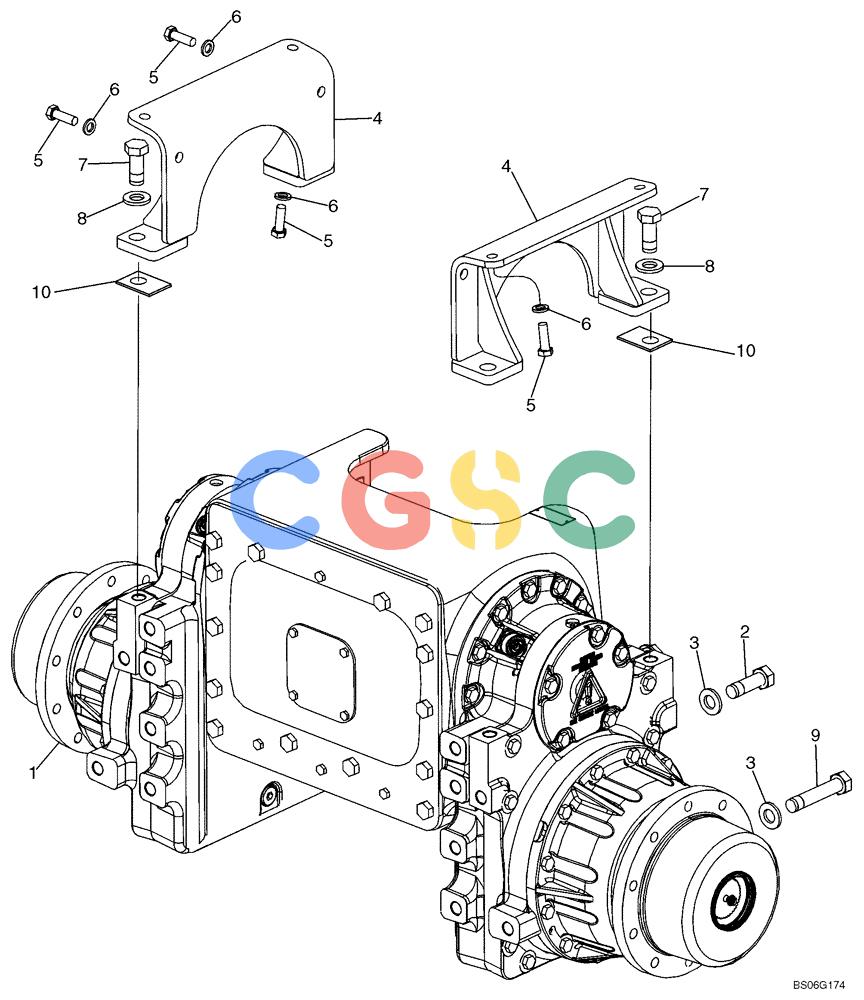

纽荷兰零件查询(D75) - CRAWLER DOZER - NA (1/06-) (06-05) - MOUNTING - FINAL DRIVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 428234A4 | [1] | TRANSMISSION | BURLong Track Models; Incl. 385250A4 Final Drive and Parts on Figure 06-06; Replaces 428234A3 |
| . . | 428236A4 | [1] | TRANSMISSION | BURWide Track or Low Ground Pressure Models; Incl. 385251A4 Final Drive and Parts on Figure 06-06; Replaces 428236A3 |
| 1. | 385250A4 | [2] | DRIVE ASSY. | RACFinal Drive Assembly; 1448 mm (57 inch) Gauge Long Track (LT) Models; See Figure 06-07, 06-08 Superseded by part number: 87724629 |
| . . | 87724629R | [2] | REMAN-AXLE | RACD75 (1/06-), Reman For New P/N 385250A4 Superseded by part number: 87724629 |
| . . | 87724629C | [1] | CORE-AXLE | RACReturn Number |
| 1. | 385251A4 | [2] | DRIVE ASSY. | RACFinal Drive Assembly; 1702 mm (67 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models; See Figure 06-07, 06-08 Superseded by part number: 84490715 |
| . . | 87724630R | [2] | REMAN-FINAL DRIVE | RACD75 (1/06-), Reman for new PN 385251A4 Superseded by part number: 87724630 |
| . . | 87724630C | [1] | CORE-FINAL DRIVE | RACReturn Number |
| 2. | 410-91640 | [6] | BOLT,Hex, 1" - 8 x 2 1/2", Gr 8 | CAS |
| 3. | 496-31106 | [10] | WASHER,1 1/16" x 2" x .219", HDN | CAS Superseded by part number: 87024780 |
| 4. | 86987006 | [2] | SUPPORT ASSY. | CAS |
| 5. | 627-16050 | [8] | BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd | CASUse with Loctite 243 Superseded by part number: 412398 |
| 6. | 896-11016 | [8] | WASHER,17.5mm ID x 30mm OD x 4mm Thk | IH Superseded by part number: 86625266 |
| 10. | 87532203 | [4] | SHIM | BURShim, Tank Frame,60 mm x 80 mm x 1.5 mm ; If Used |
